Mechanical Installation
Mechanical Installation
23
22
The wall or stand hanging the inverter should meet conditions below:
Ÿ Wooden wall with studs spaced at 12, 16, 20, 24, 28 and 32 inch.
Ÿ Solid brick / concrete, or strength equivalent mounting surface.
Ÿ Steel material of sufficient thickness.
Inverter must be supported or strengthened if the strength of wall/stand isn’t
enough. (such as the wall covered by thick layer of decoration)
5.2.2 Installation Carrier Required

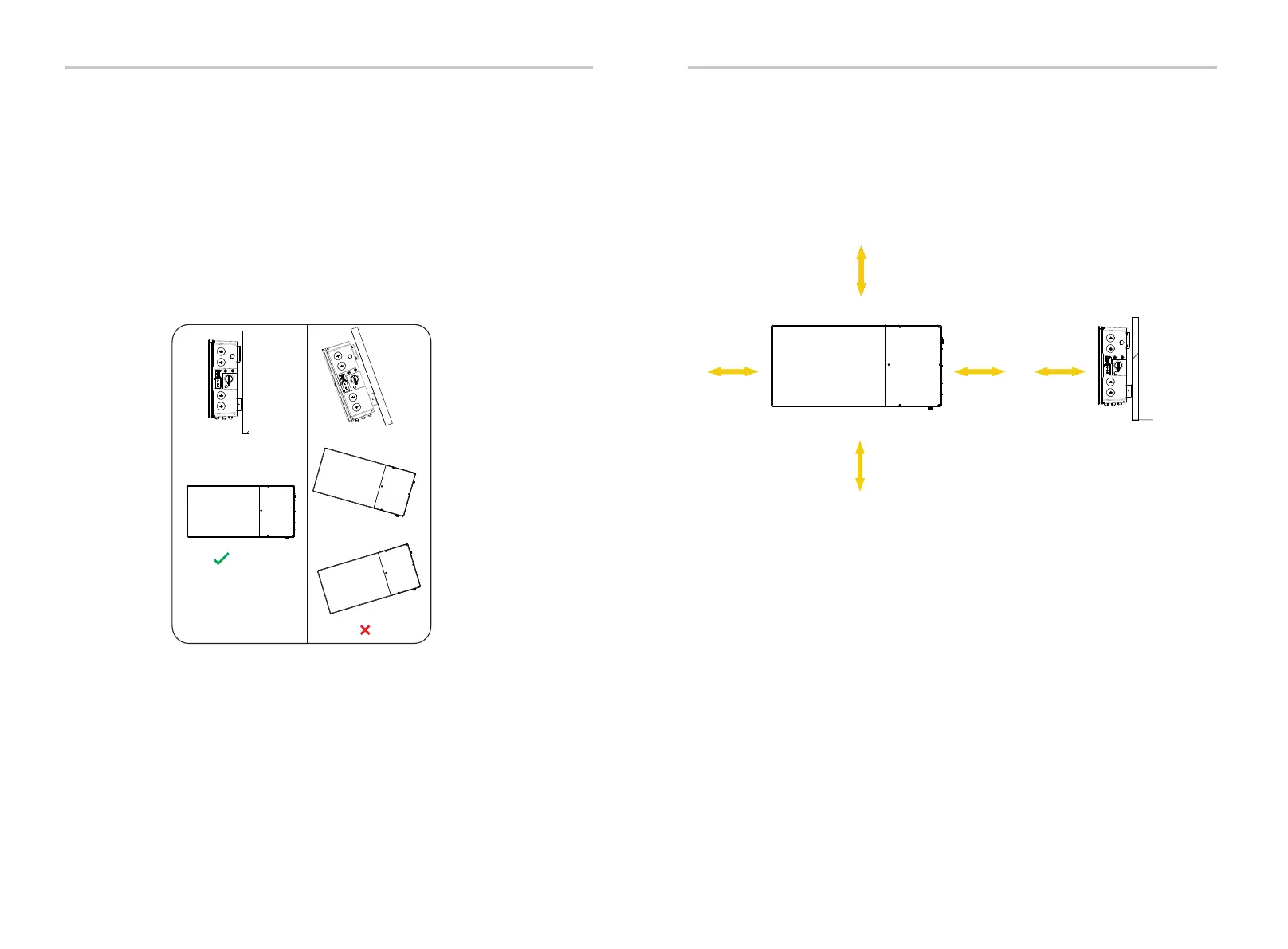

Install the inverter at a maximum back tilt of 5 degrees and avoid forward tilted,
excessive backward tilted, side tilted or upside down.
5.2.3 Installation Angle Required
To ensure good heat dissipation and convenient disassembly, the minimum
clearance around the inverter shall not be less than the following values, as
shown in the following figure. The height above the ground marked below is
recommended assuming that three BATs are mounted. If less or more BAT is
mounted, please lower or increase the height accordingly. (the height of one BAT
is about 300 mm)
5.2.4 Installation Space Required
≥19.68 in. (500 mm)
≥19.68 in.
(500 mm)
≥19.68 in.
(500 mm)
≥19.68 in.
(500 mm)
≥51.18 in.
(1300 mm)
