Panasonic EVERVOLT EVHB-I7 - Appendix A: Epo Connection Steps

EPO
1
8

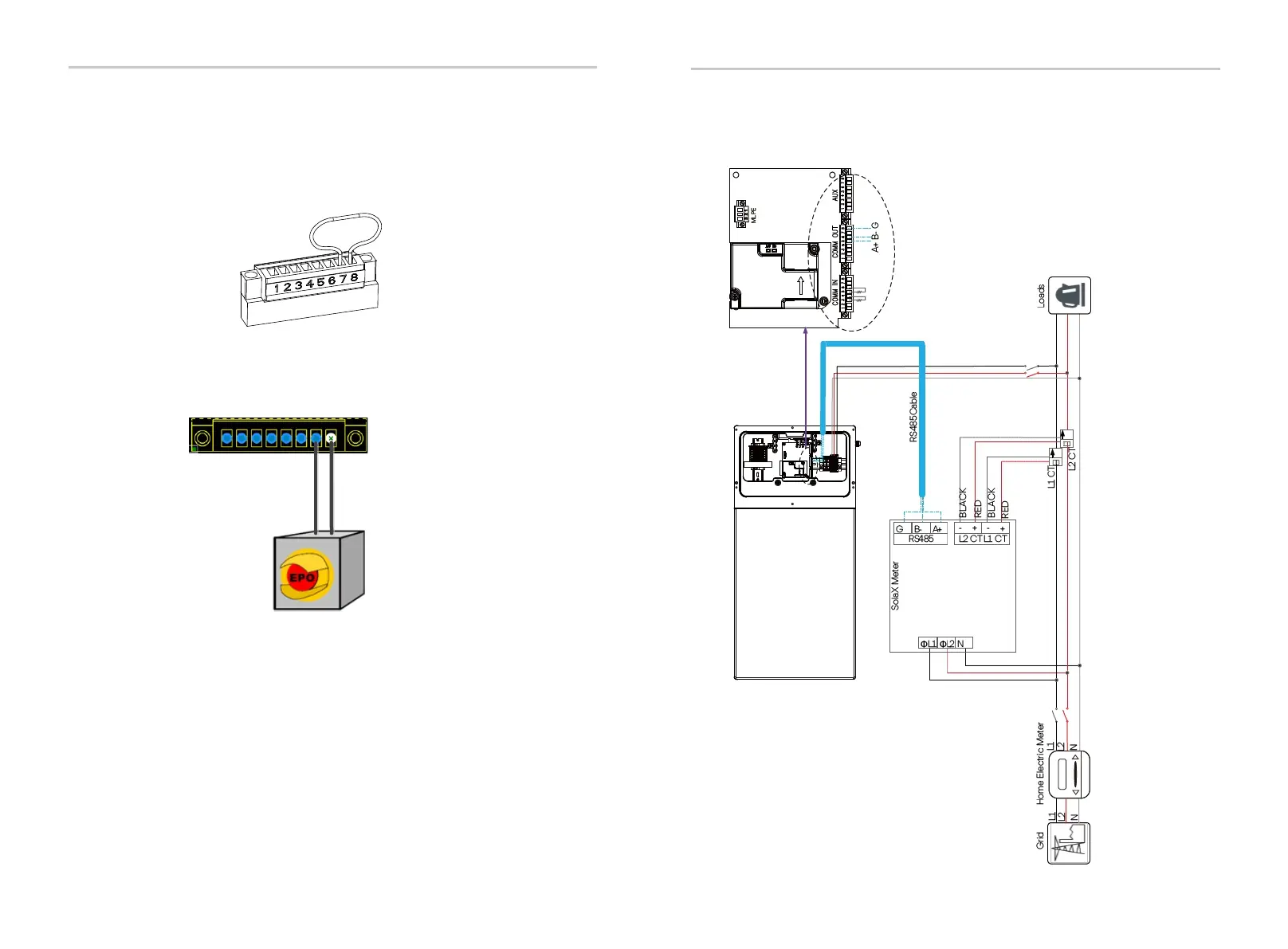

Step 1: Remove the factory-installed jumper from Pin 7 and 8 of the 8-
position “AUX” connector inside the inverter.
Step 2: Use minimum 24 AWG conductors to connect Pin 7 and Pin 8
(labeled “12V” and “STOP_NO”) to a suitable emergency stop switch.
For installing EPO on the inverter, follow the below installation instructions.
Appendix A: EPO Connection Steps
Appendix B: Meter Y Connection Diagram
Appendix A: EPO Connection Steps
Appendix B: Meter Y Connection Diagram
77
76
L1
N
L2
L1
NN
N
L2
485 485 CCableable
RS
Loads
Home Electric Meter
L1 CT
L2 CT
Grid
SolaX Meter
L1 L2 N
G B- A+
RS485
- +
-
+
L2 CT
L1 CT
RED
BLACK
RED
BLACK
B-
A+ G
MLPE
