5.6 Installation Steps
Ø
Introduction of wall bracket

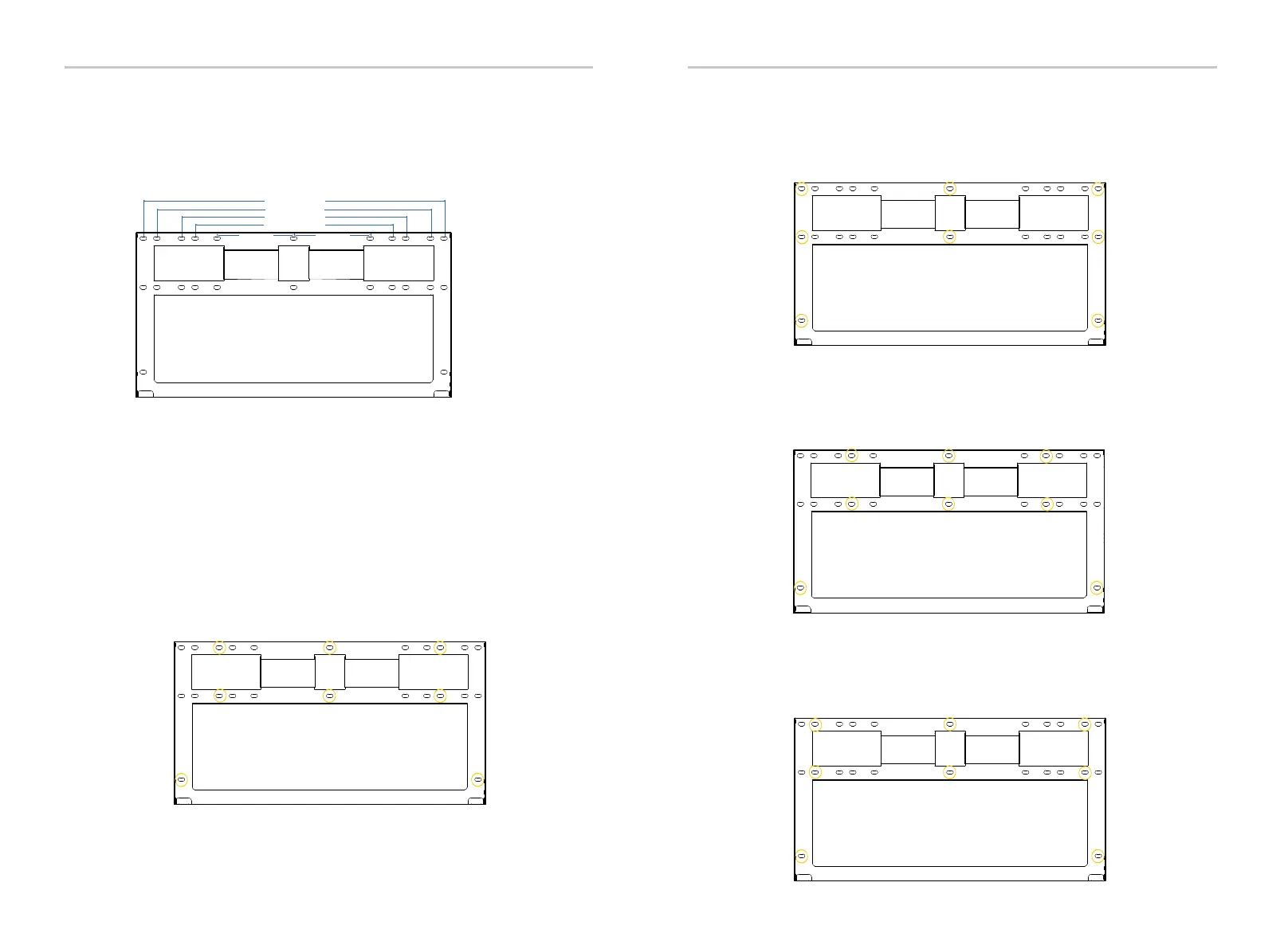

5.6.1 Overview of Bracket and Schemes
20 in/508.00 mm
24 in/609.60 mm
28 in/711.20 mm
32 in/812.80 mm
8 in/207.20 mm
8 in/207.20 mm
WB-32
WB-28
WB-24
WB-20
WB-20
WB-24
WB-28 WB-32
WB-32-E
WB-32-E
WB-C
WB-16
WB-16
Scheme B:
Studs at regular intervals (spaced at 16 and 32 inch):
Punch the holes (WB-32)X4+(WB-C)X2+(WB-32-E)X2
The scheme of hole punch differs from different wall with different
characteristics.
Ø
Introduction of schemes
Scheme A:
Studs at regular intervals (spaced at 12 and 24inch):
Punch the holes (WB-24)X4+(WB-C)X2+(WB-32-E)X2
Steel material of sufficient thickness:
Punch the holes (WB-24)X4+(WB-C)X2+(WB-32-E)X2
Solid concrete or masonry:
Punch the holes (WB-24)X4+(WB-C)X2+(WB-32-E)X2
Scheme C:
Scheme D:
Studs at regular intervals (spaced at 28 inch):
Punch the corresponding holes (WB-28)X4+(WB-C)X2+(WB-32-E)X2
Studs at regular intervals (spaced at 20 inch):
Punch the corresponding holes (WB-20)X4+(WB-C)X2+(WB-32-E)X2
