Mechanical Installation
Mechanical Installation
33
32

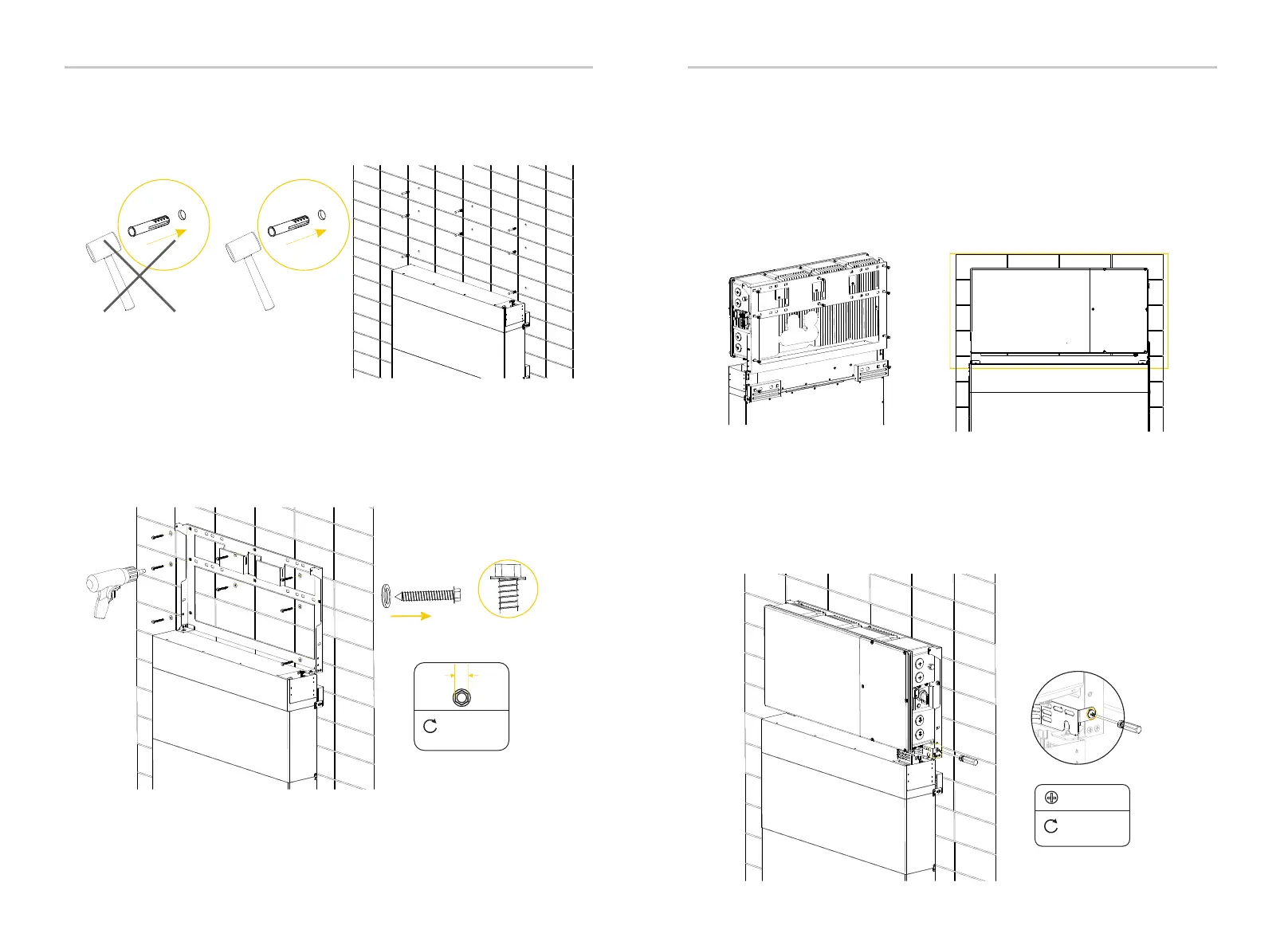

c) Insert the expansion tube into the hole and use rubber hammer to knock
the expansion tube into the wall. (This step is not required in case of wooden
wall.)
e) Align the bracket over the holes and re-fix the bracket on the BMS with
screws. Set the tapping screw through the washer and secure the bracket with
tapping screws. Please hold the bracket firmly to the wall surface before fixing it.
26.5 lbf.in /
3.0 N·m
1
0
m
m
Step 2: Hang and fix the inverter on the bracket
b) Place the cable protective guard on the correct position of battery’s
BMS prior to the wiring connection between inverter and battery and secure it on
the inverter’s bracket with M5 screws;
a) Place the inverter to be seated on the corresponding position of the
bracket. As EVERVOLT Hybrid inverters are heavy, weigh 75 lbs / 34 Kg, it should
be lifted up by two persons and placed carefully onto the bracket. Then adjust the
inverter to be centered on the whole system;
Back view
Front view
M5
8.8 lbf.in /
1.0 N·m
For wooden wall,
this step is not required
For solid concrete wall,
this step is required
To Next Page
