8-pin
Step 1
Strip Length
Conduit
0.24 in / 6 mm
Step 2
24-18 AWG
18-16 AWG
Step 3
Step 4

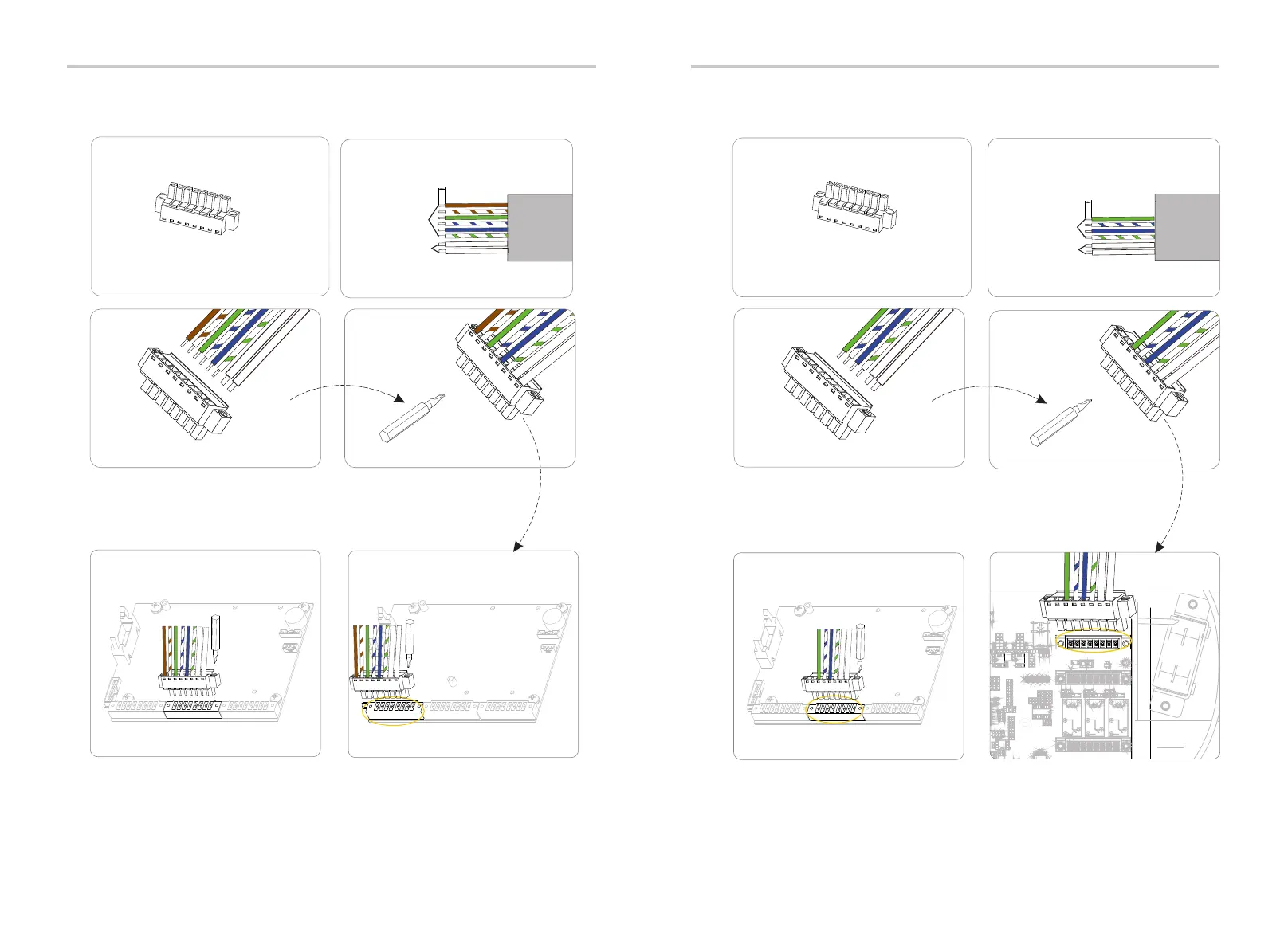

Diagram for communication connection steps between inverters Diagram for communication connection steps between inverter and EV-SB
8-pin
Step 1
Strip Length
Conduit
0.24 in / 6 mm
Step 2
24-18 AWG
18-16 AWG
Step 3
Step 4
Electrical Connection Electrical Connection
57
56
Step 5
On the side of the first inverter
On the side of the second inverter
1
8
1
8
Step 5
On the side of inverter
On the side of EV-SB
Step 5
1
8
Step 5
1
8
