Panasonic FV-30BW2H - Main Body and Component Installation

8
安裝方法
Add silicone to seal around the flange of
product, to make sure that the silicone cover
the entire surface of sponge.
在產品法蘭邊周圍加玻璃膠，並確保玻璃膠覆蓋整
個海綿表面。
Silicone
玻璃膠
Please be sure to take sufficient
protection measure to prevent from
high falling when install window frame.

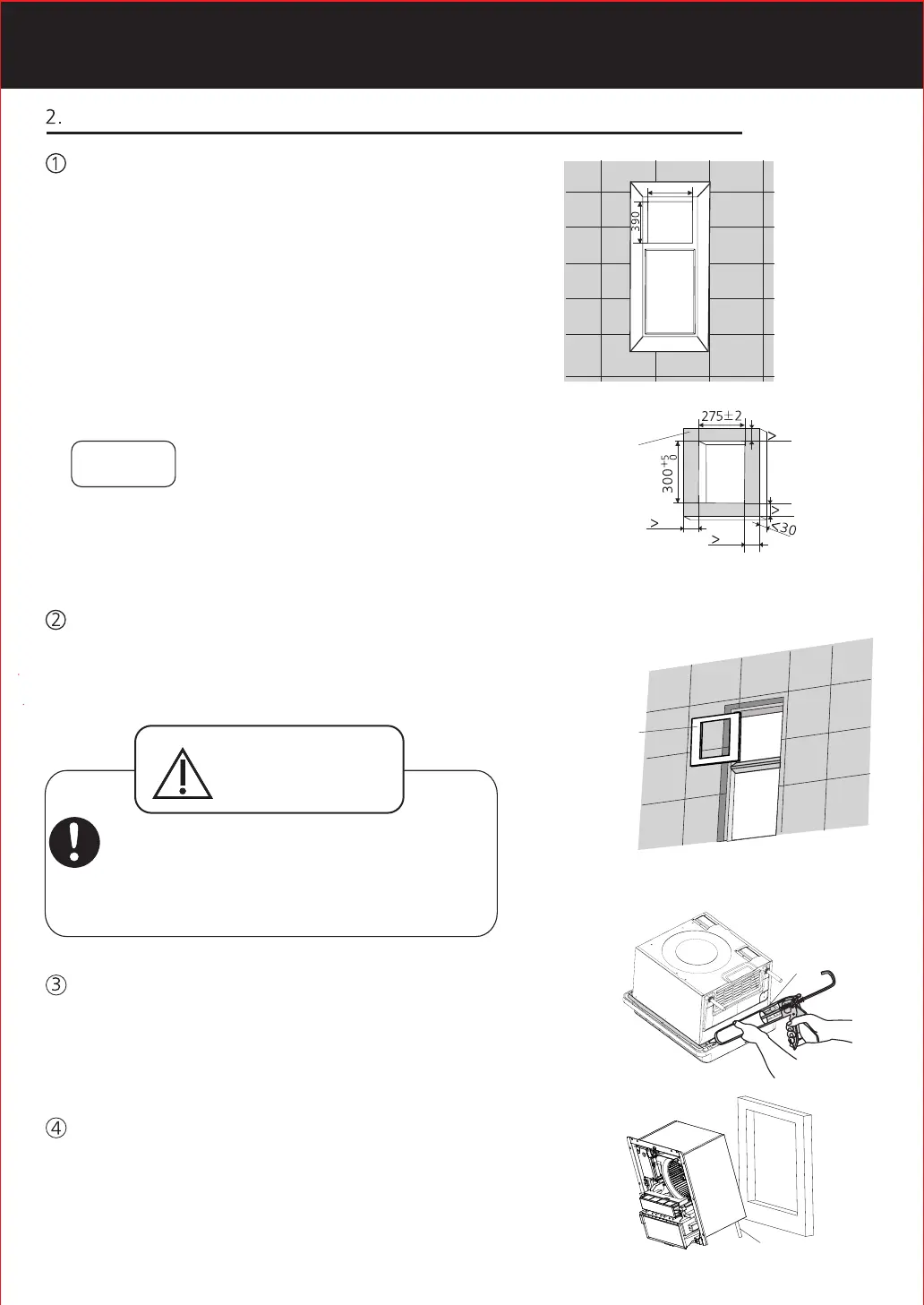

This product is suitable for the installation of the
form of the smallest size as shown in the right
figure. A window frame needs to be made
according to the window and main body
dimensions.
It may be difficult to remove the filter if little
clearance between louver and ceiling.
Recommended main body installation method
Unit: mm
Unit: mm
單位：mm
單位：mm
Window frame material: recommend the use
of aluminum alloy.
Window frame thickness: less than 30 mm
Window frame
(Not included)
Window frame
(Not included)
Fix the window frame onto the original window.
(It must be can bear 5 times weight of the product.)
警告
WARNING
建議的機體安裝方法
窗膽材質：推薦使用鋁合金
將窗膽用可靠方法固定於原有窗框上。
(需能承受產品5倍的重量)
安裝窗膽時，請務必採取足夠的防護措施，
以防窗膽高空掉落。
窗膽厚度：小於30 mm
窗膽(另購)
窗膽(另購)
本產品適用於最小如右圖所示尺寸的窗體安裝，
請根據窗體結構及機體尺寸製作窗膽。
產品與天花板之間要確保有足夠的空間，否則
會導致產品過濾網拆卸困難。
提示事項
Notice
HOW TO INSTALL
360
25
40
40
60
Please put the lower part of the product into the
window sill first when it is installed, which to make
sure the drain does not fall off.
將機體安裝到窗膽時，先將機體下部放入窗膽并
確保排水管沒有脫落。
Drain
排水管
