Panasonic GT02

8

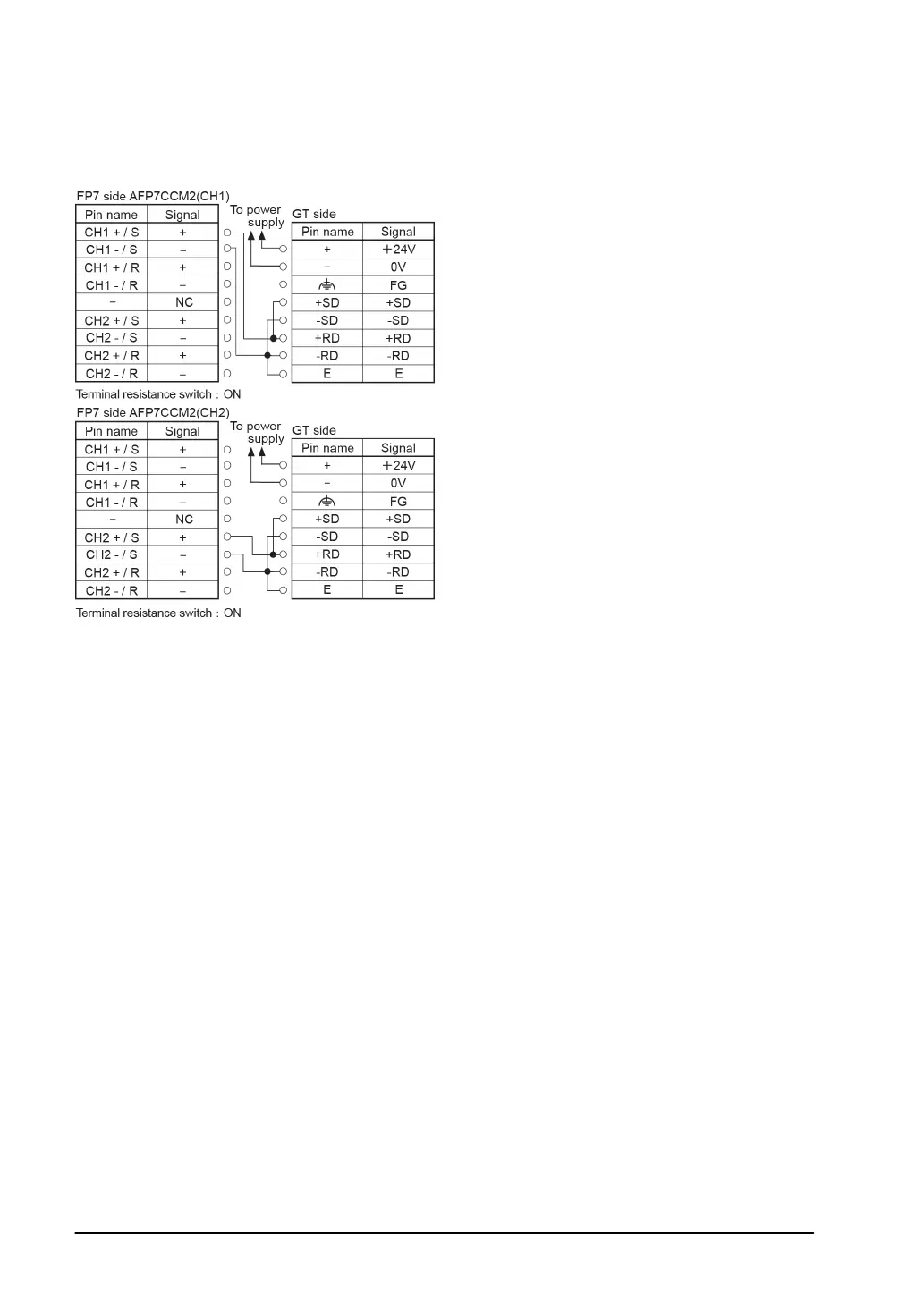

Wiring between FP7 communication cassette AFP7CCM2 (RS-422/RS-485 2-ch insulated type)
and GT series (RS-422/RS-485 type) (RS-485 connection)
- 1:1 connection
Note) As for the PLC multiple and GT link function connections, refer to the connection diagrams in the
previous page.
