9 Measurements and Adjustments
9.1. Electric Adjustment
• Adjustment method is different from a conventional High definition video camera.
• An exclusive jig and PC (including software for adjustment “Tatsujin”) are necessary for electric adjustment.
• A USB driver for service is necessary to communication with PC.
• Connection method of the main unit and an exclusive adjustment jig as follows
9.1.1. Adjustment Procedure
• Connect the main unit to PC with USB.
The adjustment instruction is available at "Software download" on the "Support Information from NWBG/VDBG-AVC" web-site in
"TSN System".

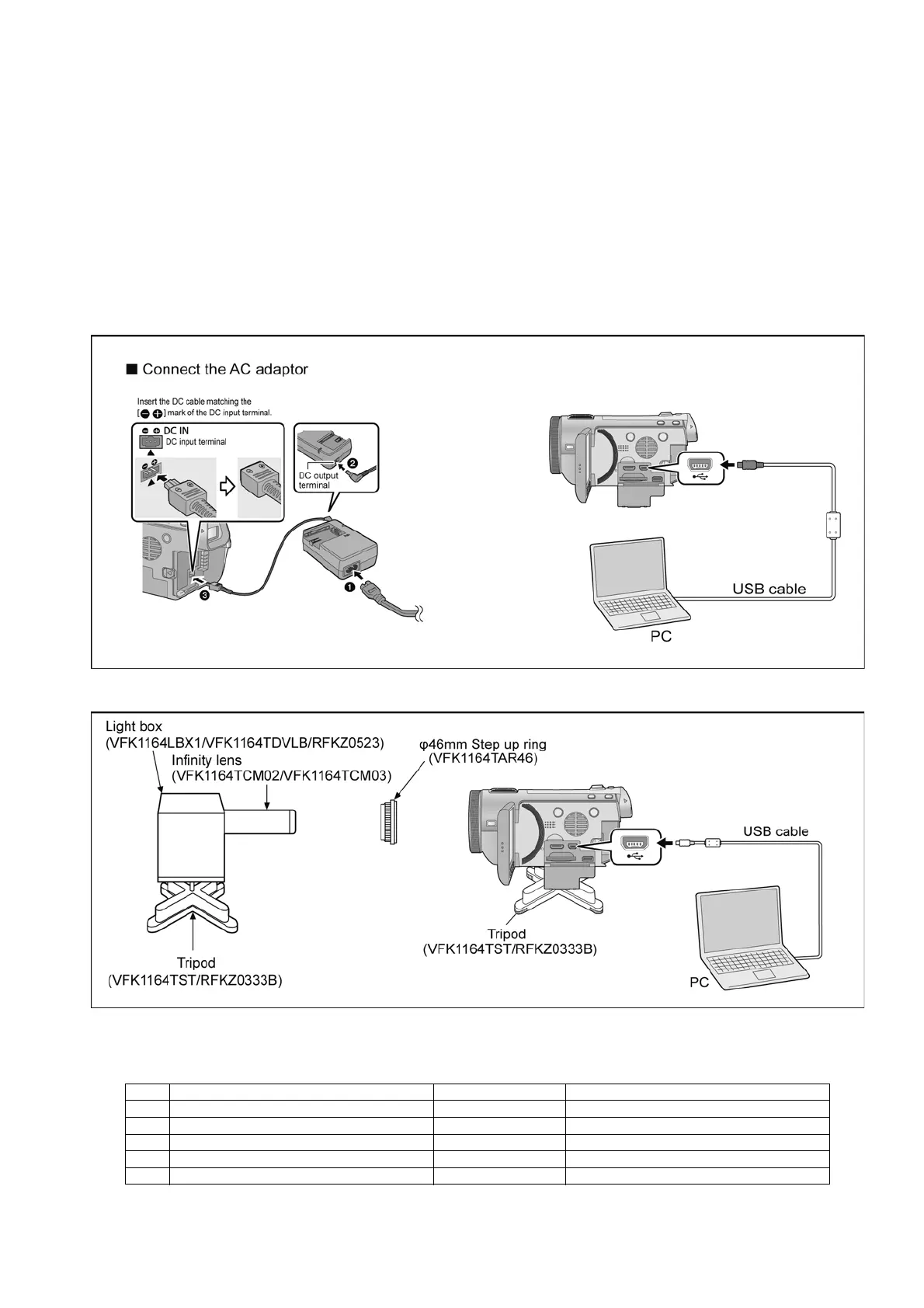

Figure of connection
Figure of image when adjustment
Part Number of jig
• Only a necessary jig mentions it in setup of electric adjustment.
No. Part Name Part Number Remarks
1 PC ------
2 AC Adaptor ------
3 USB Cable ------
4 46mm Step Up Ring VFK1164TAR46
5 Adjustment Software (Tatsujin) ------
