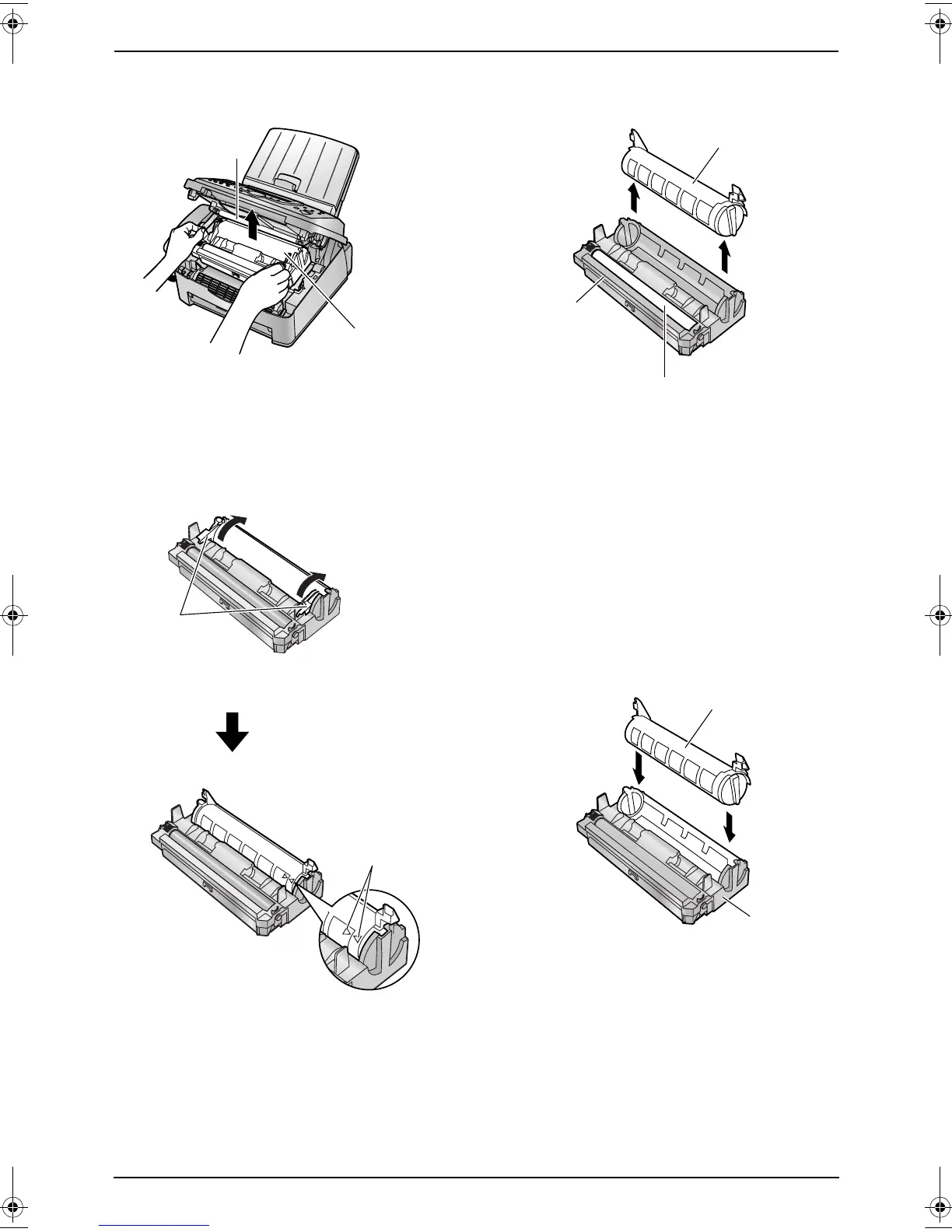

drum unit. Remove the drum and toner unit
(1) by holding the two tabs.
L Do not touch the transfer roller (2).
L If you replace the toner cartridge and the
drum unit at the same time, skip to step 7.
5 Turn the two levers (1) on the used toner
cartridge firmly, until the triangles (2) match.
6 Remove the used cartridge (1) from the
drum unit (2).
L The toner may stick to the cartridge and
the drum unit. Be careful when handling.
See page 4 for details.
L Do not drop the toner on the green drum
surface (3).
L Put the used toner cartridge into the
protection bag.
7 If you replace the drum unit at the same time,
remove the new drum unit from the
protection bag.
Place the new toner cartridge (1) into the
drum unit (2) vertically.
1
2
1
2
1
2
3
1
2
