7. Help
59

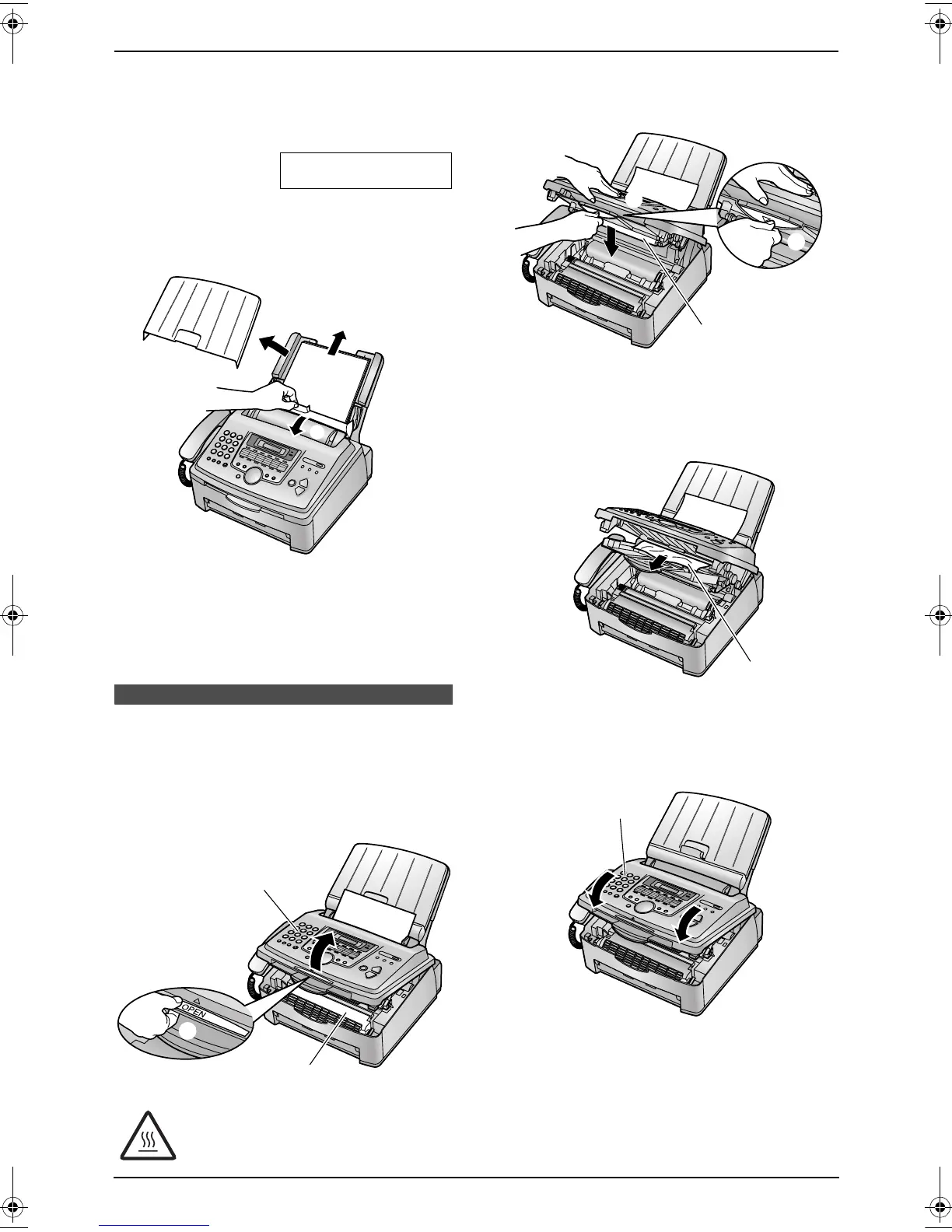

7.5.2 When the recording paper
is not fed into the unit properly
The display will show the following.
FAILED PICK UP
1 Pull the tension plate forward (1), then
remove the paper tray cover (2). Remove
the recording paper (3).
2 Re-insert the recording paper. Attach the
paper tray cover, then push back the tension
plate (see steps 5 to 6 on page 17).
L Before re-inserting, make sure to fan and
straighten the recording paper.
7.6 Document jams -
sending
1 Lift open the front cover (1), holding OPEN
(2).
2 Hold the centre part of the front cover (1),
and pull open the inner cover (2).
L Do not touch the transfer roller (3).
3 Remove the jammed document carefully
(1).
4 Push back the inner cover.
5 Close the front cover (1) by pushing down
on both sides, until locked.
Caution:
The fuser unit (3) gets hot. Do not
touch it.
2
1
3
1
2
3
3
2
1
1
1
FL611E-PFQX2133ZA-en.book Page 59 Friday, January 28, 2005 11:12 AM
