7. Help
57

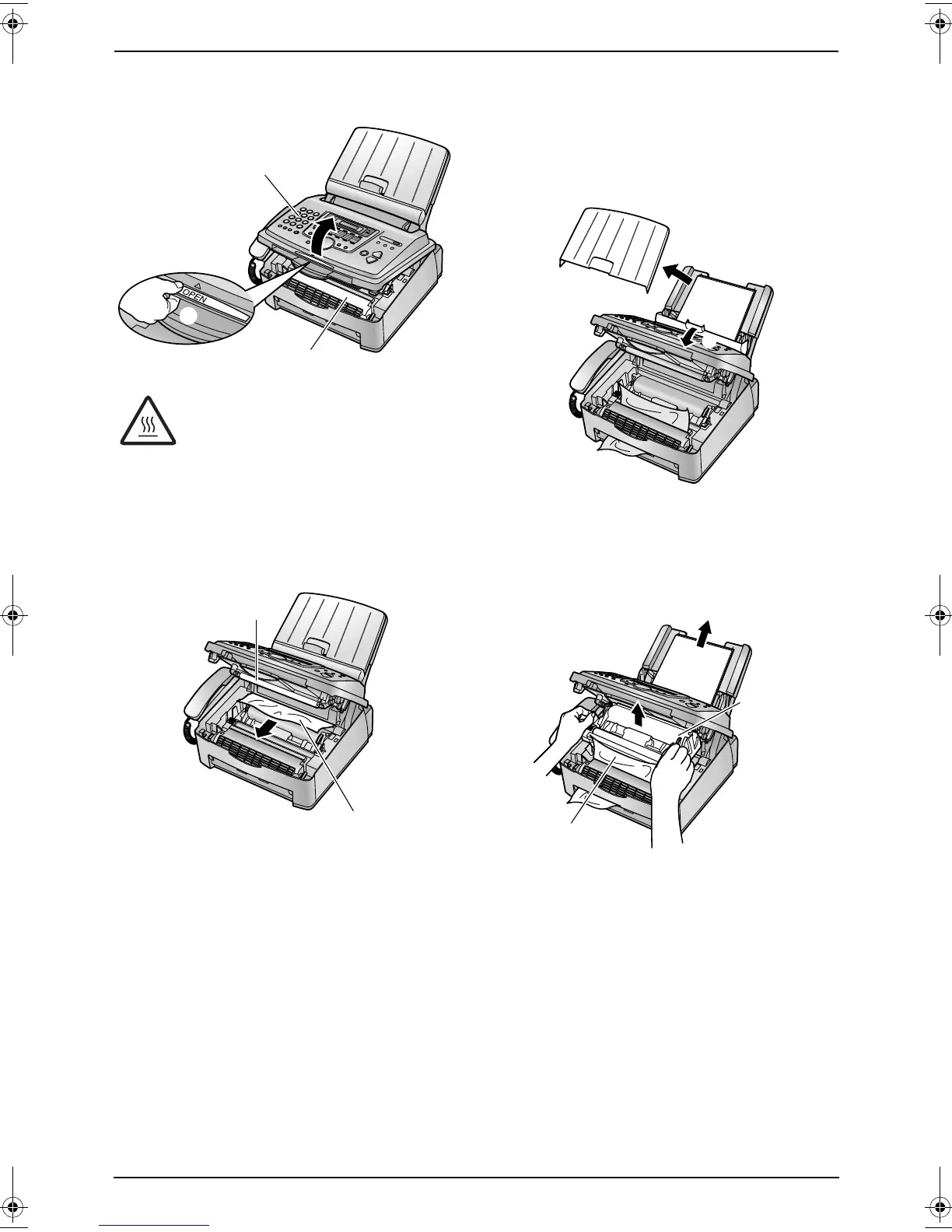

1 Lift open the front cover (1), holding OPEN
(2).
2 Remove the jammed paper.
When the recording paper has jammed
near the drum and toner unit:
Remove the jammed paper (1) carefully by
pulling it toward you.
L Do not touch the transfer roller (2).
When the recording paper has jammed
near the recording paper exit:
1. Pull the tension plate forward (1), then
remove the paper tray cover (2).
2. Remove the recording paper (1), then
remove the drum and toner unit (2) to
allow the jammed paper (3) to pull free
from the rear cabinet.
Caution:
The fuser unit (3) gets hot. Do not
touch it.
1
2
3
1
2
1
2
1
2
3
