Panasonic KX-NS0154

56
KX-NS0154

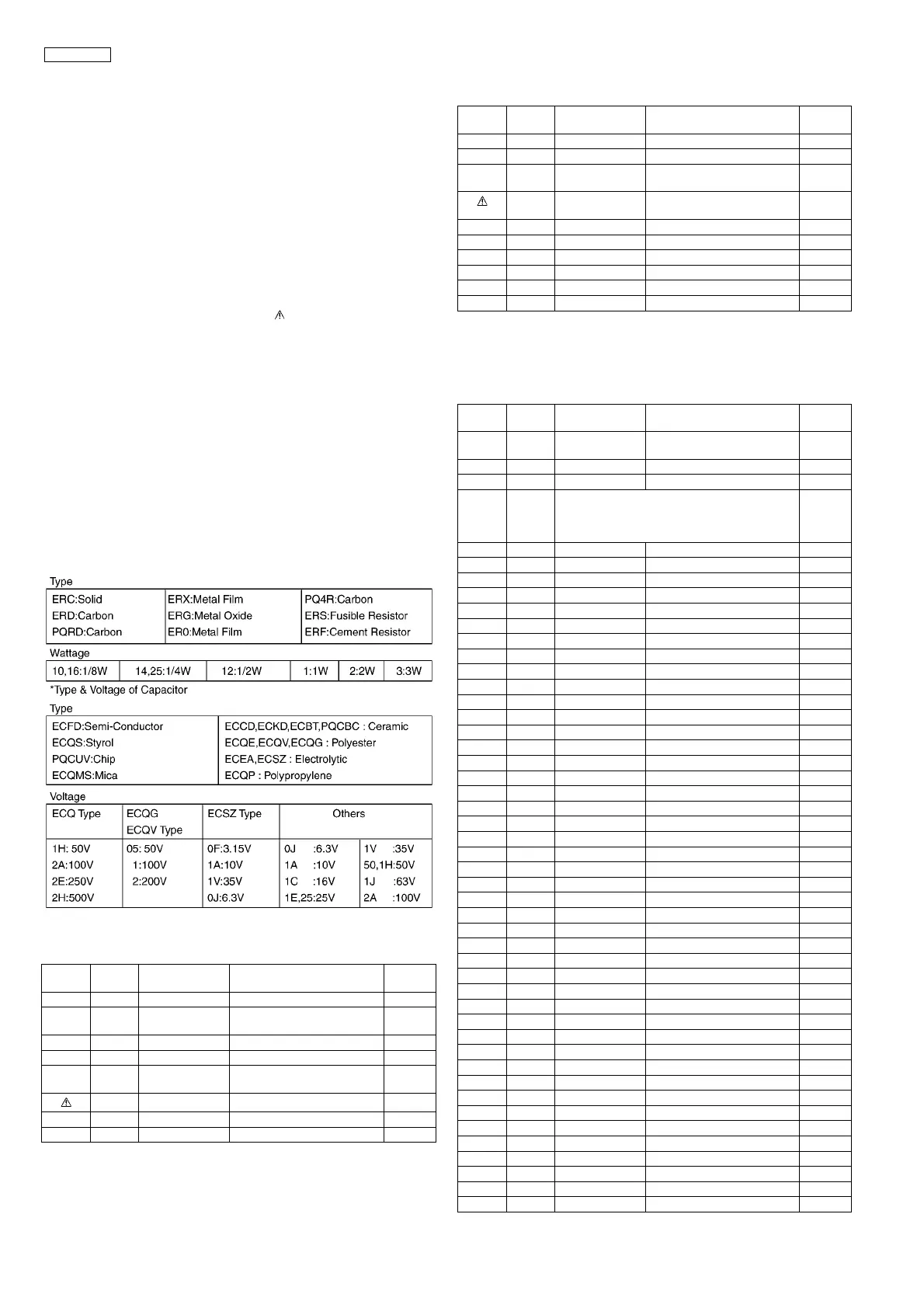

16.4. Replacement Parts List
Note:
1. RTL (Retention Time Limited)
The marking (RTL) indicates that the Retention Time is
limited for this item.
After the discontinuation of this assembly in production,
the item will continue to be available for a specific period
of time. The retention period of availability depends on
the type of assembly and the laws governing parts and
product retention. At the end of this period, the assembly
will no longer be available.
2. Important safety notice
Components identified by the mark indicates special
characteristics important for safety. When replacing any
of these components, only use specified manufacture's
parts.
3. The S mark means the part is one of some identical parts.
For that reason, it may be different from the installed part.
4. ISO code (Example: ABS-94HB) of the remarks column
shows quality of the material and a flame resisting grade
about plastics.
5. RESISTORS & CAPACITORS
Unless otherwise specified;
All resistors are in ohms (), k=1000, M=1000k
All capacitors are in MICRO FARADS (F), p=F
*Type & Wattage of Resistor
16.4.1. Cabinet and Electrical Parts
16.4.2. Accessory and Packing Materials
16.4.3. Main Boards Parts
Note:
(1*) Backside of this IC has a ground plate.
(2*) Supplied IC is Flat Package Type.
Safety Ref.
No.
Part No. Part Name & Description Remarks
1 PFSA1084Z ANTENNA
2 PNKM1215U1 UPPER CABINET PS UL94
VO
3 PSGP1113Y1 LED LENS
4 PQHA10023Z FOOT RUBBER
5 PNKF1156Y1 LOWER CABINET PS UL94
VO
6 PNYEAS0154M NAME PLATE
A XTW26+14PFJ7 TAPPING SCREW
Safety Ref.
No.
Part No. Part Name & Description Remarks
A1 PQHE5004Y SCREW
A2 XWG35FJ W AS HE R
A3 PSKL1032Y4 WALL MOUNTING
ATTACHMENT
A4 PNQW4179Z LEAFLET,Important
Information Guide
P1 XZB05X08A03 PROTECTION COVER
P2 PSPK2414ZA G IF T B O X
P3 XZB23X35A04 PROTECTION COVER
P4 PNYEBS0154M SET LABEL
P5 PNPP1099Z PROTECTION COVER
Safety Ref.
No.
Part No
.
Part Name & Description Remarks
PCB1 PNWPNS0154M MAIN P.C.BOARD ASS'Y
(RTL)
(ICS)
IC100
IC101
IC102
IC501
IC
There is no parts supply of only IC.
Please order PCB1.
IC201 C0EBE0000444 IC
IC301 C1ZBZ0003969 IC
IC302 C1CB00004203 IC
IC303 C1CB00003680 IC
IC502 PNWIAS0154M I C
IC503 C2HBCY000134 IC
IC504 PNWIBS0154M IC
IC701 C0DBGYY00905 IC
IC702 C0DBAYY00932 IC
IC703 C0DBAYY00932 IC
IC704 C0ABAA000068 IC
(TRANSISTORS)
Q101 PQVTDTC123E TRANSISTOR(SI) S
Q102 PQVTDTC123E TRAN
SISTOR(SI)
S
Q103 PQVTDTC123E TRANSISTOR(SI) S
Q104 B1HBCFA00028 TRANSISTOR(SI)
Q302 B1CFNN000001 TRANSISTOR(SI)
(DIODES)
D101 B3ABB0000296 DIODE(SI)
D102 B3AAB0000347 DIODE(SI)
D104 B3AEB0000153 DIODE(SI)
D301 DB2X41400L DIODE(SI)
D
302 B0JCML000007 DIODE(SI)
D304 B0BC06800004 DIODE(SI)
D305 B0EDER000009 DIODE(SI)
D306 B0EDER000009 DIODE(SI)
D701 B0JCPL000004 DIODE(SI)
D702 B0JCNE000008 DIODE(SI)
D703 B0JCNE000008 DIODE(SI)
(FILTER)
D501 EZAEG2A50AX CERAMIC FILTER
D502 EZAEG2A50AX CERAMIC FILTER
L101 J0JBC0000107 IC FILTER
L202 J0JBC0000107 IC FILTER
L203 J0JBC0000107 IC FILTER
L204 J0JBC0000107 IC FILTER
L205 J0JBC0000107 IC FILTER
L206 J0JBC0000107 IC FILTER
L207 J0JBC0000107
IC FILTER
L
208 J0JBC0000107 IC FILTER
L210 J0JBC0000107 IC FILTER
