7 Connecting a Cell Station to the PBX
Connection Examples for KX-TDA15
Refer to the following examples to connect a CS to the PBX.

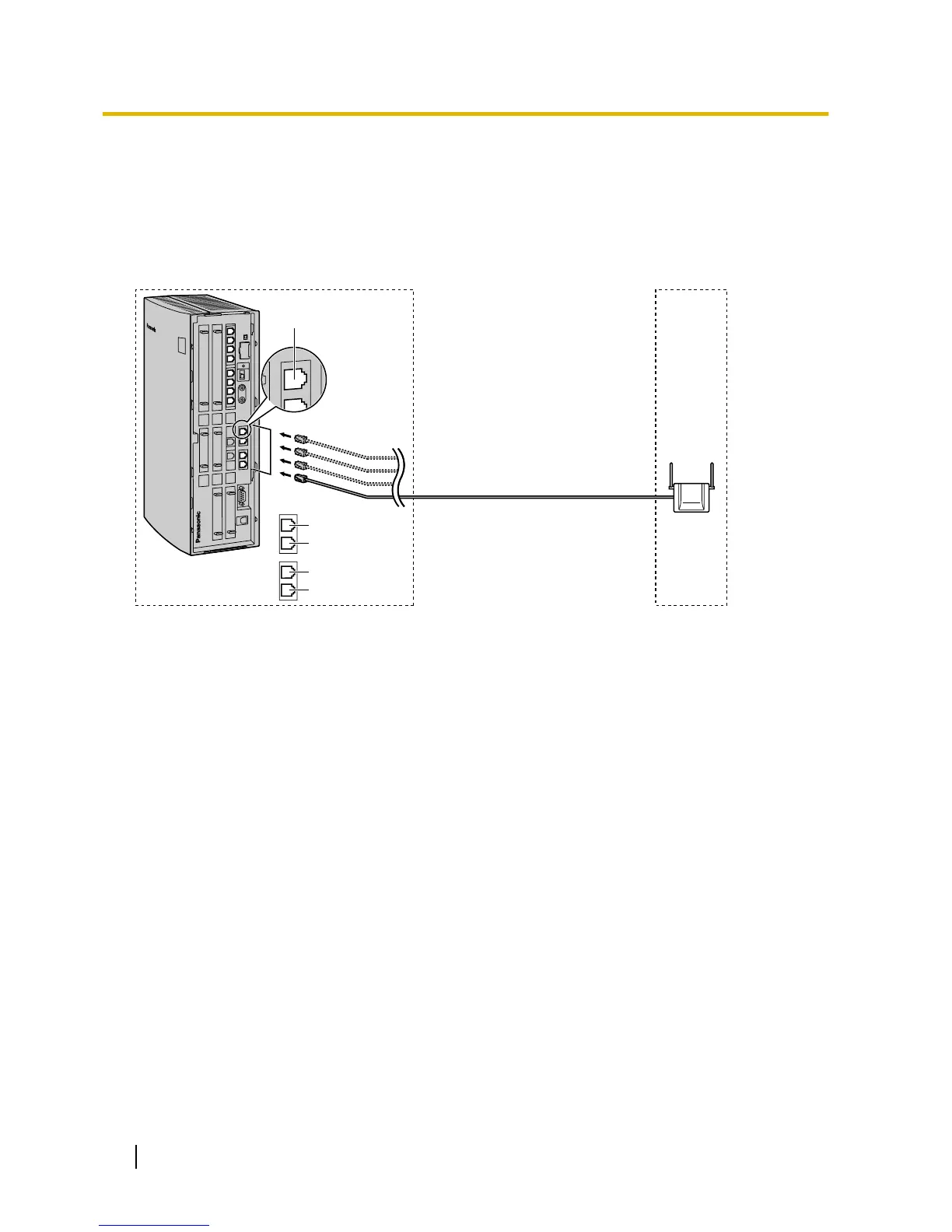

KX-TDA0158 connecting to KX-TDA15
Cable Maximum Distance
ø 0.4 mm: 222 m
ø 0.5 mm: 347 m
ø 0.6 mm: 500 m
CAT 5: 347 m
Super Hybrid Port
Port No.
1
2
4
3
30 Quick Installation Guide
7 Connecting a Cell Station to the PBX
