Connection Examples for KX-NCP500/KX-NCP1000
Refer to the following examples to connect a CS to the PBX.

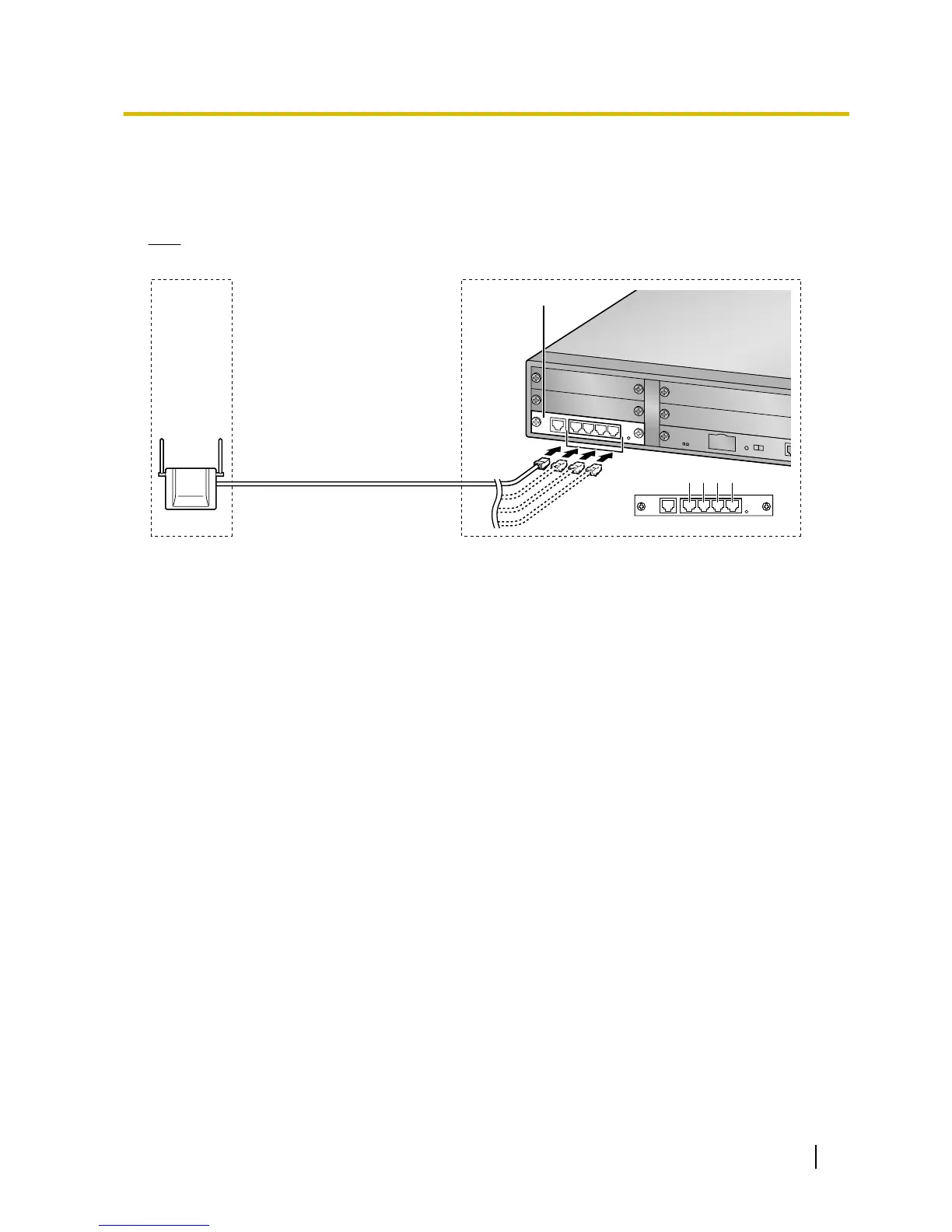

KX-TDA0158 connecting to KX-NCP500/KX-NCP1000
Note
The illustration of the PBX is based on the KX-NCP500
.
Port No.: 1 2 3 4
DHLC4 Card
Maximum Distance
222 m
347 m
500 m
347 m
Cable
ø 0.4 mm:
ø 0.5 mm:
ø 0.6 mm:
CAT 5:
Quick Installation Guide 43
7 Connecting a Cell Station to the PBX
