Panasonic KX-TDA100

Note
Storing the scan data will clear all directory data.

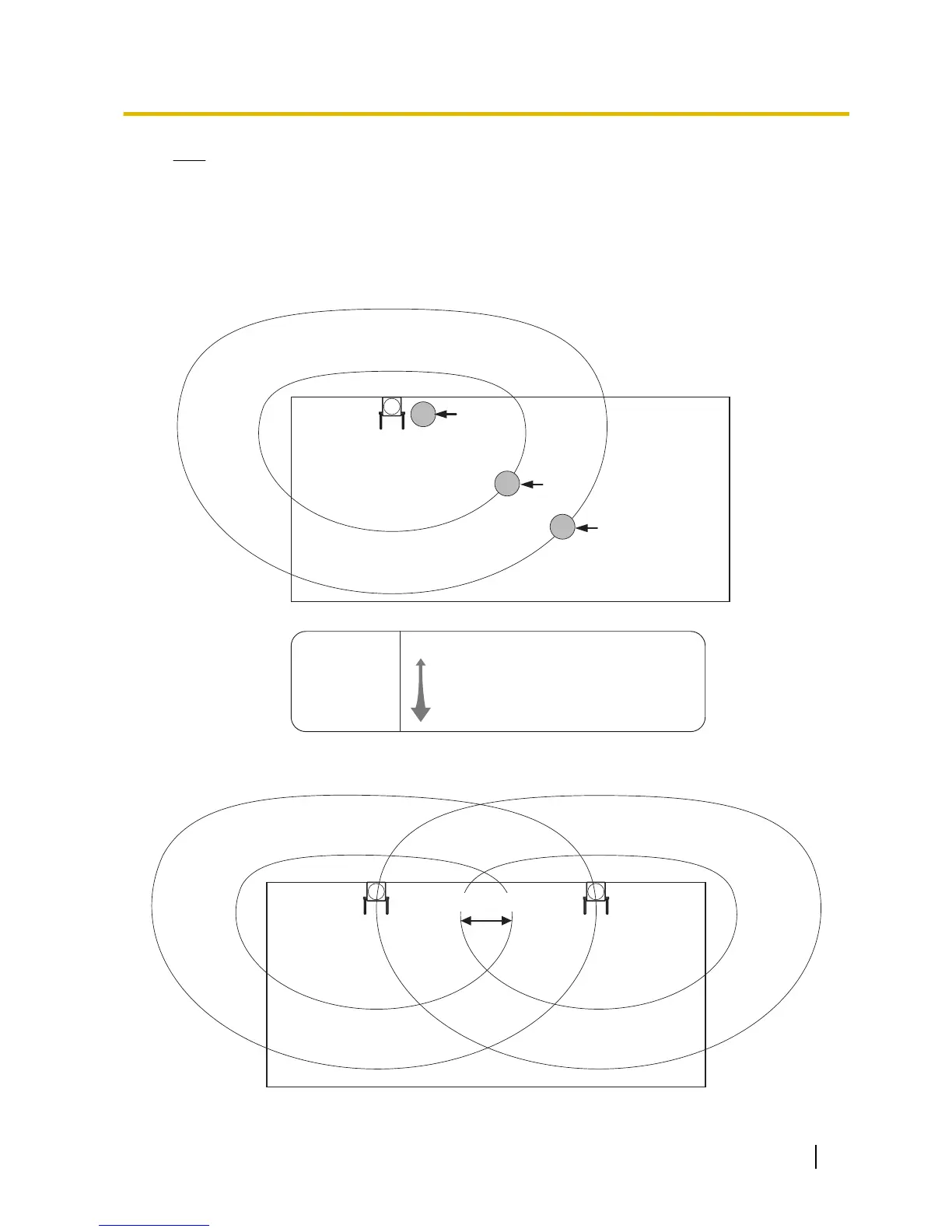

2. Measure the radio signal strength by moving towards and away from the CS.
a. Move to the CS until the radio signal strength level becomes "12".
b. Move away from
the CS and identify the CS coverage area within which the radio signal strength level
is greater than "8". Draw the area on the map.
c. Move away from the CS and identify the CS coverage area within which the radio signal strength level
is greater than "3". Draw the area on the map.
Channel no. 0
PS
PS
PS
CH0
L:03
CH0
L:12
Radio Signal Strength Levels
Out of range
Receives noise easily or disconnects
May receive noise
Good
Better
Level: 00
Level: 01 to 02
Level: 03 to 07
Level: 08 to 10
Level: 11 to 12
CH0
L:08
3. Repeat steps 1 and 2 for other CSs, and relocate the CSs when necessary.
a. Overlap adjacent CS coverage areas where the radio signal strength level is "8" by 5 m to 10 m.
5 m to 10 m
Channel no. 0 Channel no. 1
Installation Manual 165
2.8.5 Site Survey Using the KX-TCA255/KX-TCA256/KX-TCA355/KX-TD7590
