Panasonic KX-TG9333

Usefullnformafion
Available for:
KX-TG9332/KX-TG9333/
KX-TG9334/KX-TG9342/
KX-TG9343/KX-TG9344
Sill 1§
Charger

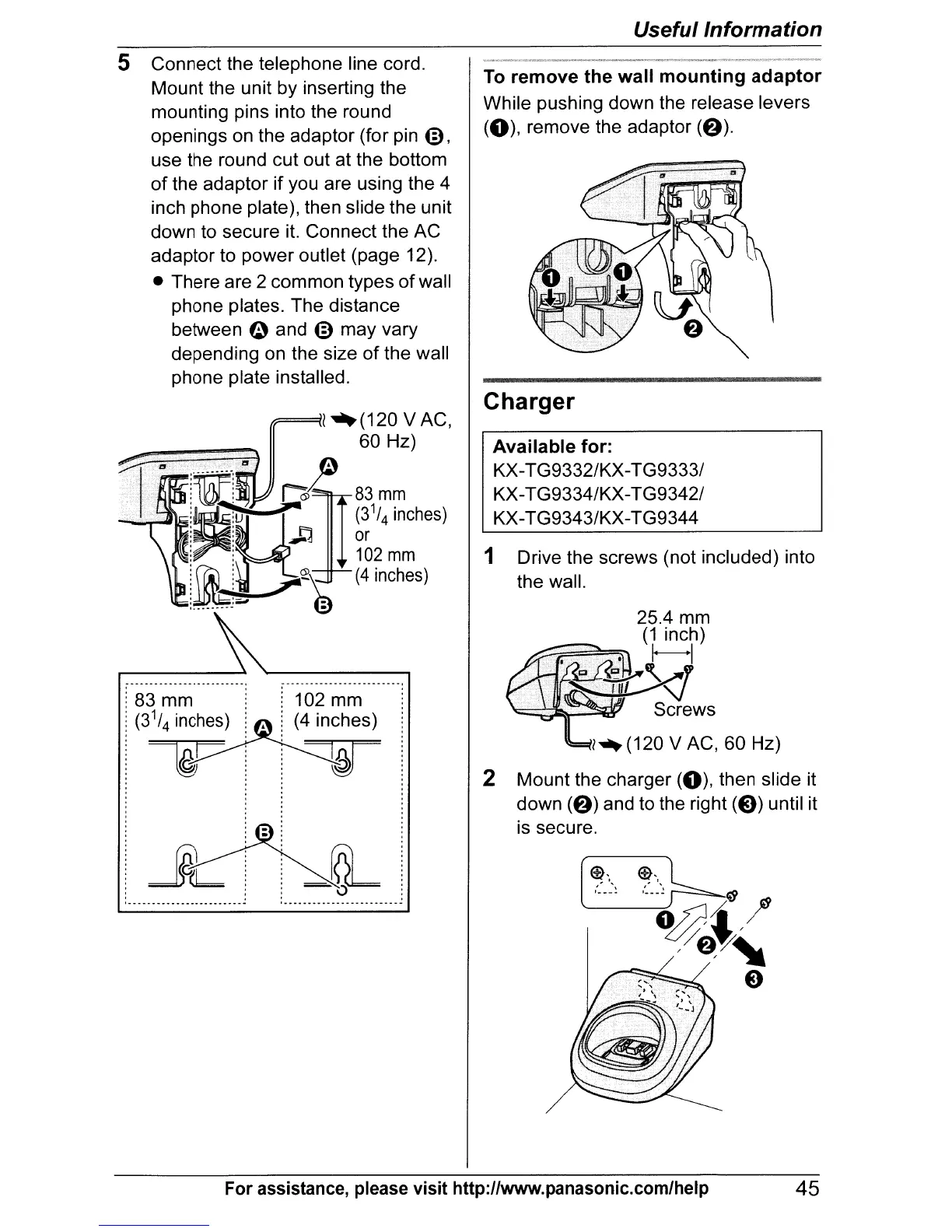

To remove the wall mounting adaptor
While pushing down the release levers
(0), remove the adaptor (8)·
2 Mount the charger (0), then slide it
down
(8) and to the right (8) until it
is secure.
1 Drive the screws (not included) into
the wall.
83mm ,: 102mm
(31/4~eS)
5 Connect the telephone line cord.
Mount the unit by inserting the
mounting pins into the round
openings on the adaptor (for pin
@,
use the round cut out at the bottom
of the adaptor if you are using the 4
inch phone plate), then slide the unit
down to secure it. Connect the AC
adaptor to power outlet (page 12).
• There are 2 common types
of wall
phone plates. The distance
between
0 and @ may vary
depending on the size of the wall
phone plate installed.
For assistance, please visit http://www.panasonic.com/help 45
