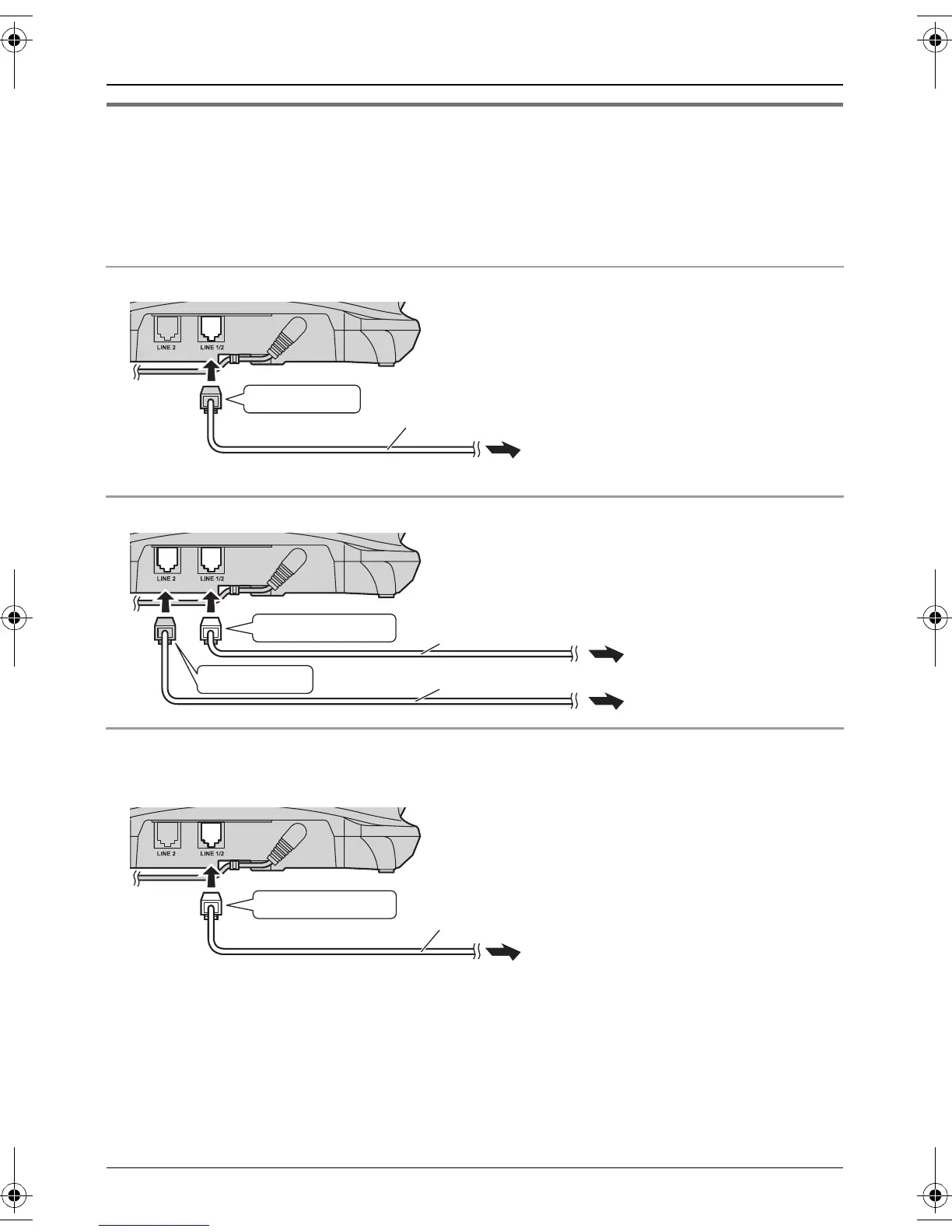

Connecting the telephone line cord
Refer to one of the following methods depending on your situation:
– To connect to a 2-line telephone jack: page 13
– To connect to 2 single-line telephone jacks: page 13
– If you use the unit as a single-line telephone only: page 13
Connect the telephone line cord until it clicks into the base unit and telephone line jack.
To connect to a 2-line telephone jack
To connect to 2 single-line telephone jacks
If you use the unit as a single-line telephone only
Be sure to connect the telephone line cord to LINE 1/2 to allow usage of the unit during a power failure
(page 12). Change the line selection mode from “Auto” to “Line1” (page 17).
Note:
L “Check tel line 2” is displayed on the unit. To erase it, see page 47.
4-wire cord
To 2-line telephone jack (RJ14C)
“GREEN” plug
4-wire cord
Line 2
Line 1
2-wire cord
To single-line
telephone jacks (RJ11C)
“GREEN” plug
“Transparent” plug
2-wire cord
To single-line telephone jack (RJ11C)
“Transparent” plug
