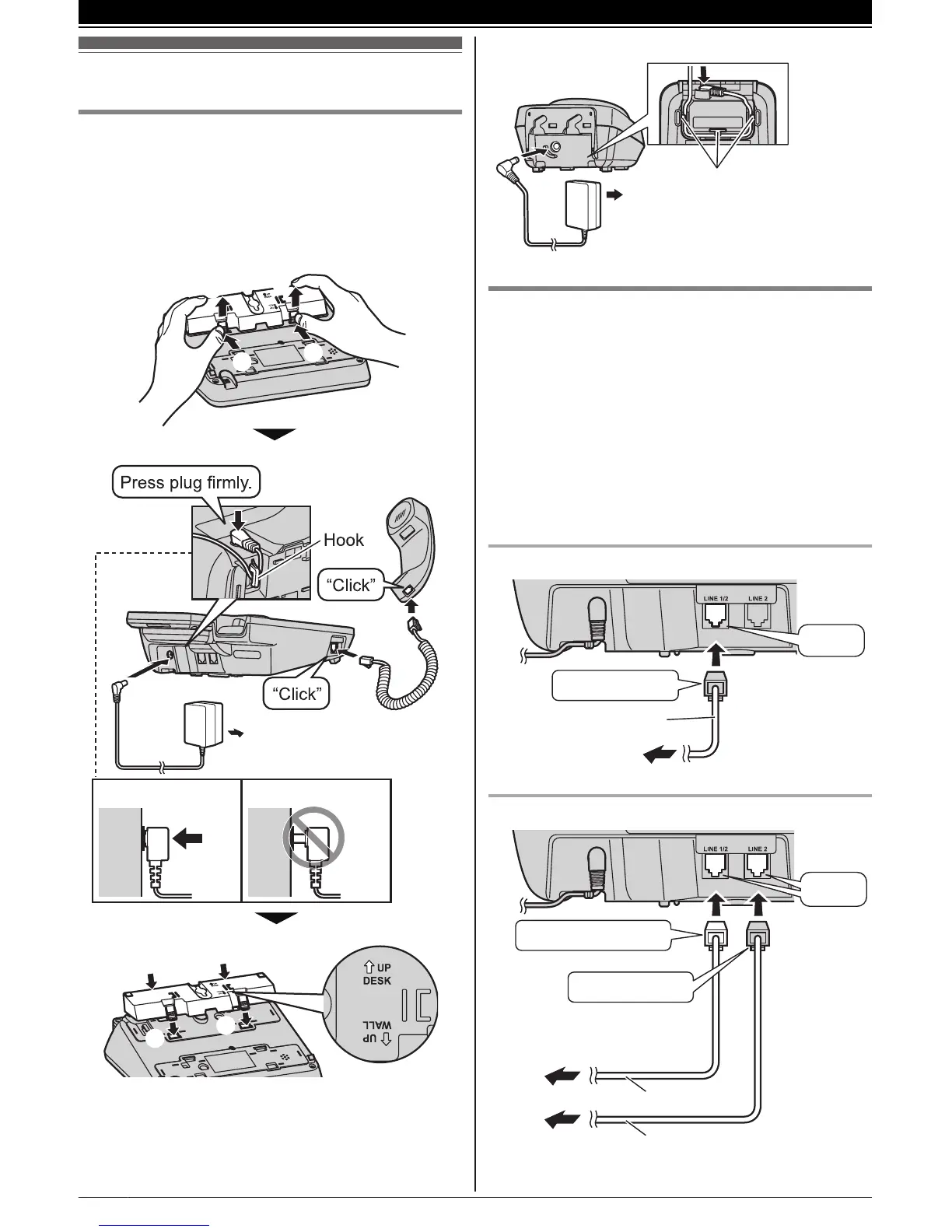

Setting up
Connecting the AC adaptor/corded
h
andset
R Use only the supplied Panasonic AC adaptor
PQLV219.
n Base unit
A
B
B
A
(120 V AC, 60 Hz)
Correct Wrong
A
A
B
B
R T
he words “UP DESK” should be facing up.
n C
harger
(120 V AC, 60 Hz)
Hooks
Connecting the telephone line cord
R
efer to one of the following methods depending
on your situation:
– To connect to a 2-line telephone jack: page 8
– To connect to 2 single-line telephone jacks:
page 8
– If you use the unit as a single-line telephone
only: page 9
Connect the telephone line cord until it clicks into
the base unit and telephone line jack.
To connect to a 2-line telephone jack
4-wire cord
To 2-line telephone
j
ack (RJ14C)
“GREEN” plug
“Click”
To connect to 2 single-line telephone jacks
To single-line
telephone jacks (RJ11C)
4-wire cord
“GREEN” plug
“Transparent” plug
2-wire cord
Line 1
Line 2
“Click”
8
