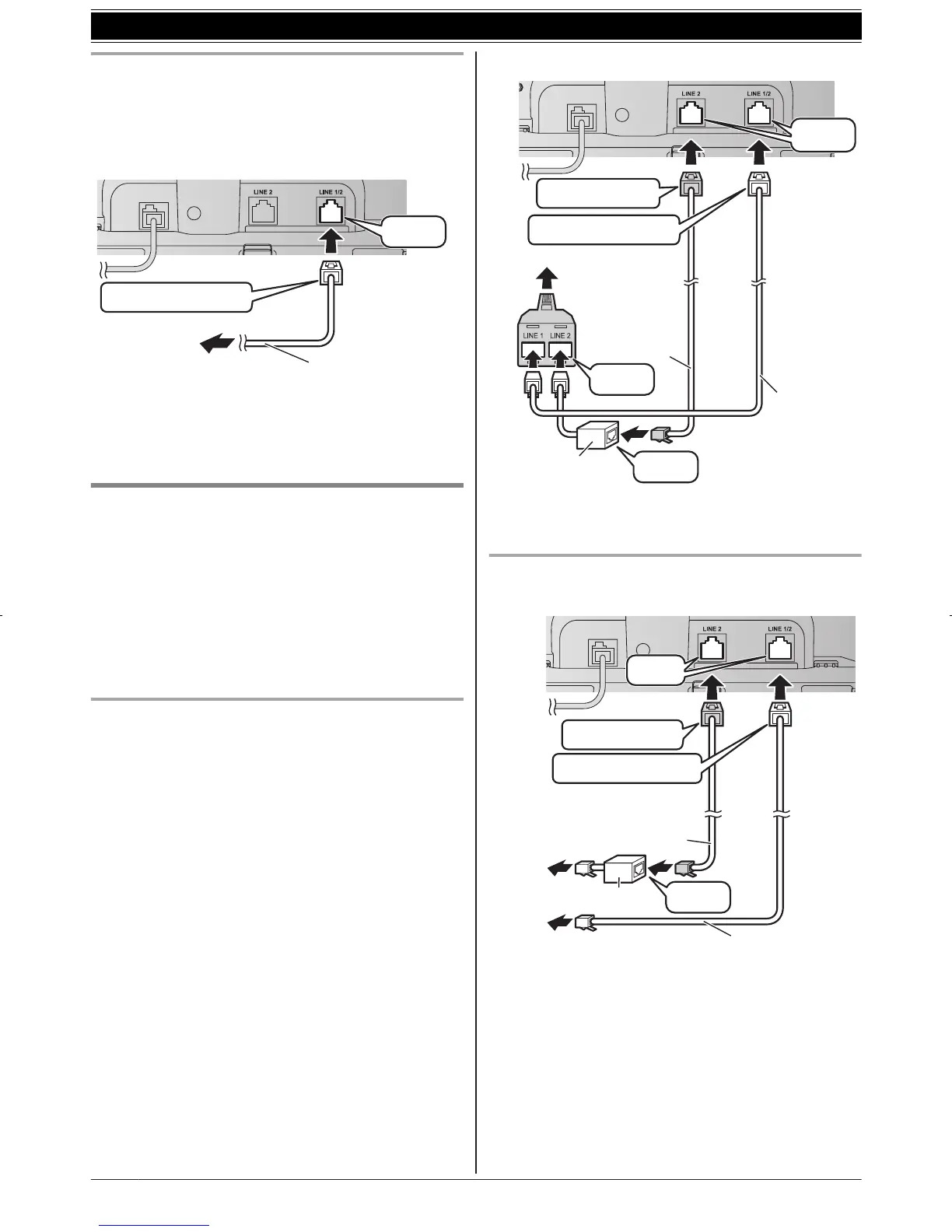

If you use the unit as a single-line telephone
only
Be sure to connect the telephone line cord to LINE
1/2. Change the line selection mode from “Auto”
to “Line1” (page 16).
2-wire cord
“Click”
“Transparent” plug
To single-line
telephone
jack (RJ11C)
Note:
R “Check tel line 2” is displayed on the unit.
To erase it, see page 64.
If you subscribe to a DSL/ADSL
service
Please attach a DSL/ADSL filter (contact your DSL/
ADSL provider) to the telephone line between the
base unit and the telephone line jack in the event
of the following:
– noise is heard during conversations.
– Caller ID features do not function properly.
To connect to a 2-line telephone jack
For this connection, please purchase a Panasonic
2-line splitter (page 4).
Example: DSL/ADSL line is line 2
“GREEN” plug
“Click”
“Transparent” plug
2-wire cord
4-wire cord
2-line
splitter
DSL/ADSL
filter*
To 2-line telephone
jack (RJ14C)
“Click”
“Click”
*DSL/ADSL filter (not supplied) is required if you
have DSL/ADSL service.
To connect to 2 single-line telephone jacks
Example: DSL/ADSL line is line 2
“Click”
“GREEN” plug
4-wire cord
2-wire cord
Line 2
Line 1
“Transparent” plug
To single-line telephone
jacks (RJ11C)
DSL/ADSL filter*
“Click”
*DSL/ADSL filter (not supplied) is required if you
have DSL/ADSL service.
