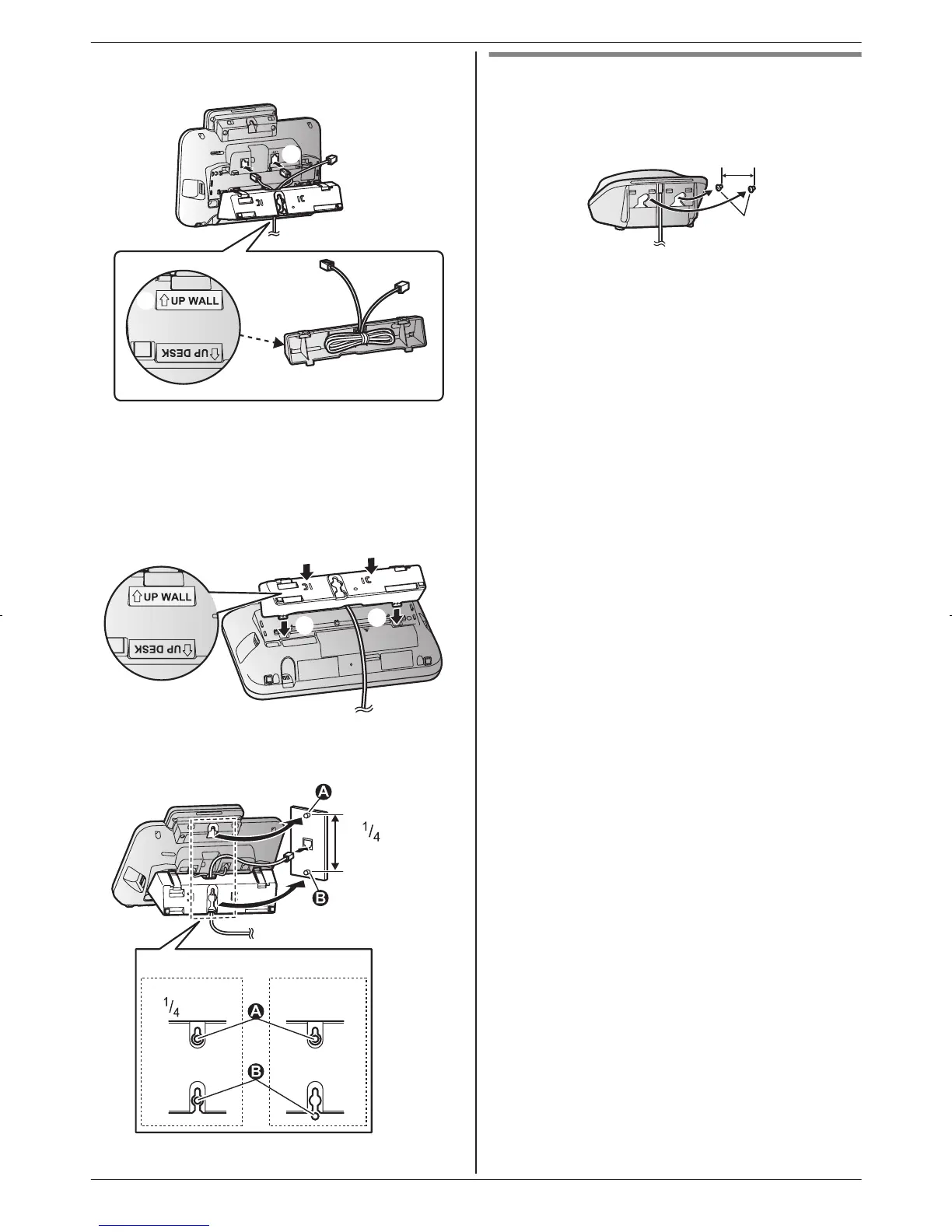

C Connect the AC adaptor cord and
telephone line cord.
3
2
1
3 Insert the lower tabs of the adaptor into the
unit’s bottom slots (A), then insert by pushing
down the levers of the adaptor into the upper
slots (B).
R The words “UP WALL” should be facing up.
B
B
A
A
4 Mount the unit on a wall then slide down to
secure in place.
83 mm
(3 inches)
or
102 mm
(4 inches)
Wall phone plate
83 mm
(3 inches)
102 mm
(4 inches)
Charger
Drive the screws (not supplied) into the wall.
Screws
27.2 mm
(1 / inches)
1
16
