Panasonic Lumix DMC-FS20

11
VQT1M59
Before Use

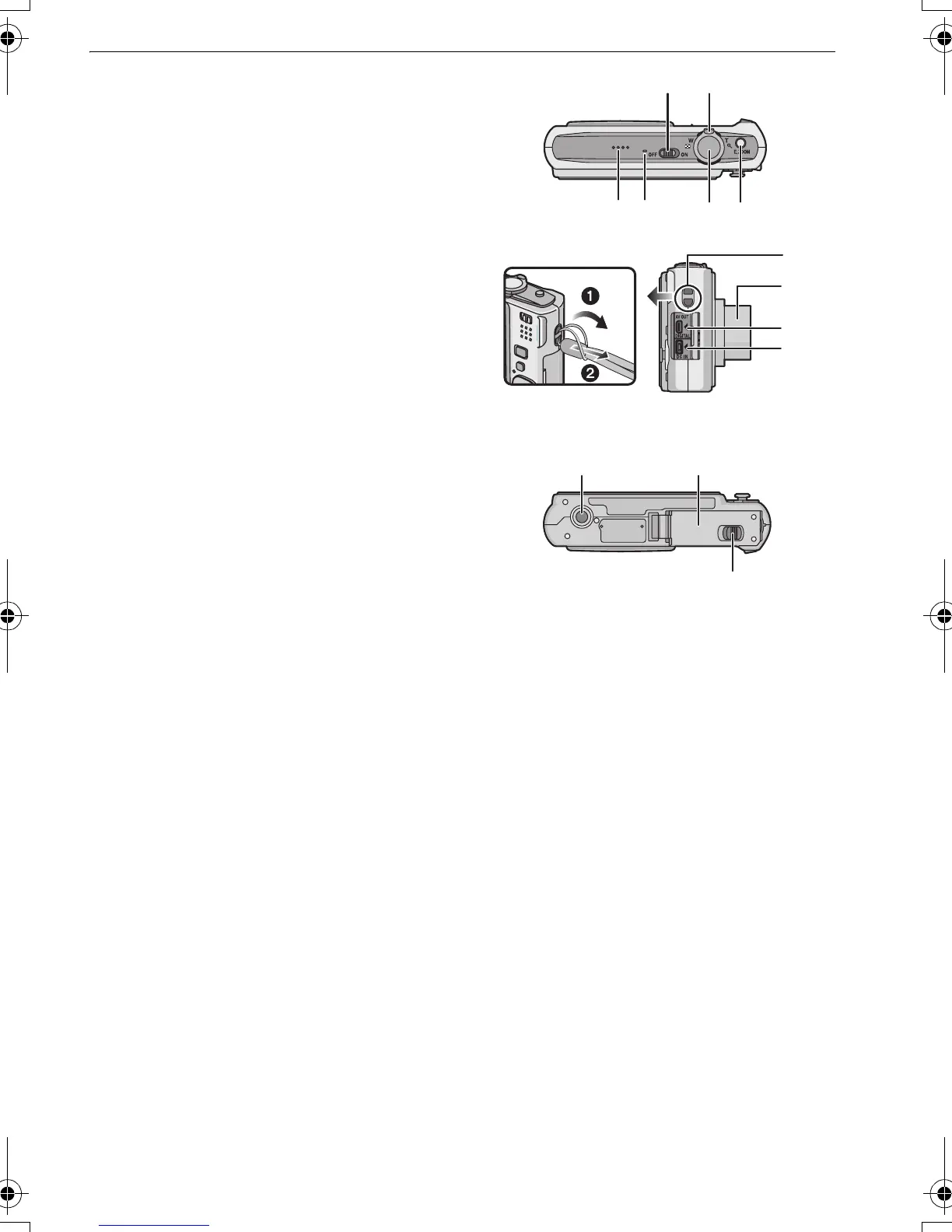

12 Camera ON/OFF switch (P16)
13 Zoom lever (P32)
14 Speaker (P71)
15 Microphone (P55)
16 Shutter button (P27, 55)
17 [E.ZOOM] button (P33)
18 Strap eyelet
•
Be sure to attach the strap when using the
camera to ensure that you will not drop it.
19 Lens barrel
20 [AV OUT/DIGITAL] socket (P83, 85, 89)
21 [DC IN] socket (P83, 85)
•
Always use a genuine Panasonic AC
adaptor (DMW-AC5PP; optional).
• This camera cannot charge the battery
even when the AC adaptor (DMW-AC5PP; optional) is connected to it.
22 Tripod receptacle
•
When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
23 Card/Battery door (P14)
24 Release lever (P14)
12
14
13
15 16 17
1
9
2
0
21
1
8
22 23
24
