11
VQT1W65
Before Use

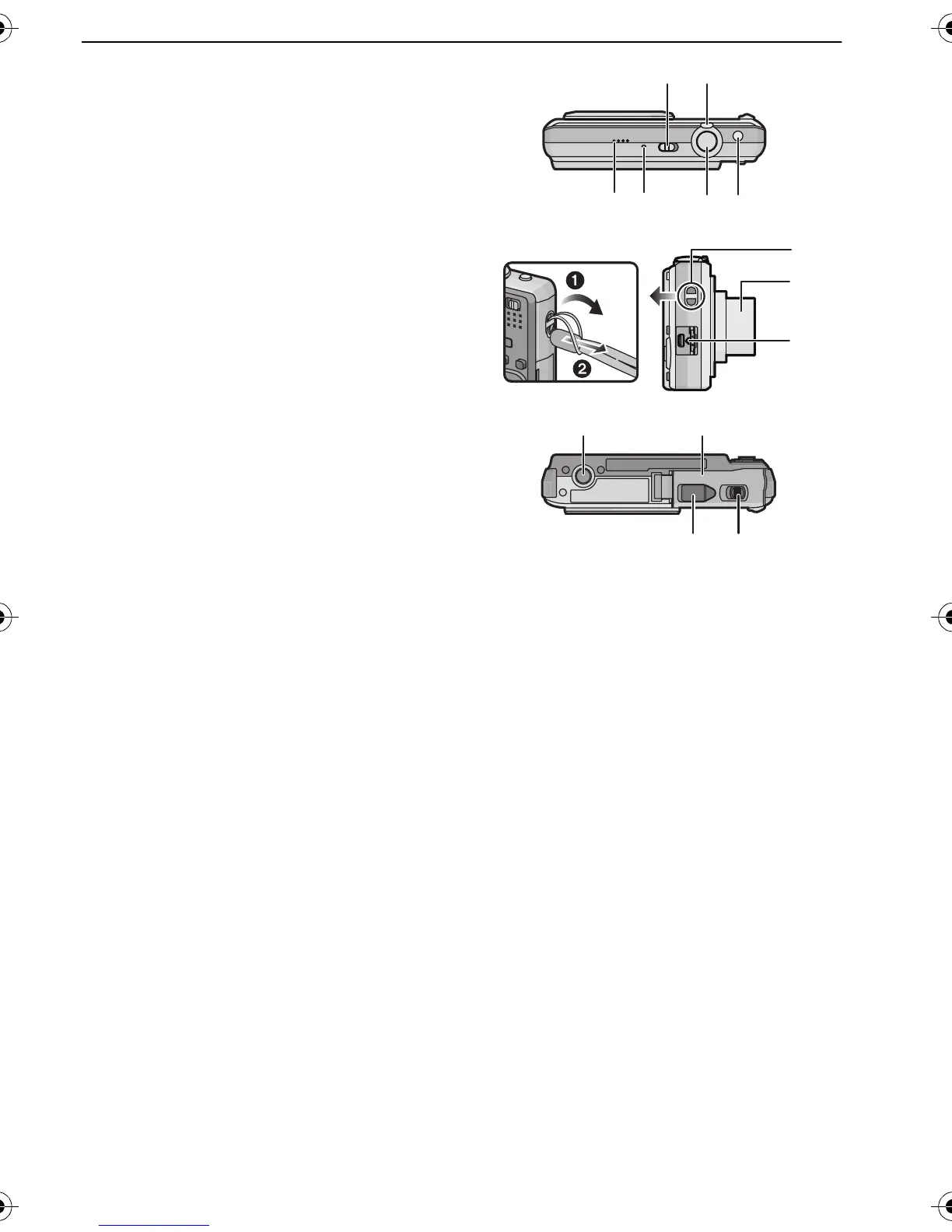

12 Camera ON/OFF switch (P17)
13 Zoom lever (P32)
14 Speaker (P72)
15 Microphone (P55)
16 Shutter button (P27, 55)
17 Intelligent auto button (P27)
18 Hand strap eyelet
• Be sure to attach the hand strap when
using the camera to ensure that you will
not drop it.
19 Lens barrel
20 [AV OUT/DIGITAL] socket (P83, 85, 89)
21 Tripod receptacle
• When you use a tripod, make sure the
tripod is stable when the camera is
attached to it.
22 Card/Battery door (P14, 15)
23 Release lever (P14)
24 DC coupler cover (P15)
• When using an AC adaptor, ensure that
the Panasonic DC coupler (DMW-DCC4;
optional) and AC adaptor (DMW-AC5PP;
optional) are used. For connection details,
refer to P15.
DMC-FS25PPC-VQT1W65_eng.book 11 ページ ２００９年１月２２日 木曜日 午前１１時６分
To Next Page
