Panasonic Lumix DMC-FS45 User Manual

- 97 -
Connecting to other equipment
Connecting to other equipment

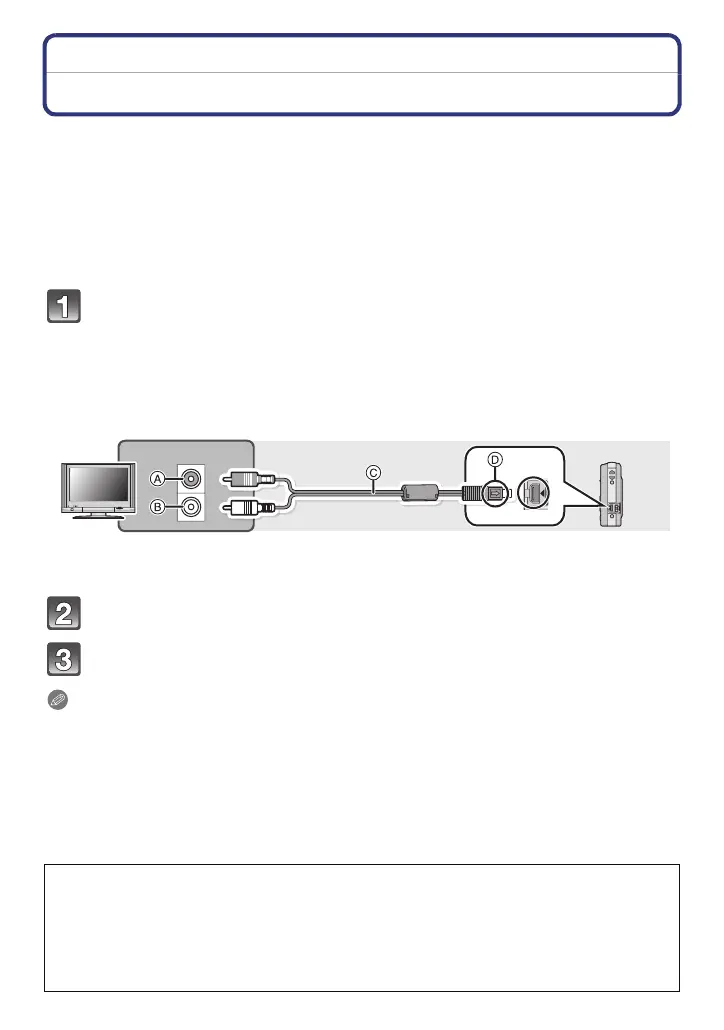

Playing Back Pictures on a TV Screen
Pictures recorded with this unit can be played back on a TV screen.
(DMC-SZ1)
•
Please use the supplied AV cable.
(DMC-FS45)
•
Please use the optional AV cable (DMW-AVC1).
Preparations:
Set the [TV Aspect]. (P43)
Turn this unit and the TV off.
Connect the camera and a TV.
• Check the directions of the connectors, and plug them straight in or unplug them straight out.
(Otherwise the connectors may bend out of shape, which may cause malfunction.)
• (DMC-SZ1)
Do not use any other AV cables except the supplied one.
• (DMC-FS45)
Always use a genuine Panasonic AV cable (DMW-AVC1: optional).
Turn the TV on and select external input.
Turn the camera on and then slide the REC/PLAY switch to [(].
Note
•
Depending on the [Picture Size], black bands may be displayed on the top and bottom or the
left and right of the pictures.
• Change the screen mode on your TV if the picture is displayed with the top or bottom cut off.
• When you play back a picture vertically, it may be blurry.
• When pictures are displayed, they may not be displayed properly depending on the type of TV.
• You can view pictures on TVs in other countries (regions) which use the NTSC or PAL system
when you set [Video Out] in the [Setup] menu.
• No sound is output from the camera speakers.
• Read the operating instructions for the TV.
A Yellow: to the video input socket
B White: to the audio input socket
C AV cable
D Align the marks, and insert.
The recorded still pictures can be played back on a TV with an SD Memory Card slot.
•
Depending on the TV model, pictures may not be displayed on the full screen.
• Motion pictures cannot be played back. To play back motion pictures, connect the camera to
the TV with the AV cable.
• In some cases, panorama pictures cannot be played back. Also, auto-scroll playback of
panorama pictures may not work.
• For cards compatible with playback, refer to the operating instructions of the TV.

Panasonic Lumix DMC-FS45 Specifications

General

Megapixel	16.1 MP
Camera type	Compact camera
Sensor type	CCD
Image stabilizer	Yes
Total megapixels	16.6 MP
Image sensor size	1/2.33 \
Image formats supported	EXIF, JPG
Supported aspect ratios	1:1, 3:2, 4:3, 16:9
Maximum image resolution	4608 x 3456 pixels
Still image resolution(s)	3456x3456, 4608x3456, 3648x2736, 2560x1920, 2048x1536, 640x480, 4608x3072, 4608x2592
Digital zoom	4 x
Optical zoom	5 x
Extra/Smart zoom	11.3 x
Focal length range	4.3 - 21.5 mm
Maximum aperture number	6.4
Minimum aperture number	2.5
Number of aspheric elements	3
Lens structure (elements/groups)	6/5
Maximum focal length (35mm film equiv)	130 mm
Minimum focal length (35mm film equiv)	24 mm
Focus adjustment	Auto
Normal focusing range	0.5 - ∞/1 - ∞ m
Auto Focus (AF) points	23
Auto focusing (AF) modes	Continuous Auto Focus, Multi Point Auto Focus, Tracking Auto Focus
Macro focusing range (tele)	1 - ∞ m
Macro focusing range (wide)	0.05 - ∞ m
Normal focusing range (wide)	0.5 - ∞ m
ISO sensitivity	100, 200, 400, 800, 1600, 6400, Auto
Light exposure modes	-
Light exposure control	Program AE
Light exposure correction	± 2EV (1/3EV step)
Fastest camera shutter speed	1/1600 s
Slowest camera shutter speed	8 s
Flash modes	Auto, Forced off, Forced on, Red-eye reduction, Slow synchronization
Flash range (tele)	1 - 2.1 m
Flash range (wide)	0.4 - 5.6 m
Power source type	Battery
Video resolutions	640 x 480, 1280 x 720 pixels
Motion JPEG frame rate	25 fps
Video formats supported	MP4
Maximum video resolution	1280 x 720 pixels
Analog signal format system	NTSC, PAL
Audio system	Mono
Memory slots	1
Internal memory	70 MB
Compatible memory cards	SD, SDHC, SDXC
Field of view	100 %
Display diagonal	3 \
Display resolution (numeric)	230000 pixels
USB version	2.0
Product color	Silver
Scene modes	Children, Close-up (macro), Night landscape, Night portrait, Panorama, Pet, Portrait, Sports, Sunset
Image editing	Crop, Resizing
Photo effects	Black&White, Vivid
White balance	Auto, Cloudy, Daylight, Incandescent, Shade
Shooting modes	Movie, Scene
Camera playback	Movie, Single image, Slide show, Thumbnails
Self-timer delay	2, 10 s
Camera file system	DCF, DPOF 1.1, Exif 2.3
Playback zoom (max)	16 x
On Screen Display (OSD) languages	DEU, ENG, ESP, FRE, ITA, JPN
Battery voltage	3.6 V
Battery capacity	680 mAh
Cables included	USB
Bundled software	PHOTOfunSTUDIO 8.0 Standard Edition\\r Adobe Reader

Weight and Dimensions

Depth	19.4 mm
Width	96 mm
Height	57.1 mm
Weight	106 g
Weight (including battery)	123 g
