Before Use

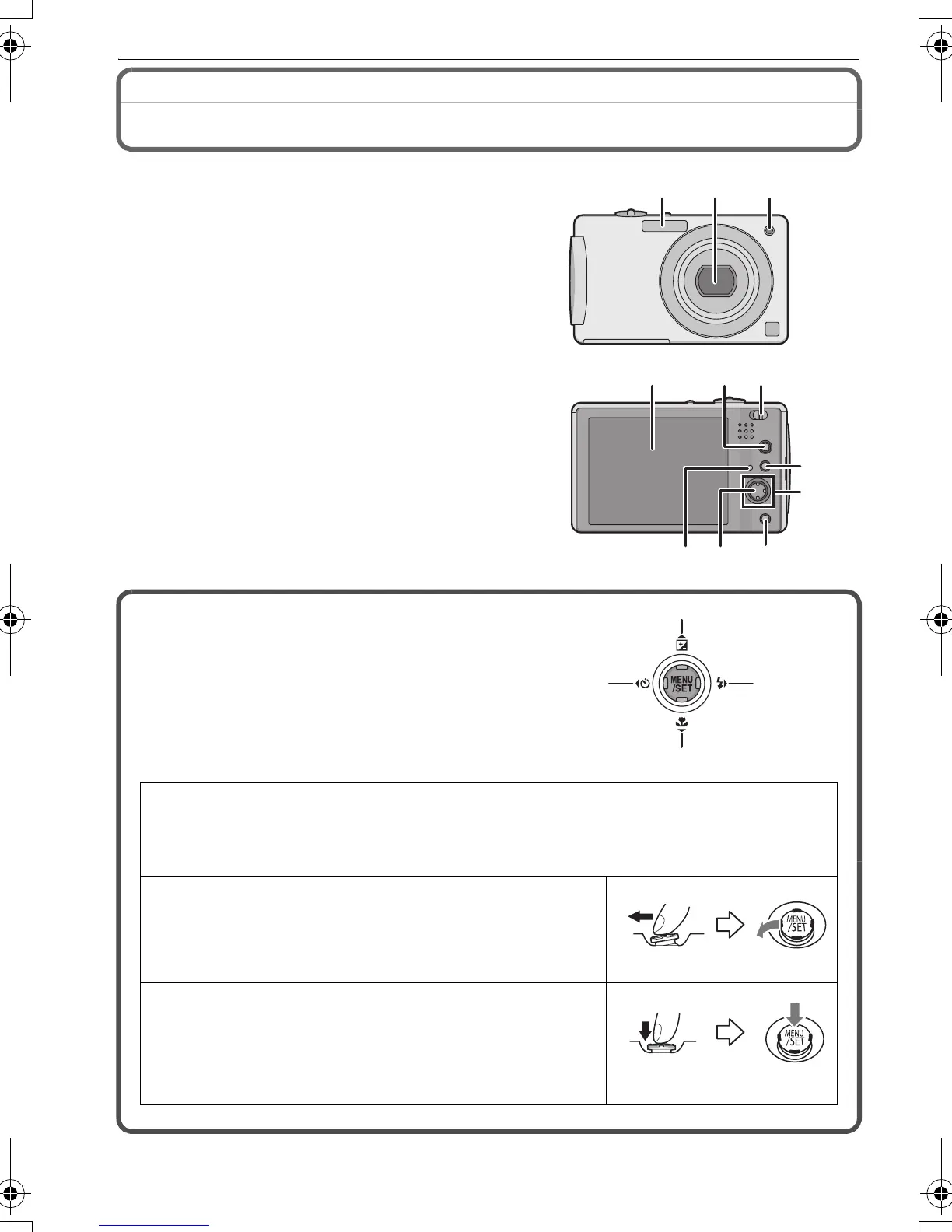

Names of the Components
1 Flash (P42)
2 Lens (P5, 111)
3 Self-timer indicator (P46)/
AF assist lamp (P76)
4 Touch panel/LCD monitor (P12, 40, 108)
5 Status indicator (P16, 24, 29)
6 [MENU/SET] button (P18)
7 [DISPLAY] button (P40)
8 [Q.MENU] (P22)/Delete (P38) button
9 [MODE] button (P28)
10 [REC]/[PLAYBACK] selector switch
(P20)
11 Joystick
A: 3/Exposure compensation (P52)/
Auto bracket (P53)/White balance
fine adjustment (P69)/The Backlight
Compensation (P30)
B: 4/Macro mode (P45)
C: 2/Self-timer (P46)
D: 1/Flash setting (P42)
The joystick is operated in two different ways: it can be moved in the up, down, left
and right directions to perform an operation, or it can be pressed to select. In these
operating instructions, it is pictured as shown in the figure below or described with
3/4/2/1.
Example: When the joystick is moved toward 2 (left)
Place your finger on the joystick, and move the joystick
toward the left.
or Move 2
Example: When the [MENU/SET] button is pressed
Push the joystick straight in.
or Press [MENU/SET]
123
104 9
5
7
8
11
6
D
A
B
C
