50

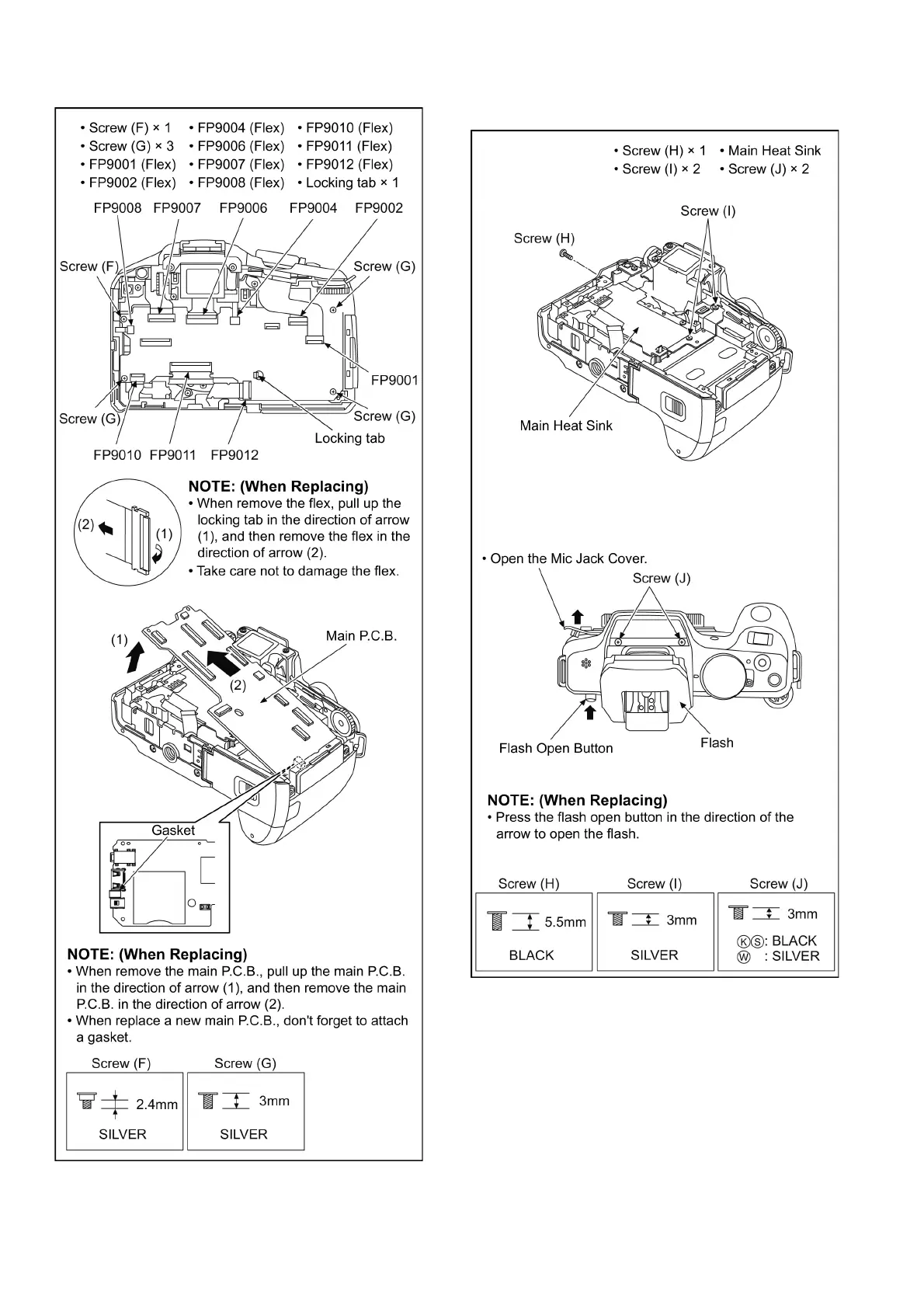

9.1.3.2. Removal of the Main P.C.B.
(Fig. D3)
9.1.3.3. Removal of the Top Unit and
Flash P.C.B.
(Fig. D4)
