10 Measurements and Adjustments

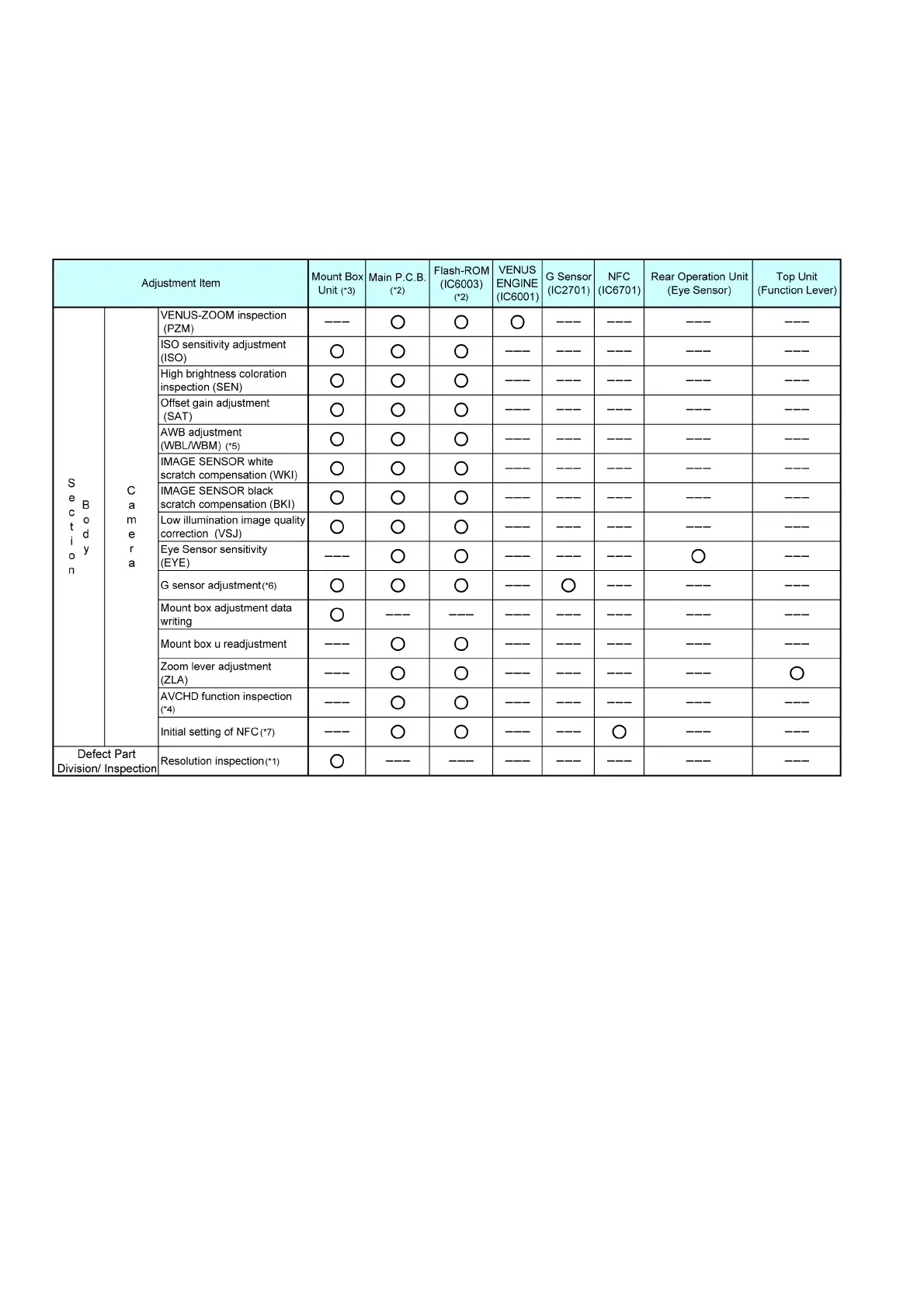

10.1. Matrix Chart for Replaced Part and Necessary Adjustment
The relation between Replaced part and Necessary Adjustment is shown in the following table.
When concerned part is replaced, be sure to achieve the necessary adjustment(s).
As for Adjustment condition/procedure, consult the “Adjustment Manual” which is available in Adjustment software.
NOTE:
After adjustments have been terminated, make sure to achieve “INITIAL SETTINGS”.
After updates it to the latest firmware, the adjustment is executed.
*1
• Inspect it, not only corresponding part is replaced, but also camera body is shocked and/or dropped.
• The Panasonic camera body in accordance with the Micro Four Thirds system (marketed commodity: operates normal) and a
standard zoom lens H-FS014045 (marketed commodity: operates normal) is required as a reference machine.
• Refer to the adjustment instruction in the adjustment software for details.
To Next Page
