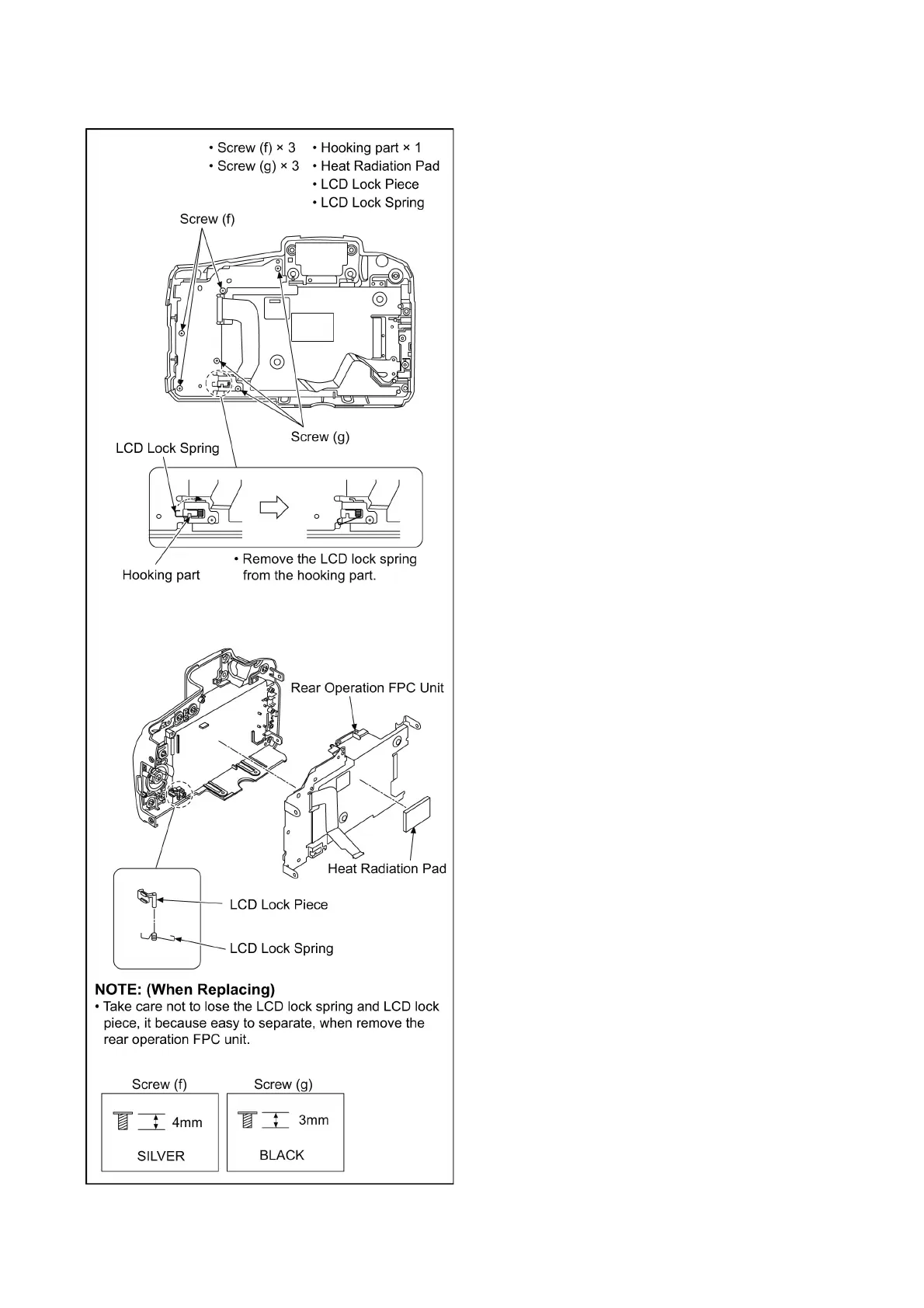

9.1.3.22. Removal of the Rear Operation
FPC Unit
(Fig. D32)
NOTE: (When Installing)
Make sure to confirm the following points when installing:
• The Screw is tightened enough.
• Installing conditions are fine. (No distortion, no abnormal-
space.)
• No dust and/or dirt on Lens surfaces.
• LCD image is fine. (No dust and dirt on it, and no gradient
images.)
9.2. Disassembly and Assembly
Procedure for the Lens
Please refer to the following service manuals about Disassem-
bly and Assembly of bundled lenses.
• H-PS14042PP/E/GK : Order No.DSC1110056CE
• H-FS1442APP/E/GK : Order No.DSC1302014CE
• H-FS014042PP/E/GK : Order No.DSC1005041CE
• H-FS45150PP/E/GK : Order No.DSC1209040CE
• H-FS14140PP/E/GK : Order No.DSC1305023CE
