13
3.4.
Service Notes
3.4.1.

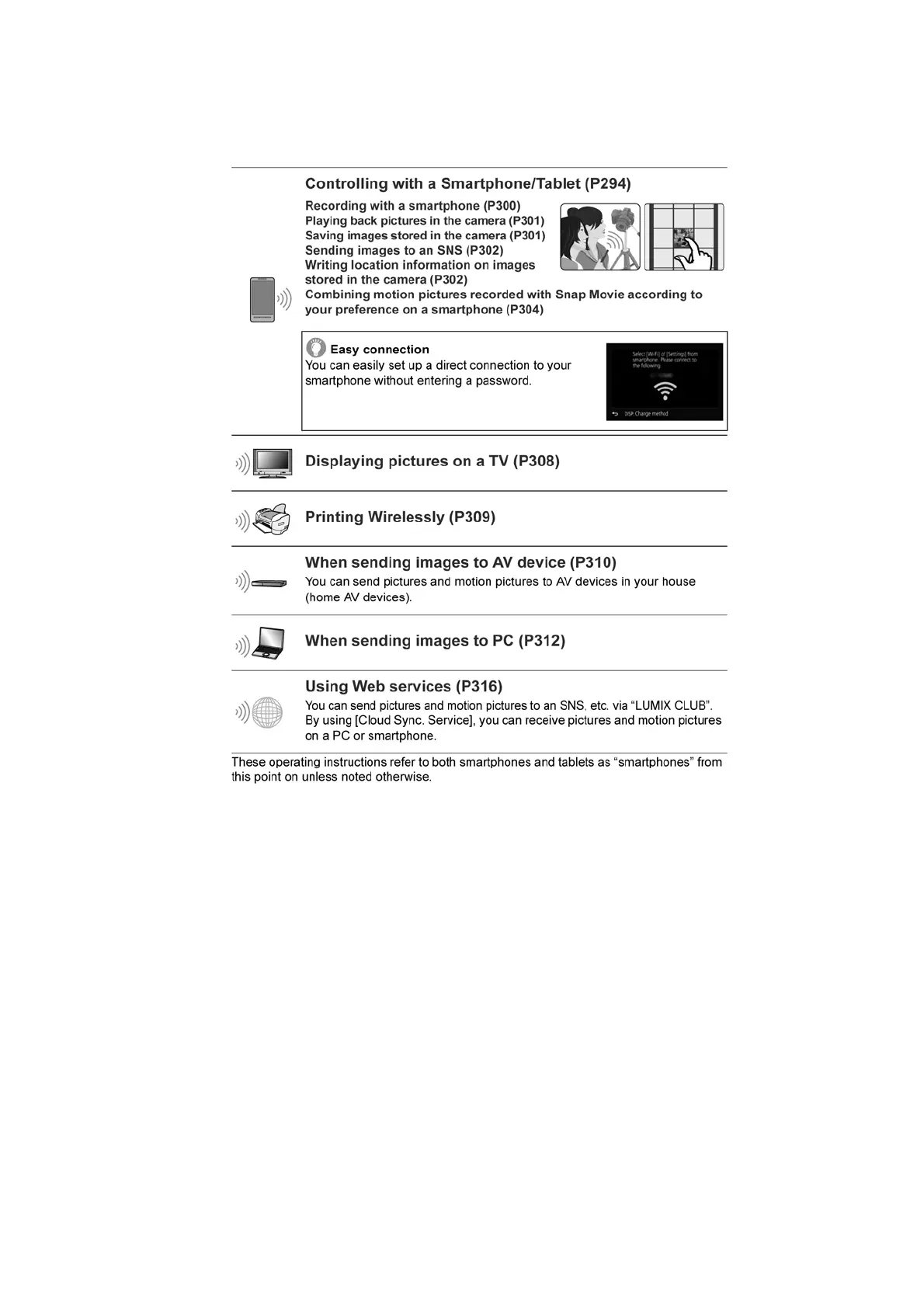

About Wi-Fi Function
The page number in this chapter does not
show the page number of this service manual.
12
14
Table of Contents
ORDER NO. DSC1506017CE
1
Digital Camera/Lens Kit/Double Zoom Lens Kit/Body
1
Model No. DMC-G7KPP DMC-G7KEB DMC-G7KEC DMC-G7KEE DMC-G7KEF DMC-G7KEG DMC-G7KGC DMC-G7KGD DMC-G7KGH DMC-G7KGK DMC-G7KGT DMC-G70KEG DMC-G7WPP DMC-G7WEB DMC-G7WEC DMC-G7WEF DMC-G7WEG DMC-G70WEG
1
1 Safety Precautions
3
1.1. General Guidelines
3
1.2. Leakage Current Cold Check
3
1.3. Leakage Current Hot Check (See Figure. 1)
3
1.4. How to Discharge the E.Capacitor on Flash P.C.B.
4
2 Warning
5
2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices
5
2.2. How to Recycle the Lithium Ion Battery (U.S. Only)
5
2.3. How to Replace the Lithium Battery
6
2.3.1. Replacement Procedure
6
2.4. Caution for AC Cord (For EB/GC/GH)
7
2.4.1. Information for Your Safety
7
2.4.2. Caution for AC Mains Lead
7
2.4.2.1. Important
7
2.4.2.2. Before Use
7
2.4.2.3. How to Replace the Fuse
7
3 Service Navigation
8
3.1. Introduction
8
3.2. About service of bundled lenses
8
3.3. Important Notice
8
3.3.1. Camera Body Unit
8
3.3.1.1. About Mount Box Unit (Ref. 10)
8
3.3.1.2. About Main P.C.B. Unit (Ref. 1) & Flash-ROM (IC6003)
9
3.3.1.3. About Venus Engine (IC6001) [Located on the Main P.C.B. Unit]:
9
3.3.2. Lens Unit (Interchangeable Lens: H-FS14140)
10
3.3.2.1. About Lens Main Unit (Ref. 209)
10
3.3.3. Lens Unit (Interchangeable Lens: H-FS1442A)
11
3.3.3.1. About Lens Main Unit (Ref. 308)
11
3.3.4. Lens Unit (Interchangeable Lens: H-FS45150)
12
3.3.4.1. About Lens Main Unit (Ref. 409)
12
3.3.5. About Flexible Cable and Connector
12
3.4. Service Notes
13
3.4.1. About Wi-Fi Function
13
3.4.2. Important Notice of Servicing
14
3.5. General Description About Lead Free Solder (PbF)
15
3.6. How to Define the Model Suffix (NTSC or PAL Model)
16
3.6.1. Defining Methods:
16
3.6.2. Initial Settings:
17
4 Specifications
20
4.1. Camera Body
20
4.2. Lens
25
5 Location of Controls and Components
26
5.1. Camera Body
26
5.2. Lens
27
6 Service Mode
28
6.1. Error Code Memory Function
28
7 Troubleshooting Guide
31
7.1. Checking Method of Body and Interchangeable Lens
31
7.2. Wi-Fi Circuit (Flash P.C.B.)
37
7.2.1. How to Remove Wi-Fi Password Protection
37
7.2.2. Checking of trouble caused by Wi-Fi Circuit or not
37
8 Service Fixture & Tools
38
8.1. Service Fixture and Tools
38
8.2. Clean Box
39
8.3. When Replacing the Main P.C.B. Unit
39
8.4. Service Position
40
9 Disassembly and Assembly Instructions
41
9.1. Camera Body Part
41
9.1.1. Disassembly Flow Chart
41
9.1.2. P.C.B. Location
41
9.1.3. Disassembly Procedure
42
9.1.3.1. Removal of the Rear Case Unit
43
9.1.3.2. Removal of the Main P.C.B. Unit
44
9.1.3.3. Removal of the Top Unit and Flash P.C.B.
44
9.1.3.4. Removal of the Battery Frame Unit
46
9.1.3.5. Removal of the Mount Box Unit
47
9.1.3.6. Removal of the Battery Plate
47
9.1.3.7. Removal of the Battery Door Unit
48
9.1.3.8. Removal of the Hinge SW FPC Unit and LCD Unit 1
48
9.1.3.9. Removal of the LCD IF P.C.B. and LCD Unit
49
9.1.3.10. Removal of the Speaker and Rear Plate Unit
50
9.1.3.11. Removal of the LVF Unit 1
51
9.1.3.12. Removal of the LVF Module
51
9.1.3.13. Removal of the EXT MIC P.C.B.
52
9.1.3.14. Removal of the Flash
52
9.2. Disassembly and Assembly Procedure for the Lens
53
10 Measurements and Adjustments
54
10.1. Matrix Chart for Replaced Part and Necessary Adjustment
54
11 Maintenance
56
11.1. Notice in External Cleaning
56
11.1.1. About the Body
56
11.1.1.1. Dust/Dirt on the Outer Casing Part (S)
56
11.1.1.2. Dust/Dirt on the Image Sensor
56
11.1.1.3. About the LVF Unit
56
11.1.2. About the Lens
56
12 Block Diagram
57
12.1. Overall Block Diagram
57
12.2. System Control Block Diagram
58
12.3. Video/Audio Process(1) Block Diagram
59
12.4. Video/Audio Process(2) Block Diagram
60
12.5. Video/Audio Process(3) Block Diagram
61
12.6. Lens Block Diagram
62
12.7. Flash/Hot Shoe Block Diagram
63
12.8. Power(1) Block Diagram
64
12.9. Power(2) Block Diagram
65
13 Wiring Connection Diagram
66
13.1. Interconnection Diagram
66
14 Schematic Diagram
67
15 Printed Circuit Board
67
16 Exploded View and Replacement Parts List
67
