12 Block Diagram
12.1. Overall Block Diagram

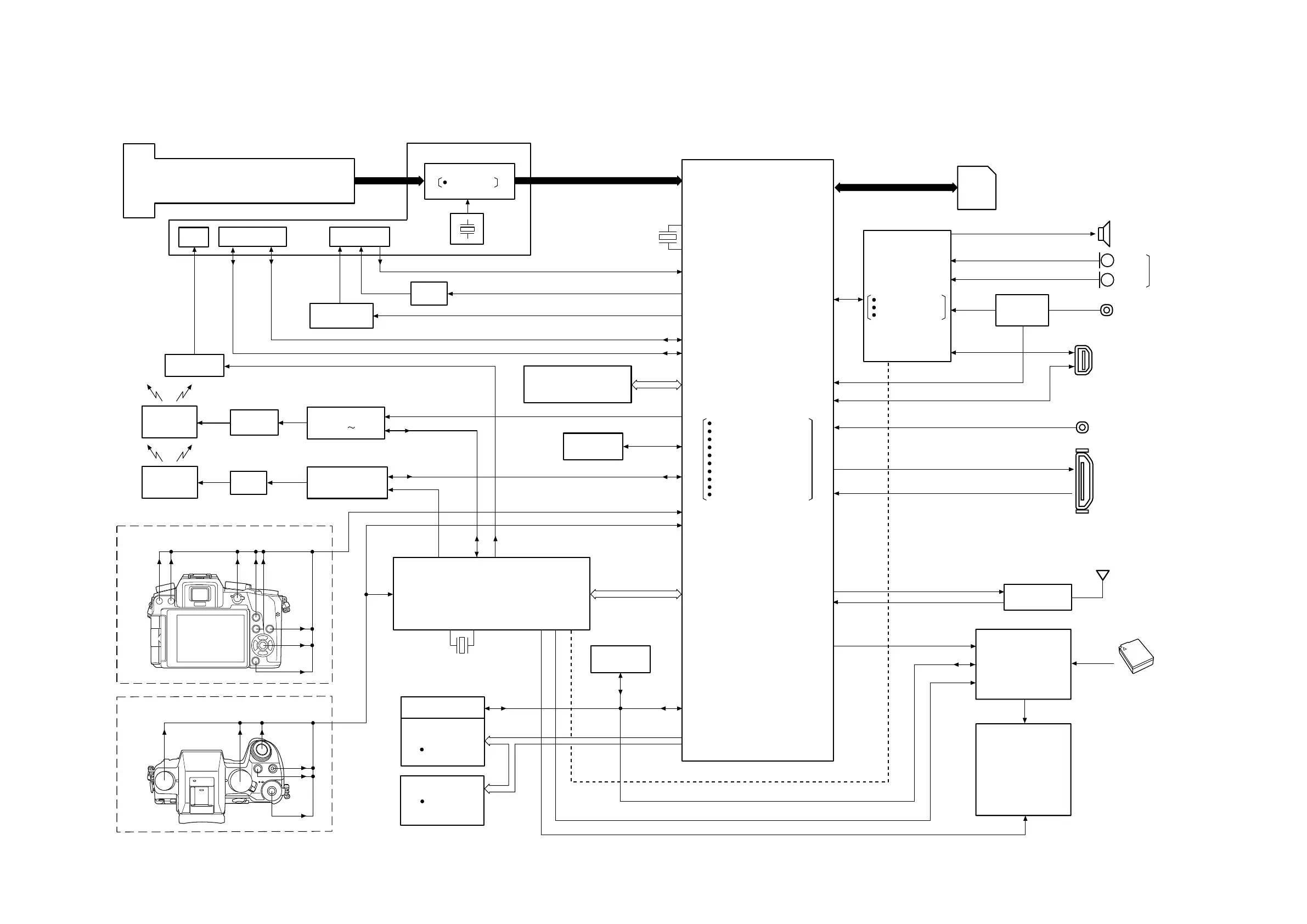

DMC-G7/G70 OVERALL BLOCK DIAGRAM
MEMORY
CARD
REAR OPERATION CONTROLS
IC9901
MOTOR DRIVE
FLASH
TOP OPERATION CONTROLS
AV OUT / DIGITAL
TERMINAL
LENS UNIT
X6001
(48MHz)
LENS CONTACT
TERMINAL
SSWF
SHUTTER
UNIT
Q9801, T9801
MOUNT BOX UNIT
IC9101
SYSTEM IC
MICROPHONE
SPEAKER AMP
AMP
VIDEO OUT
ECM(R)
ECM(L)
STEREO
MICROPHONE
HDMI
TERMINAL
SPEAKER
MOS IMAGE SENSOR
(Built in AFE)
(27MHz)
IC6001
VENUS ENGINE
CAMERA PROCESS
J-PEG COMP/EXPANDS
MEDIA I/F
USB I/F
MAIN MICROPROCESSOR
OIS CONTROL
LENS DRIVE
LCD DRIVE
LP-DDR2 MOBILE RAM /4G-bit
HDMI DRIVER
COLOR LVF
0.39” PANEL
2360k dots
EXT. FLASH
(OPTION)
Q8001,D8002
QR8001 8004
HOT SHOE
UNIT
REMOTE
TERMINAL
COLOR LCD
PANEL
3.0” PANEL
1040k dots
X9101
(32.768KHz)
TOUCH PANEL
IC2701
TILT SENSOR
IC9101
SYSTEM IC
EXT MICROPHONE
TERMINAL
IC4401
MIC AMP
IC8502
W-LAN MODULE
Wi-Fi
ANTENNA
4/3” 16M pix
IC8501
CHARGE CONTROL
Q8501
Q9901
NAND FLASH ROM/1G-bit
IC6003
EYE SENSOR
BATTERY
PACK
IC1001,1051,1091,9103
POWER
(POWER SUPPLY)/
REGULATOR/
SYNCHRO STEP DOWN
CONVERTER
IC1021,1041,1042,1071
IC3901,3902,6501,6502
IC6503,6504,6505,6506
IC7201,8001,8002,9104
IC9201,9202,9203,9301
REGULATOR/LOAD SW/
DC-DC CONVERTER/
SINGLE COMPARATOR/
BUS SW
