10 Measurements and Adjustments

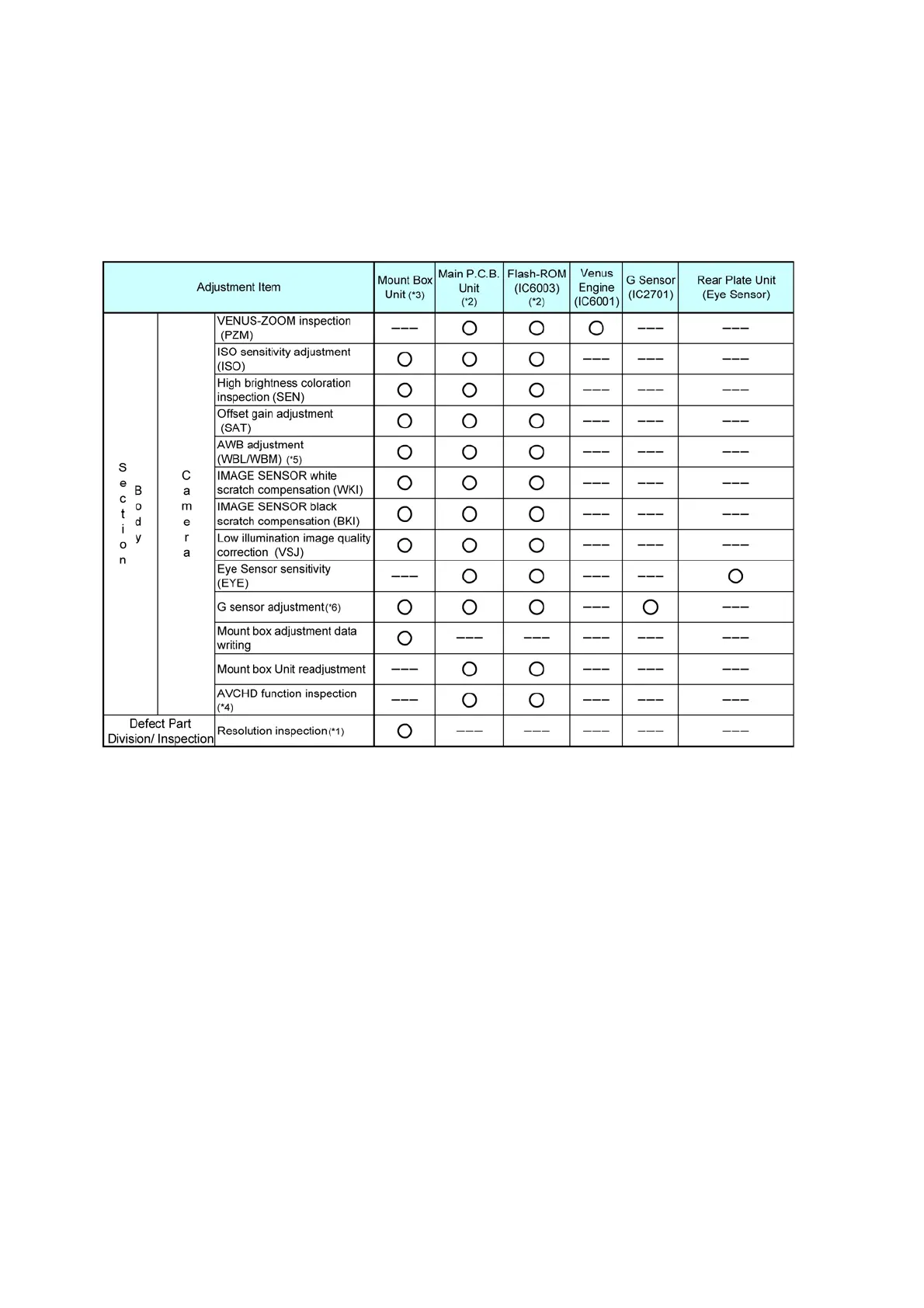

10.1. Matrix Chart for Replaced Part and Necessary Adjustment
The relation between Replaced part and Necessary Adjustment is shown in the following table.
When concerned part is replaced, be sure to achieve the necessary adjustment(s).
As for Adjustment condition/procedure, consult the “Adjustment Manual” which is available in Adjustment software.
NOTE:
After adjustments have been terminated, make sure to achieve “Initial Settings”.
After updates it to the latest firmware, the adjustment is executed.
*1 NOTE: (After exchange the Mount Box Unit)
• Inspect it, not only corresponding part is replaced, but also camera body is shocked and/or dropped.
• The Panasonic camera body in accordance with the Micro Four Thirds system (marketed commodity: operates normal) and a
standard zoom lens H-FS014045 (marketed commodity: operates normal) is required as a reference machine.
• Refer to the adjustment instruction in the adjustment software for details.
*2 NOTE: (When exchange the Main P.C.B. Unit)
• Correspond by either the following when exchange the Main P.C.B. Unit unavoidably by destruction and damage etc. of Main
P.C.B. Unit.
1. When it can turn on power, and the adjustment software can communicate with the camera body:
• Before replacing, proceed the Flash-ROM (IC6003) data backup from the unit. After replacing, overwrite the Flash-ROM
(IC6003) data with backup data from the unit, before proceeding the main body adjustment.
2. When it cannot turn on power, or the adjustment software cannot communicate with the camera body:
• The readjustment of mount box unit etc. are necessary.
• Refer to the adjustment instruction in the adjustment software for details.
*3 NOTE: (After exchange the Mount Box Unit)
• Execute the resolution inspection by the comparison with the standard model (DMC-G1K etc.: operates normal).
• Refer to the adjustment instruction in the adjustment software for details.
