3.6. How to Define the Model Suffix (NTSC or PAL Model)
There are nine kinds of DMC-GH4 (Camera body unit), regardless of the colours.
• a) DMC-GH4 (Japan domestic model)
• b) DMC-GH4P/PC
• c) DMC-GH4EB/EC/EF/EG
• d) DMC-GH4EE
• e) DMC-GH4GN
• f) DMC-GH4GD
• g) DMC-GH4GT
• h) DMC-GH4GK
• i) DMC-GH4PU/GC/GH
What is the difference is that the “Initial Settings” data which is stored in Flash-ROM mounted on Main P.C.B..
3.6.1. Defining Methods:

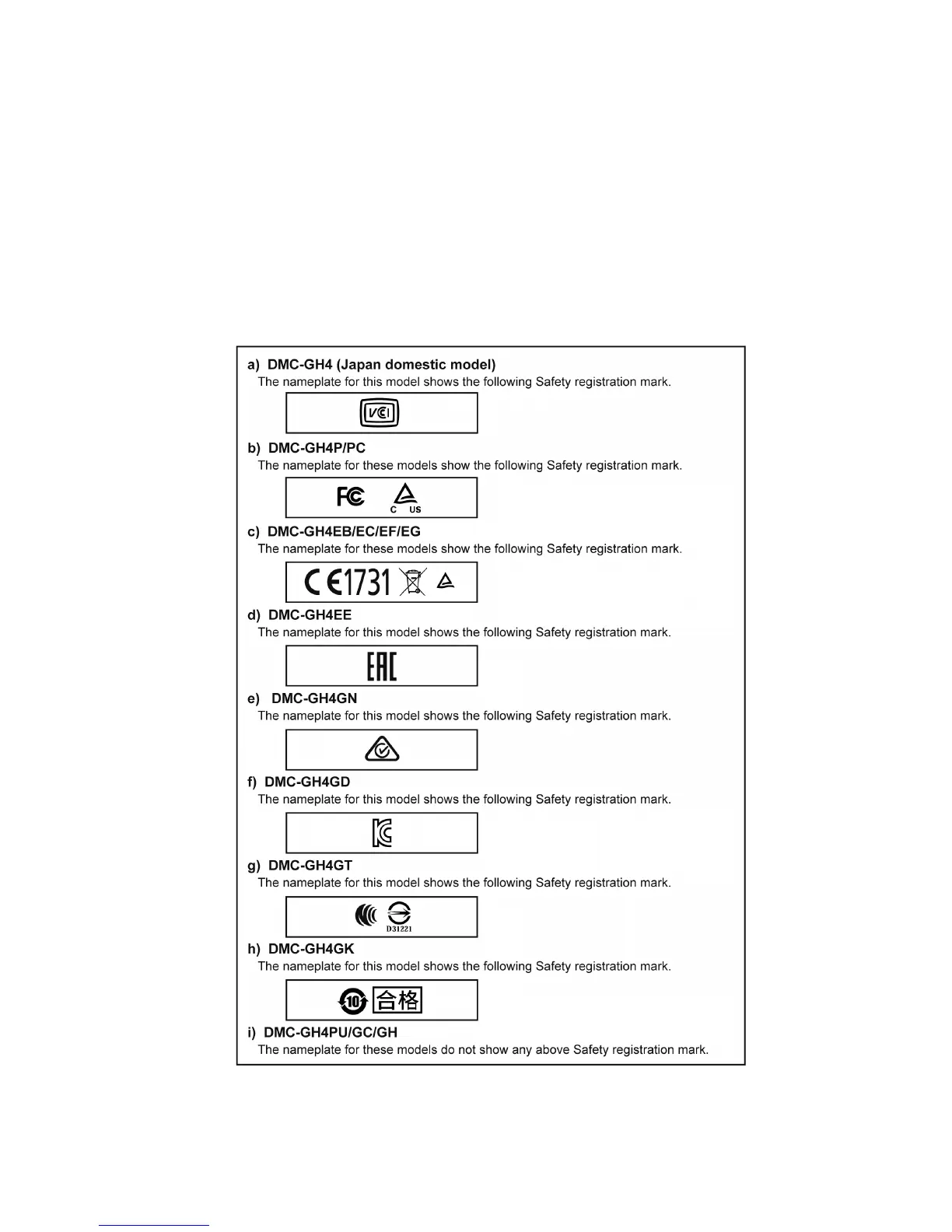

To define the model suffix to be serviced, refer to the nameplate which is putted on the bottom side of the unit.
NOTE:
After replacing the Main P.C.B., be sure to achieve adjustment.
Refer to the adjustment instruction in the adjustment software for details.
