63

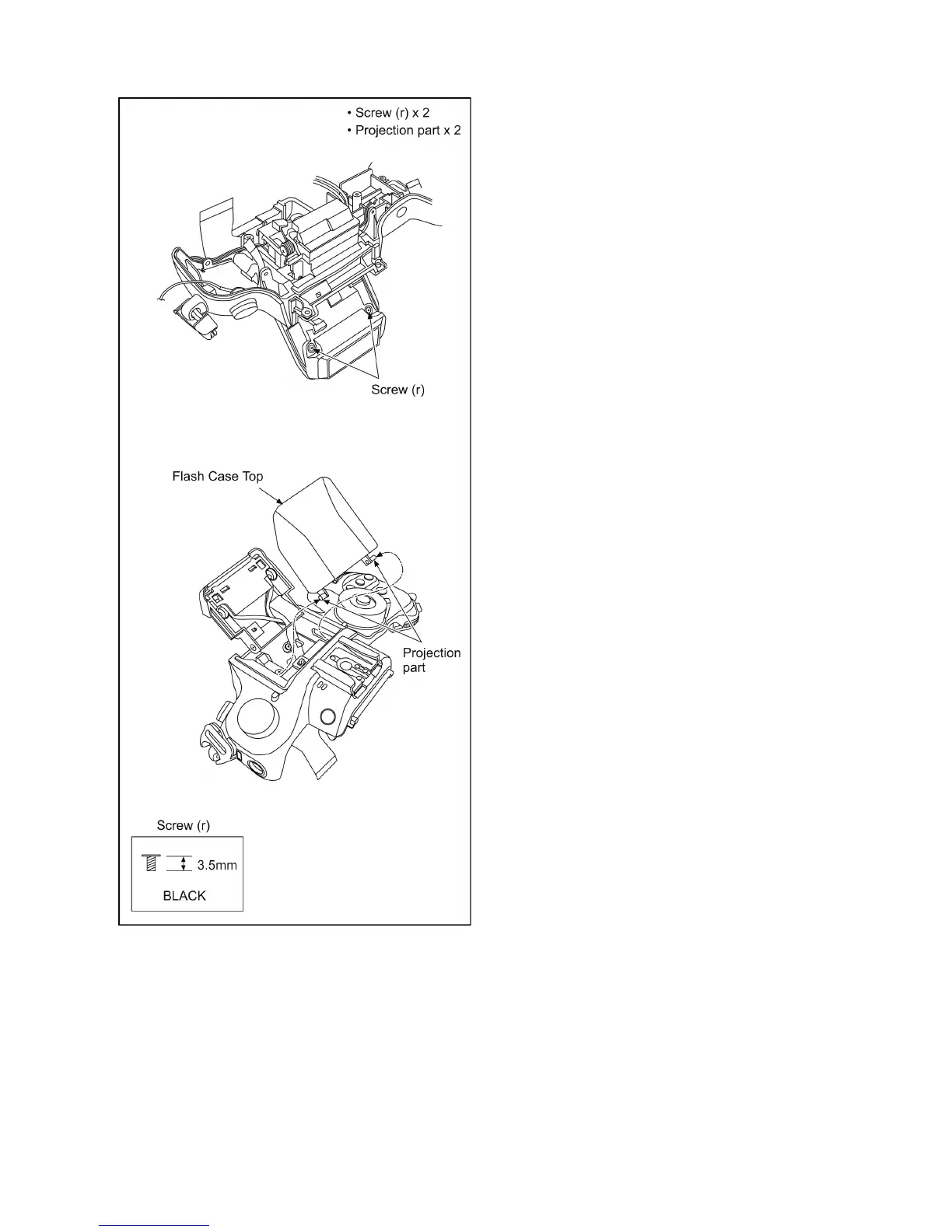

9.1.3.21. Removal of the Flash Case Top
(Fig. D37)
NOTE: (When Installing)
Make sure to confirm the following points when installing:
• The Screw is tightened enough.
• Installing conditions are fine. (No distortion, no abnormal-
space.)
• No dust and/or dirt on image sensor surface. (live mos)
• LCD image is fine. (No dust and dirt on it, and no gradient
images.)
9.2. Disassembly and Assembly
Procedure for the Lens
Please refer to the following service manuals about Disassem-
bly and Assembly of bundled lenses.
• H-HS12035PP/E/GK : Order No.DSC1206029CE
• H-FS14140PP/E/GK : Order No.DSC1305023CE
To Next Page
