8
VQT1C84
Preparation

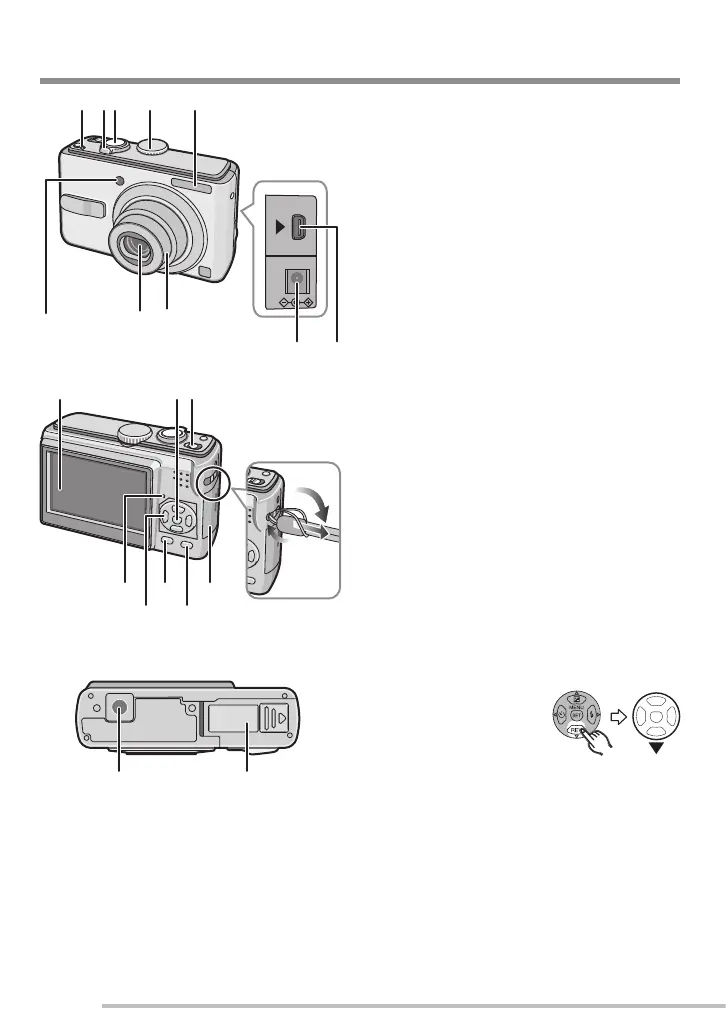

Names of the Components
20 Tripod Receptacle
• When you use a tripod, make sure
the tripod is stable with the camera
attached to it.
21 Battery Door (P14)
1 [E. ZOOM] (Easy Zoom) Button (P30)
2 Zoom Lever (P29)
3 Shutter Button (P24, 52)
4 Mode Dial (P17)
5 Flash (P39)
6 Self-timer Indicator (P42)
AF Assist Lamp (P65)
7 Lens part (P4)
8 Lens barrel
9 [DC IN] Socket (P83, 86)
• Always use a genuine Panasonic AC
adaptor (DMW-AC6: optional).
10 [V.OUT/DIGITAL] Socket
(P83, 86, 90)
11 LCD Monitor (P36, 91)
12 [MENU/SET] Button (P16)
13 Camera Switch (P16)
14 Status Indicator (P24)
15 Cursor buttons
w /Self-timer Button (P42)
r /[REV] Button (P32)
q /Flash Mode Button (P39)
e /Backlight Compensation in Simple
Mode (P28)/Exposure Compensation
(P43) Button
• In these operating instructions,
operations using the cursor buttons
are described as follows.
e.g.: When you
press the r
button.
16 [DISPLAY] (P36)/ [HIGH ANGLE] (P38)
Button
17 [FUNC] (function) (P58)/Delete (P34)
Button
18 Card Door (P14)
19 Strap Eyelet
• To remove the strap, use a pointed
object to undo the knot.
V.OUT
DIGITAL
DC IN
3V
123 4 5
6
78
910
20 21
11 12 13
14
15
16 18
19
17
To Next Page
