adjustment (P62)/Backlight
compensation in simple mode (P28)
button
7 [MENU/SET] button (P20)
8 [DISPLAY] (P36)/[HIGH ANGLE] (P38)
button
9 Delete (P34)/Single or burst mode
(P46) button
10 Microphone (DMC-LZ5) (P55, 66, 75)
11 Zoom lever (P29)
12 Optical image stabilizer button (P45)
13 Mode dial (P5)
14 Shutter button (P24, 55)
15 Camera ON/OFF switch (P11, 19)
16 Strap eyelet
17 Lens barrel
18 Card door (P16)
19 [DIGITAL/AV OUT] socket
(DMC-LZ5)
[DIGITAL/V.OUT] socket
(DMC-LZ4/DMC-LZ3)
(P80, 82, 86)
20 [DC IN] socket (P80, 82)
• Always use a genuine Panasonic AC
adaptor (DMW-AC6; optional).
21 Battery door (P16)
22 Tripod receptacle
• When you use a tripod, make sure it is
stable when the camera is attached to
it.

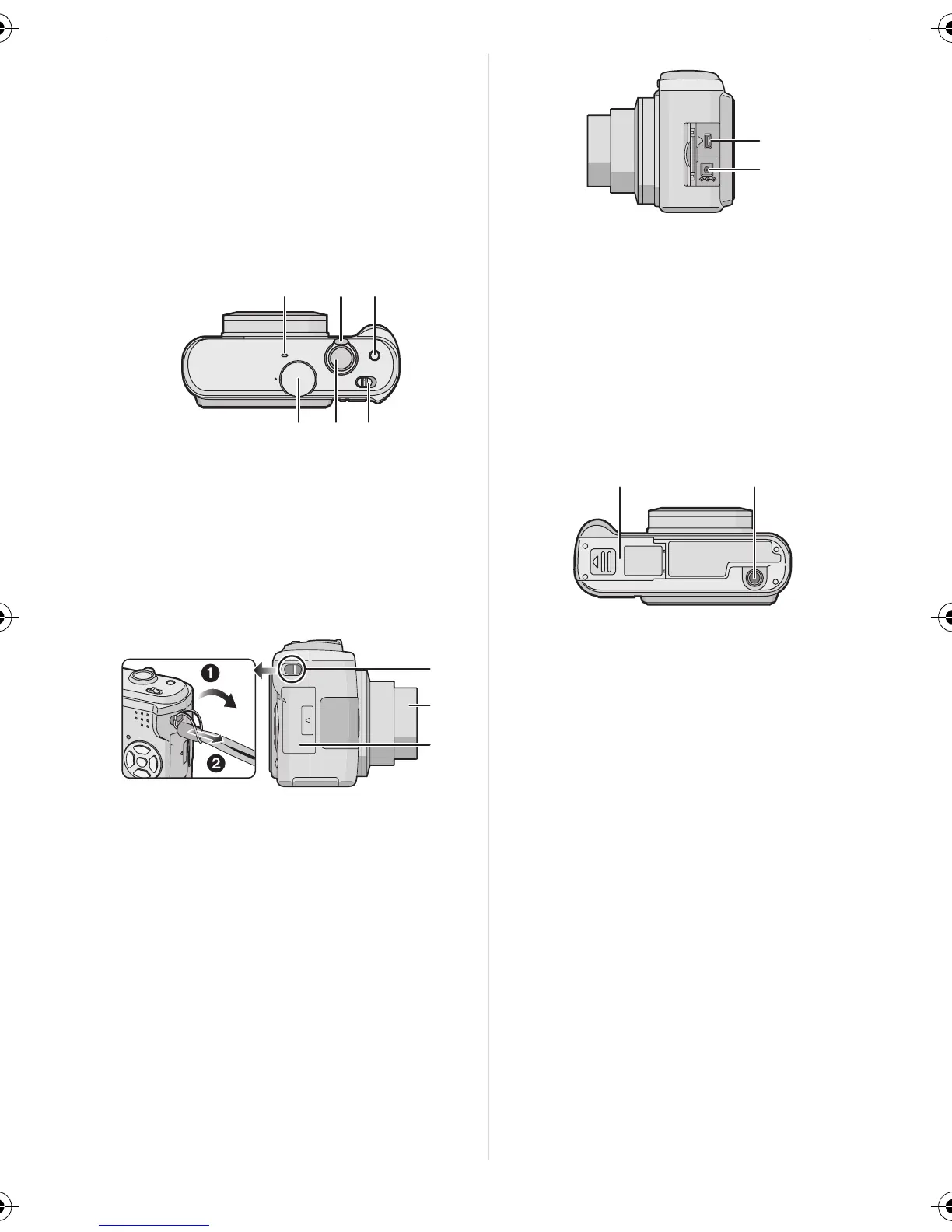

10 11 12
13 1514
16
18
17
DIGITAL
AV OUT
DC IN 3V
19
20
21 22
