Preparations
Names and Functions of Main Parts
- 11 - VQT4J15

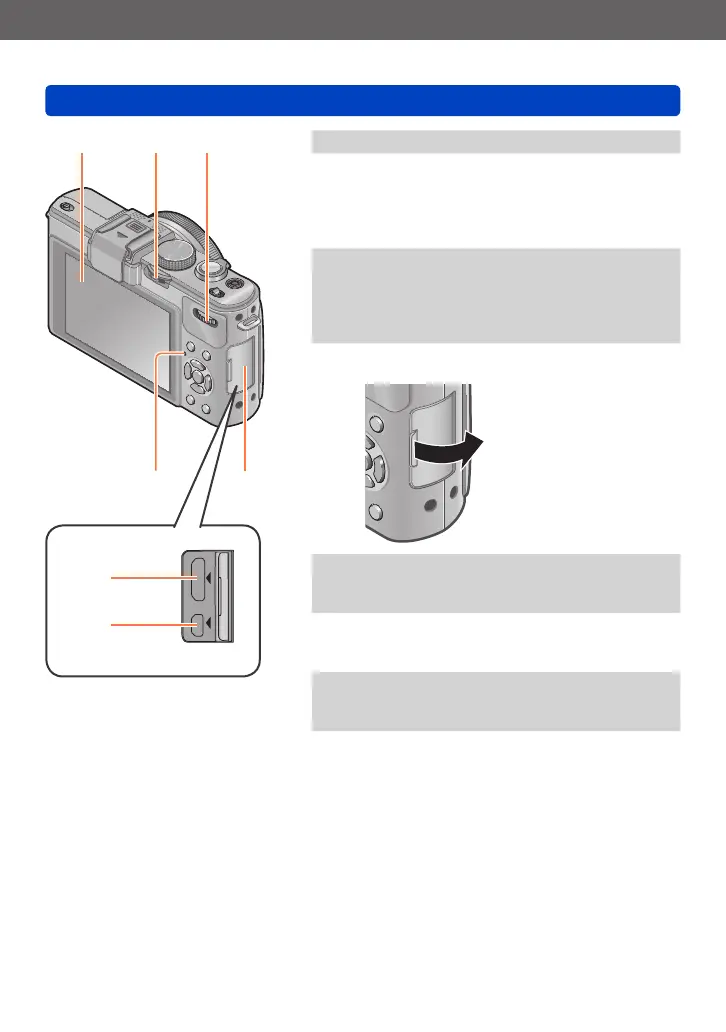

22 LCD monitor (→206)
23 [ND/FOCUS] lever
To operate the lever, move it left or right or
push it in. Use this lever for Manual Focus
adjustment or for turning the built-in ND
filter on/off, etc. (→104, 123)
24 Rear dial
To operate the dial, rotate it left or right or
push it in. Use this dial for operations such
as adjusting the shutter speed or selecting
an operation item. (→61, 62, 124)
25 Terminal cover
How to open the terminal cover
26 [HDMI] socket
Connect the HDMI mini cable (optional) to
this socket. (→183)
27 [AV OUT/DIGITAL] socket
Connect the USB connection cable or AV
cable (optional) to this socket. (→183, 192, 195)
28 Status indicator
This indicator lights up in accordance with
the operating conditions of the camera.
22 23 24
25
26
27
28
