Panasonic MC-CG917

- 46 -

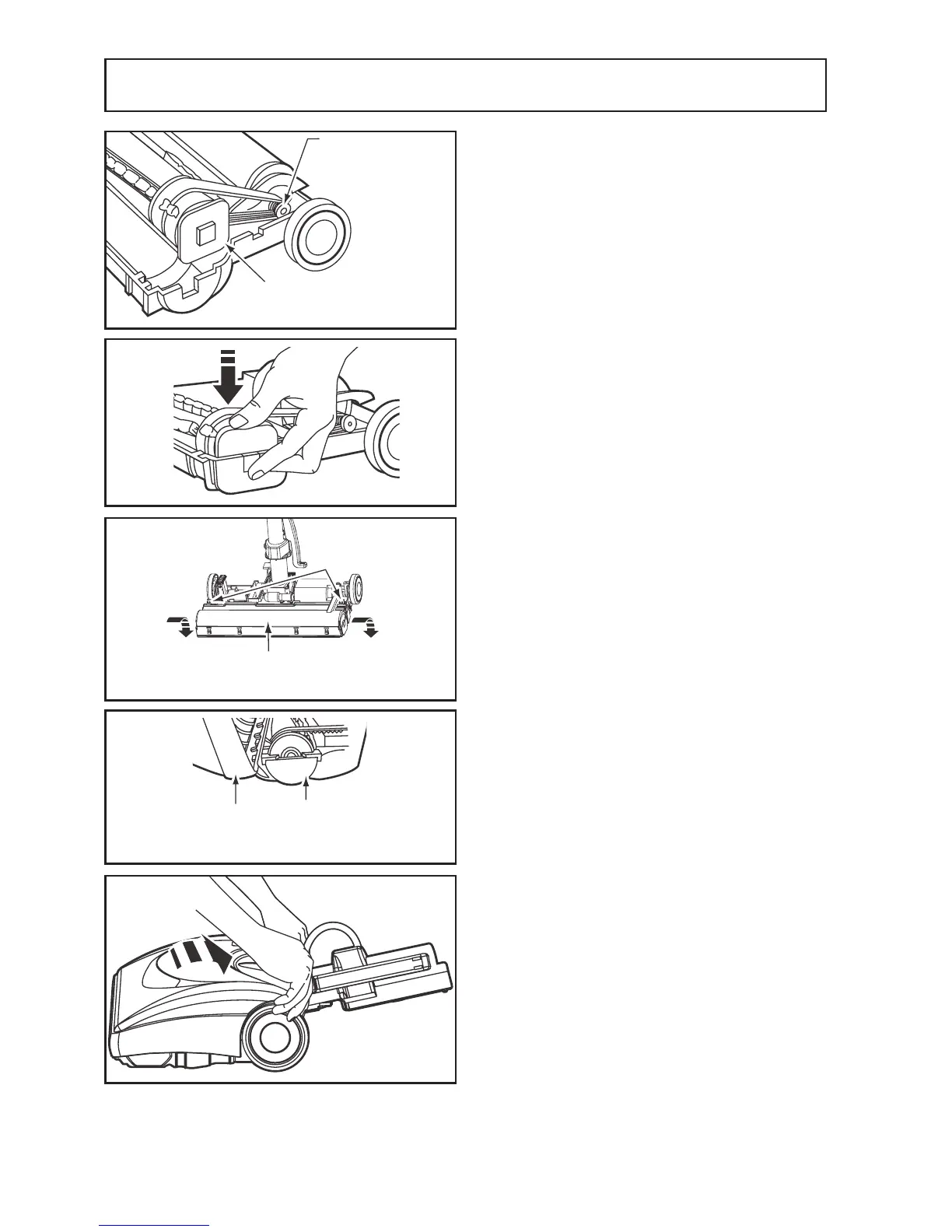

➢ Install new belt in belt groove on
the agitator assembly, then over
the motor shaft.
➢ Place agitator assembly back into
POWER NOZZLE.
➢ Replace agitator cover.
➢ Line up front of cover and base.
➢ Rest cover on front edge of base as
shown.
➢ Tilt cover to back.
➢ Press cover firmly until tabs snap
into place.
➢
Replace cover screws.
Agitator Assembly
Assemblage de l’agitateur
Montaje del agitador
Motor Shaft
Arbre du moteur
Eje del transmissión
del motor
Replacing Belt
Tabs
Languettes
Pestaña
Agitator Cover
Couvercle de l’agitateur
Cubierta del agitador
Cover
Couvercle
Cubierta
Base
Base
Base
