Panasonic MDDLN55BL - Dimensions (Size E 200 V;400 V) - Base Mount (Brackets Moved)

No. SX-DSV03335 - 28-
R2.0 Industrial Device Solution Business Unit, Panasonic Corporation

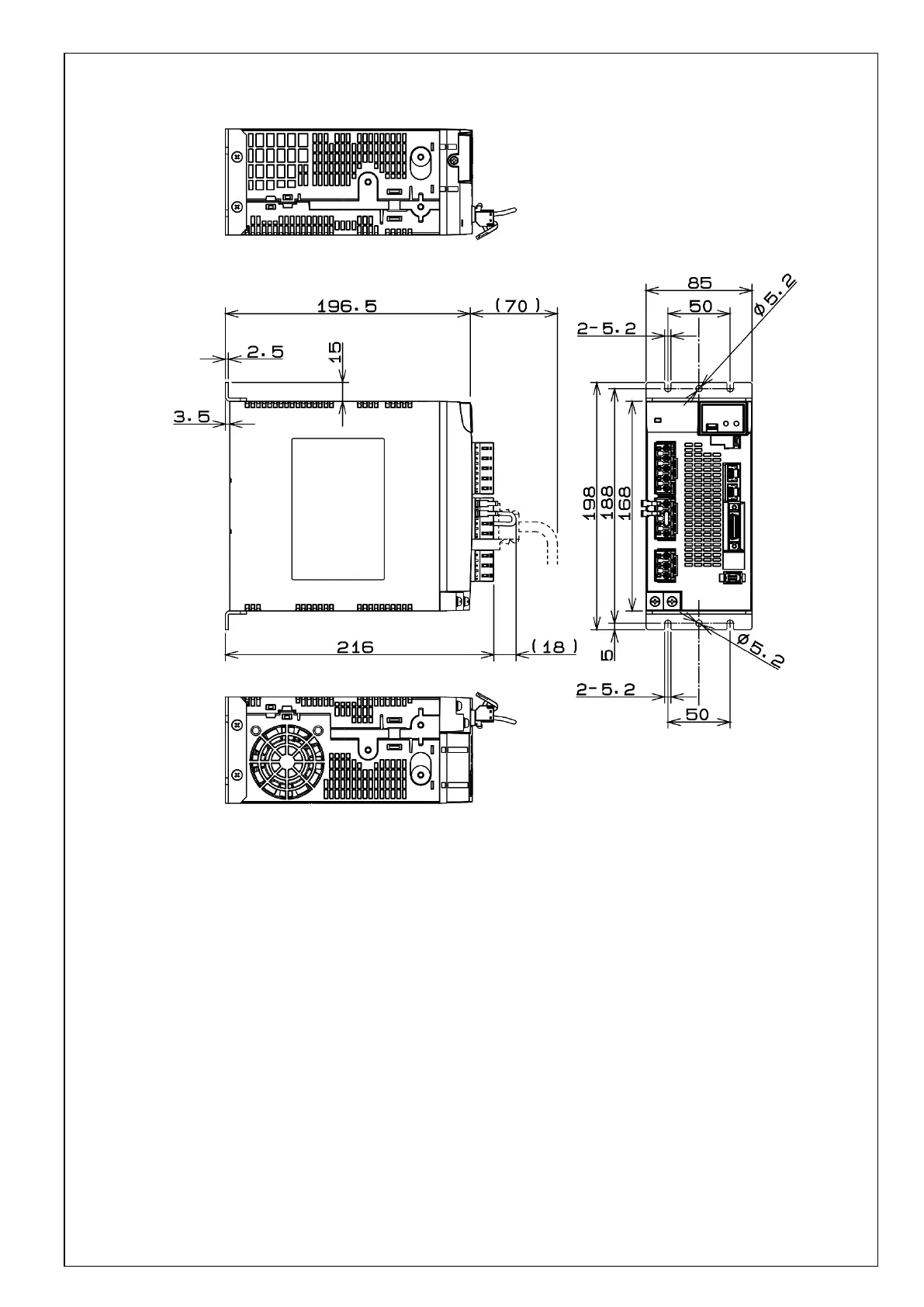

[Base mount installation (with brackets moved: to be installed on the rear)]
Unit: mm
*Do not use threaded screw holes that do not have description of dimensions.
* When installing the servo driver, please fix it with 4 U-shaped cutouts of the mounting bracket.
Rating plate
