DISPOSAL OF BATTERY

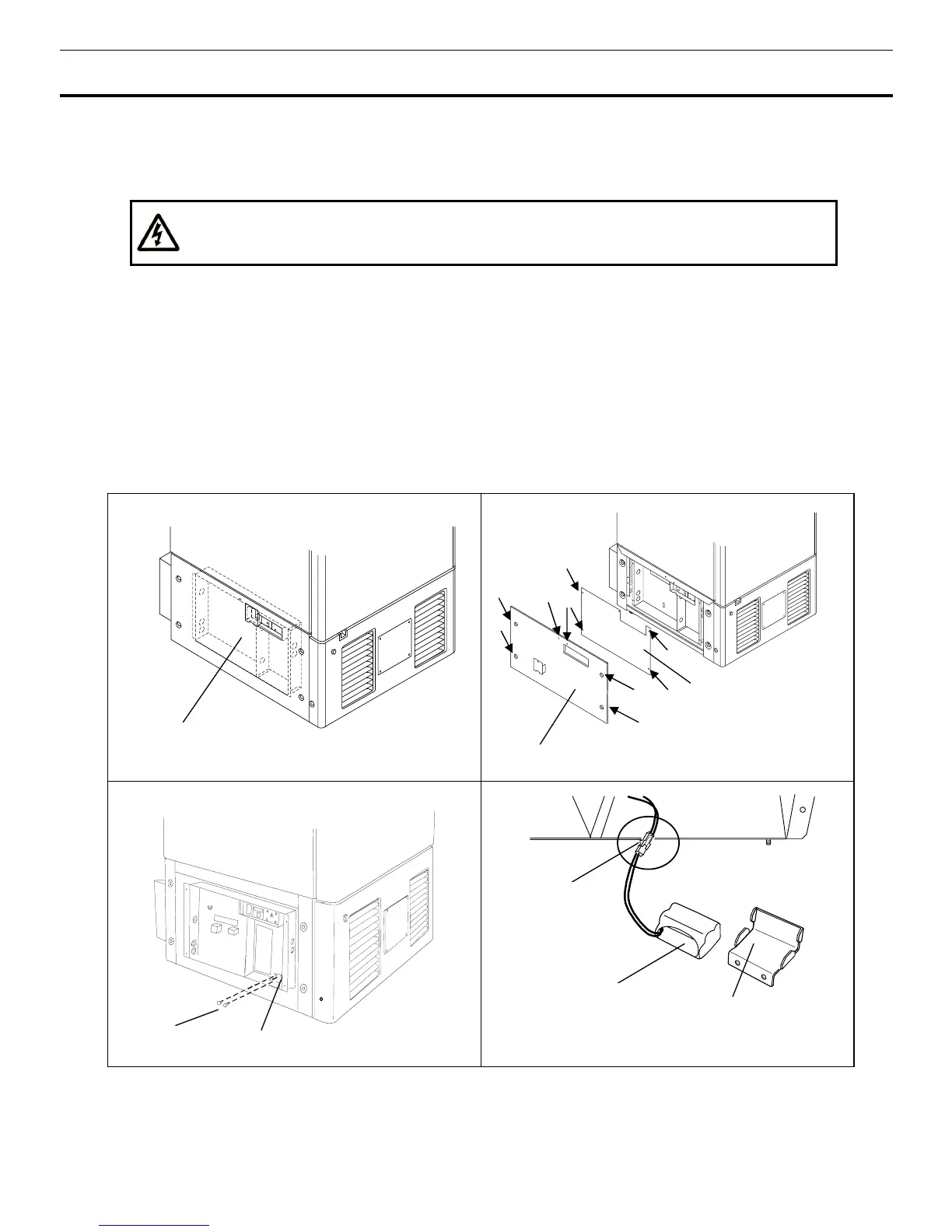

Location of a nickel-metal-hydride battery
This unit is provided a nickel-metal-hydride battery for the power failure warning device. The battery is
located in the electrical box inside the cover on the lower left side. (Fig. 1)
The high voltage components are enclosed in the electrical box. The cover should be removed
by a qualified engineer or a service personnel only to prevent the electric shock.
Disposal of nickel-metal-hydride battery
1.
Turn off the power switch and disconnect the power supply plug.
2. As shown in the Fig. 2, remove 6 screws fixing the side panel with a screw driver and remove the side
cover.
3. Remove 4 screws fixing the electrical box panel with a screw driver. (Fig. 2)
4. Remove 2 screws fixing the battery mounting plate. (Fig. 3) Disconnect the battery connector (Fig.4)
5. Take out the battery.(Fig.4)
6. Follow the procedure for recycling or proper disposal to prevent the electric shock.
Fig. 4
battery mounting
plate
Fig. 2
Side panel
Screw
Fig.3
Fig. 1
Electrical box
battery mounting
plate
Battery
Connector
Electrical box
panel
