Panasonic MFDLTB4BM - Page 29

No. SX-DSV03335 - 27-
R2.0 Industrial Device Solution Business Unit, Panasonic Corporation
Size E 200 V / 400 V

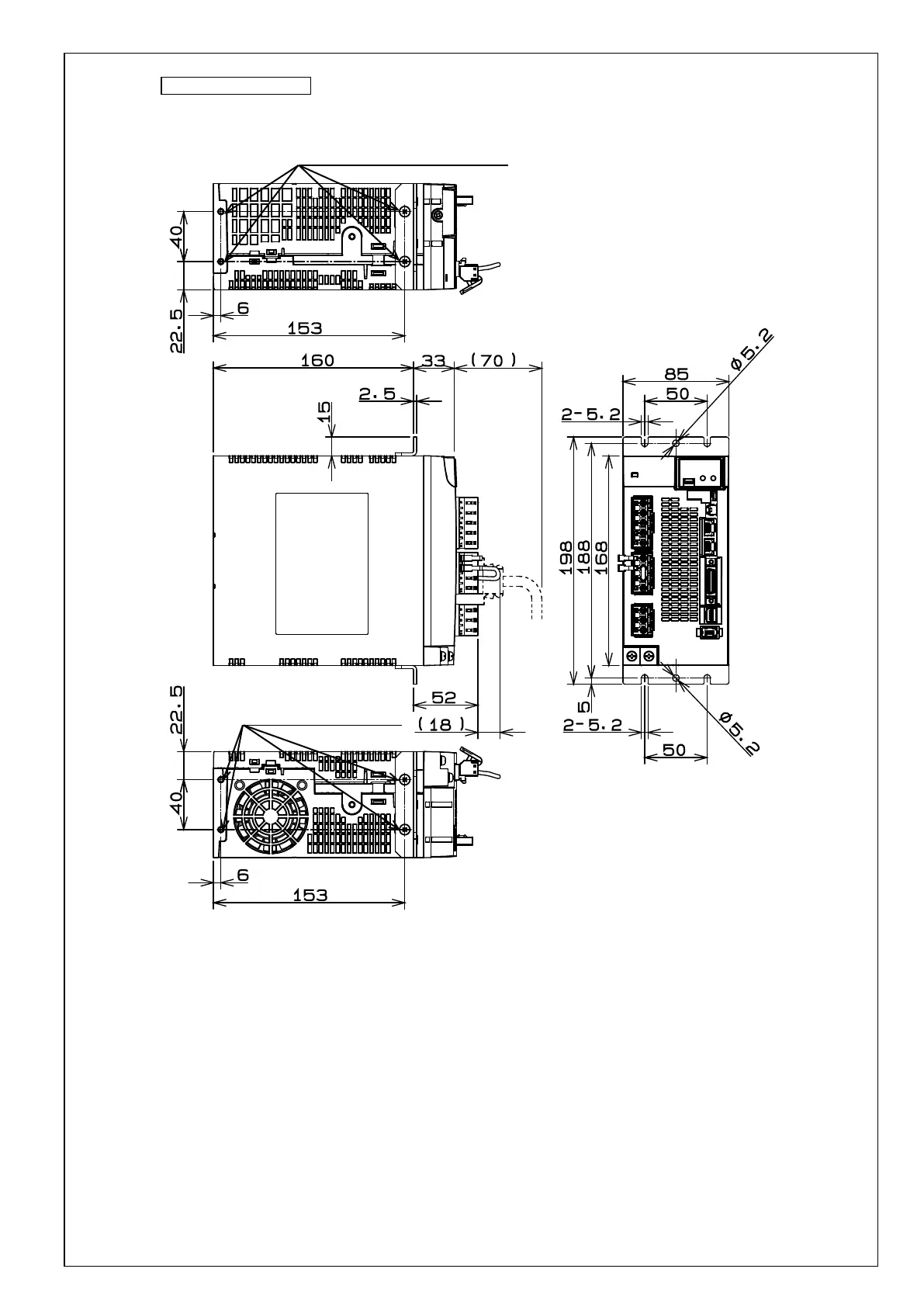

[Rack mount installation (Standard: Mounting on the back)]
Unit: mm
*Do not use threaded screw holes that do not have description of dimensions.
* When installing the servo driver, please fix it with 4 U-shaped cutouts of the mounting bracket.
Name
Plate
4-M4 Effective screw depth 5
4-M4 Effective screw depth 5
