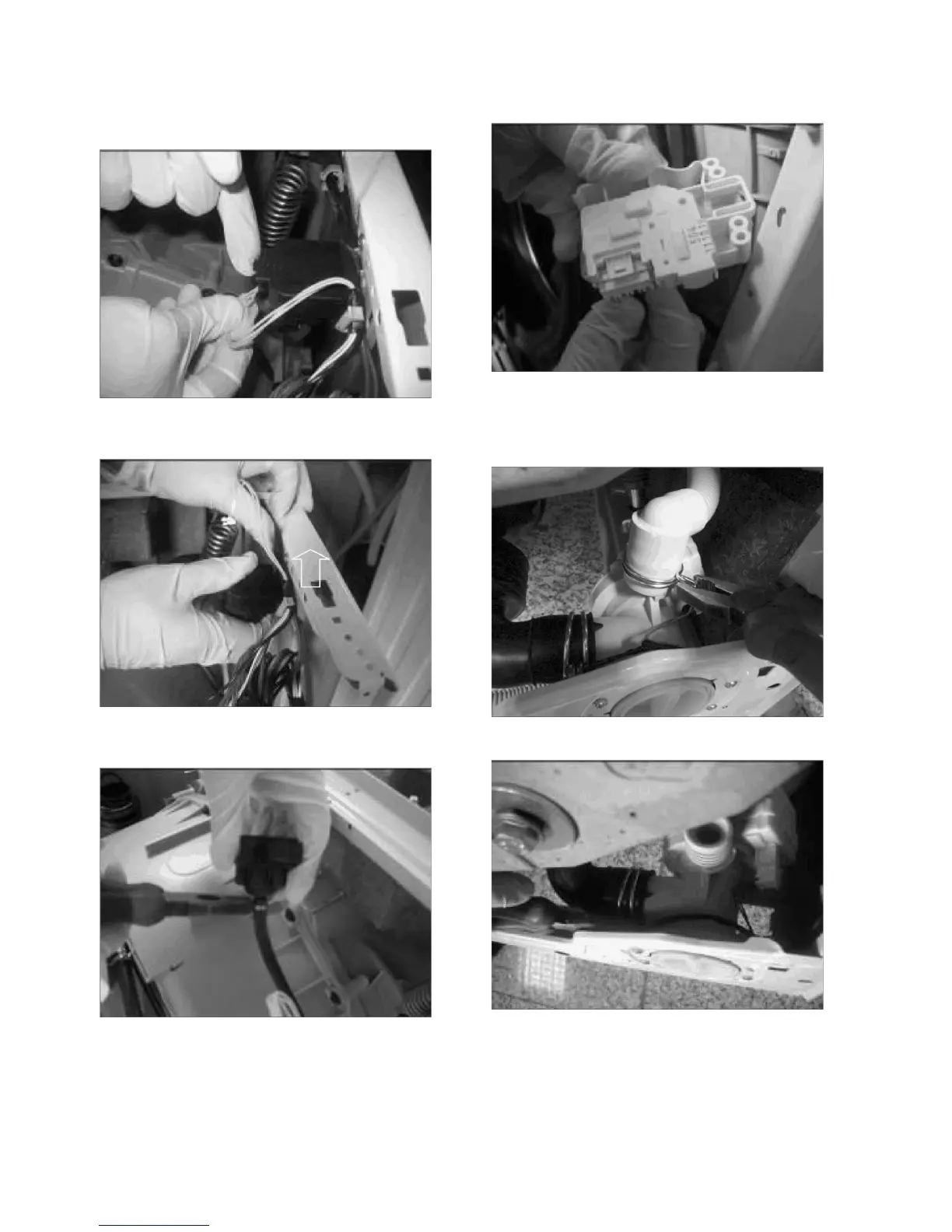

10.12. Electronic Pressure Switch
(EPS)
1. Remove the connector that is connected to the EPS.
2. Pull the EPS upward to remove as it is shown in the pic-
ture.
3. Remove the EPS hose handcuffs and EPS hose as it is
shown in the picture.
10.13. Door Lock
1. Remove the connector that is connected to the door lock.
10.14. Pump Motor
1. Remove pipe clip that fixes the drain hose.
2. Remove pipe clip fixing the tub outlet hose.
To Next Page
