30

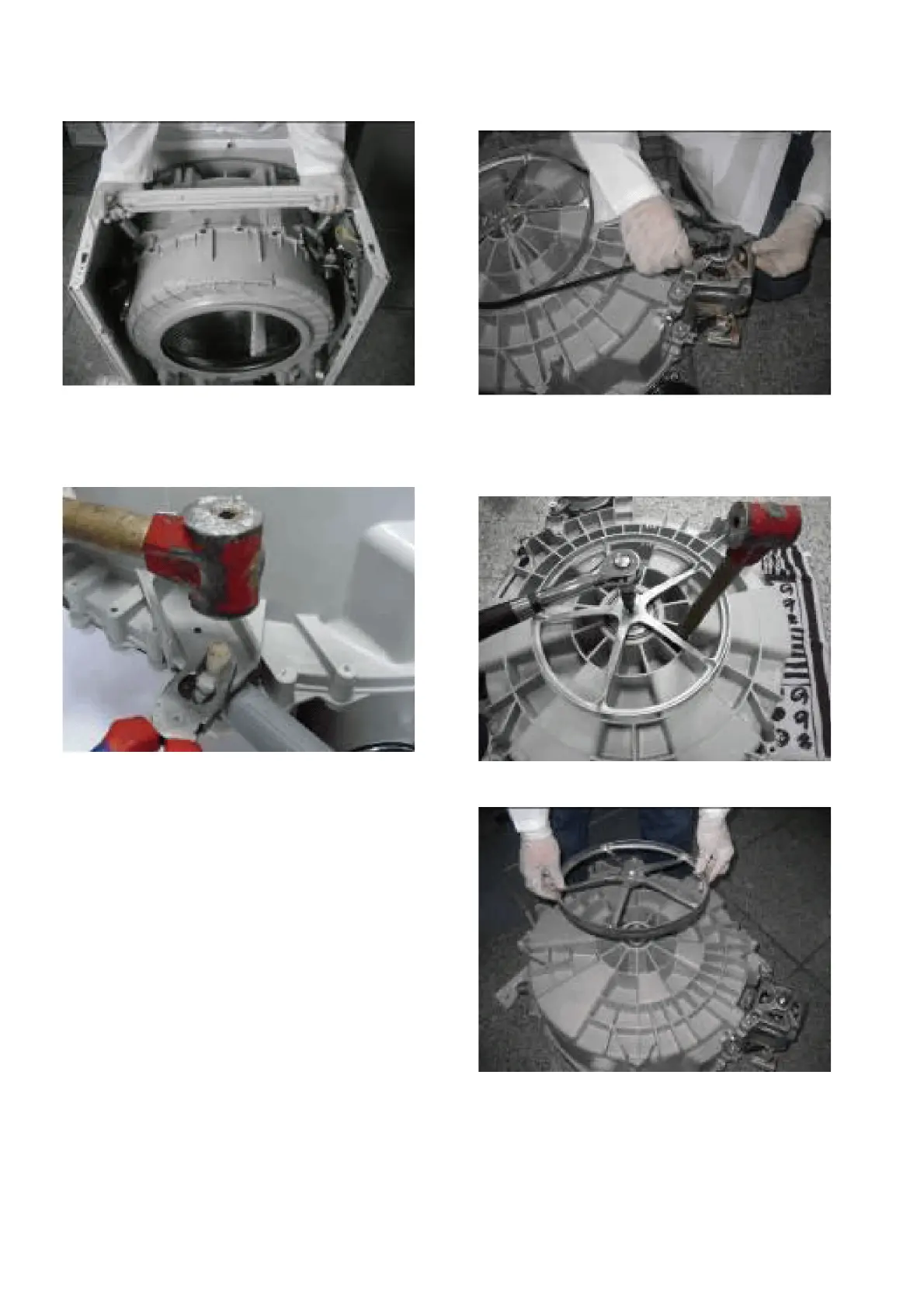

4. Remove the washing group carrying it out through front
side.
10.22. Shock Absorber Pin
1. Remove shock absorber pins squeezing the ratchet by a
pliers.
10.23. Belt
1. Remove the belt rotating the driven pulley.
10.24. Driven Pulley
1. Remove the bolt at the center of pulley by tucking a
wooden bar avoids rotation.
2. Remove pulley.
