Panasonic NA-128VB6WAE

44
13 Exploded View and Replacement Parts List
13.1. Control Panel Spare Parts

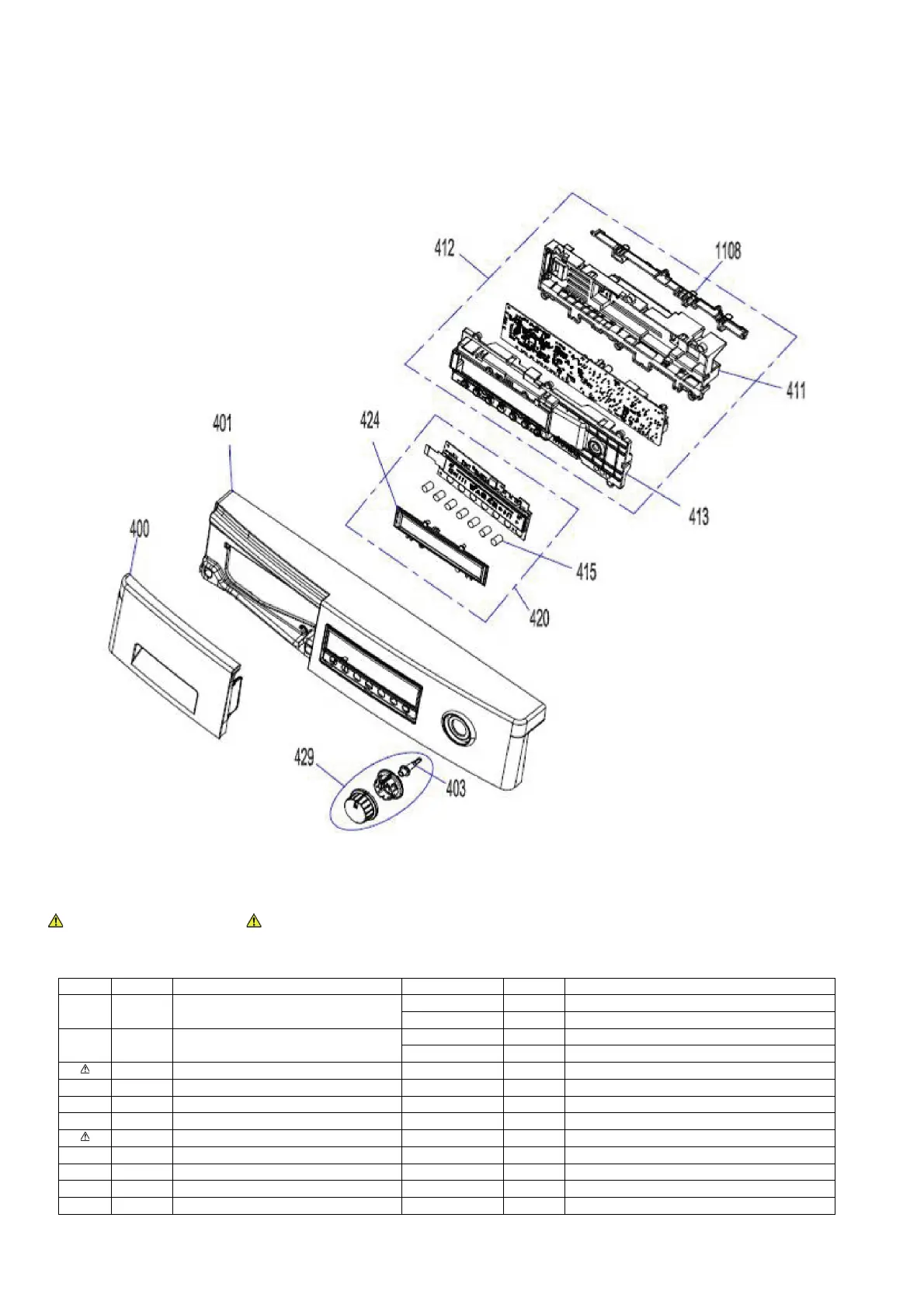

13.1.1. Exploded View of Control Panel Parts
13.1.2. Control Panel Spare Parts
(U) : Indicates parts at the remarks that can be replaced by user.
: Components identified with have special characteristics important for safety. When replacing any of these components use
only manufacture’s specified parts.
Safety Ref. No. Part Name & Description Parts No. Qty Remarks
400 DETERGENT DRAWER COVER AXWDV-144368 1 NA-128VB6WAE
AXWDV-144374 1 NA-128VB6WPG
401 CONTROL PANEL AXWCV-144367 1 NA-128VB6WAE
AXWCV-144373 1 NA-128VB6WPG
412 ELECTRONIC CARD GR. AXW24V-64704 1
411 PCB BOX AXWPB-128166 1
413 PCB BOX REAR COVER AXW2CF-91225 1
415 TOUCH BUTTONS AXW146-19208 1
420 FL CARD GROUP AXW146-57870 1
424 LCD FRAME AXWLF-134899 1
403 PROGRAM ADJUSTMENT SHAFT AXWSH-069325 1
429 PR. ADJ.KNOB GR AXWSH-132581 1
1108 SOCKET HOLDER/K200-1 AXWSH-132583 1
