How to connect for the left side How to connect for the right side
~ 105 cm
~
130 cm
~ 100 cm
~
135 cm
~ 90 cm
~ 140 cm
0 – max. 100 cm

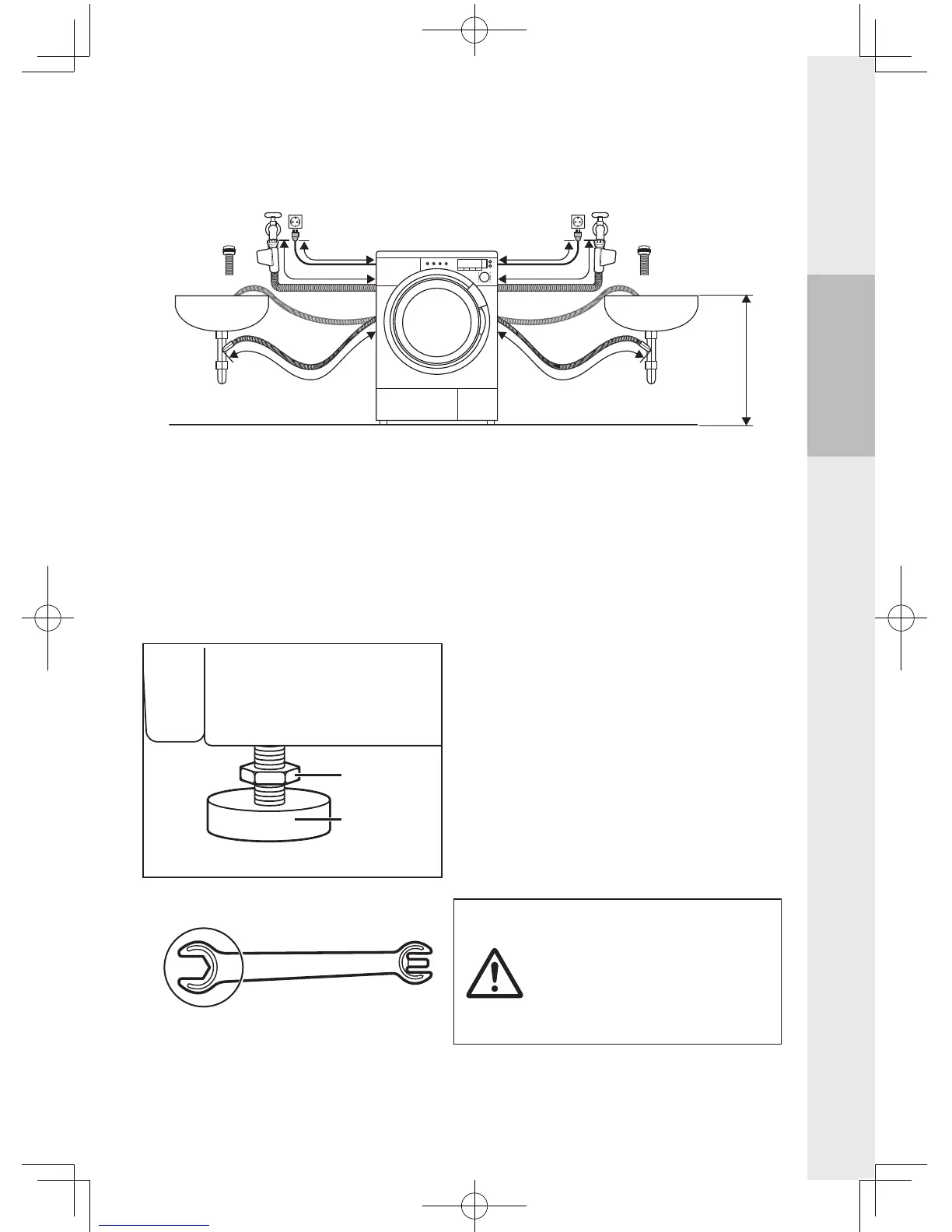

Hose and cable lengths
Levelling the washing machine
● Using a level facilitates the adjustment.
● When adjusting the washing machine to make it level, ensure all four stands are
supporting it:
Lock nut
Stand
1
Oneachstand,loosenthelocknutby
turning it clockwise using the A end of
the spanner supplied.
2
Adjustallfourstandsinthisway.
3
Use a spirit level to ensure the
washing machine is standing
correctly.
4
Tighten each lock nut by turning it
anti-clockwise (towards the washing
machinebody),againusingtheAend
of the spanner supplied.
A
B
Ensure all four lock nuts are
tightened securely. Check
the stands are still bolted
to the washing machine
–ifthey’reunbolted,the
washing machine will move
around.
● To adjust the stands, use A side of the included spanner.
