28

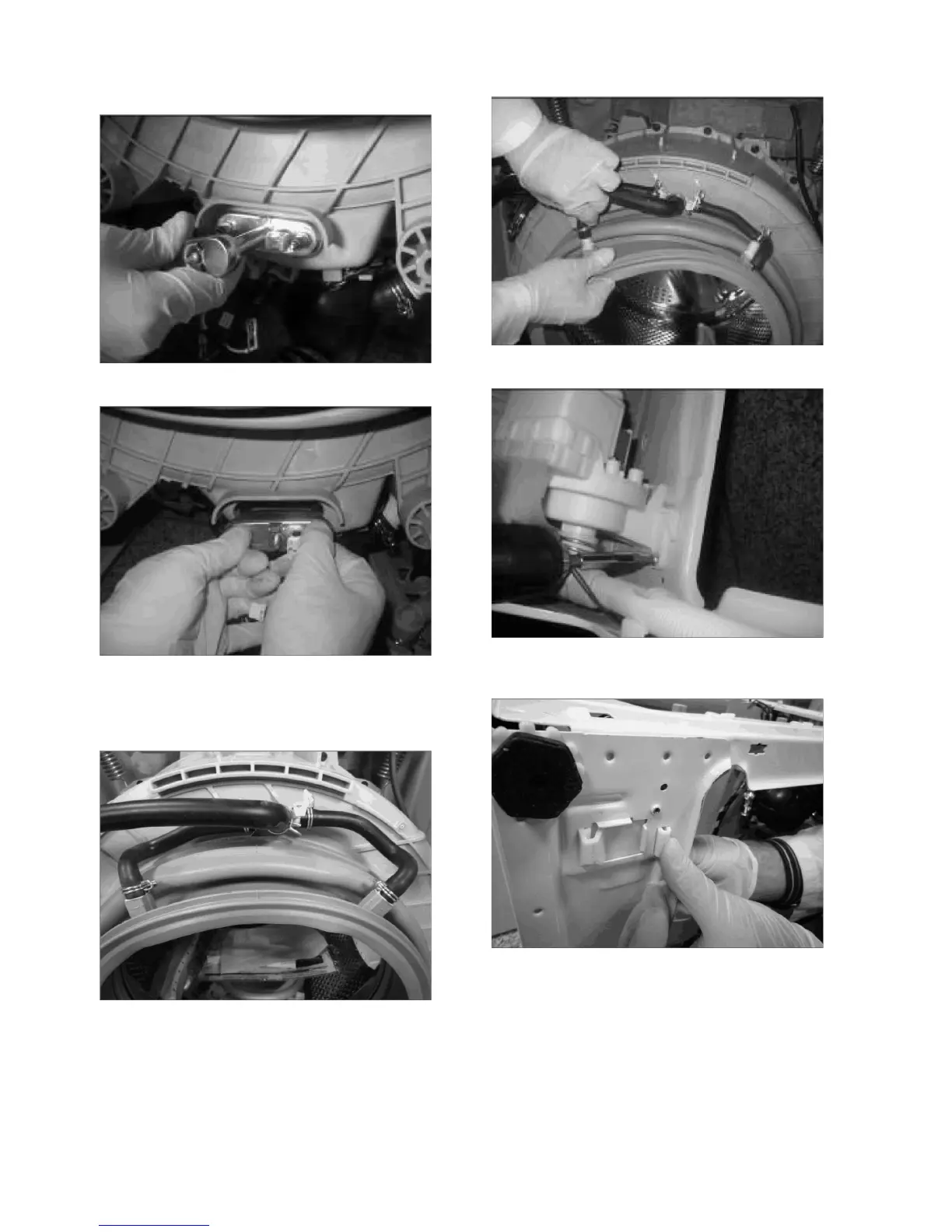

2. Remove one nut fixing the heater slightly. (box wrench
size 8 mm)
3. Hold the heater and pull it out.
10.17. Twinjet System
1. Remove pipe clip fixing the twinjet hose.
2. Remove the two twinjet hoses from the gasket.
3. Remove screw fixing the circulation pump. (using T20)
4. After lay down the washer on its rear side, and press the
pawl inward.
To Next Page
