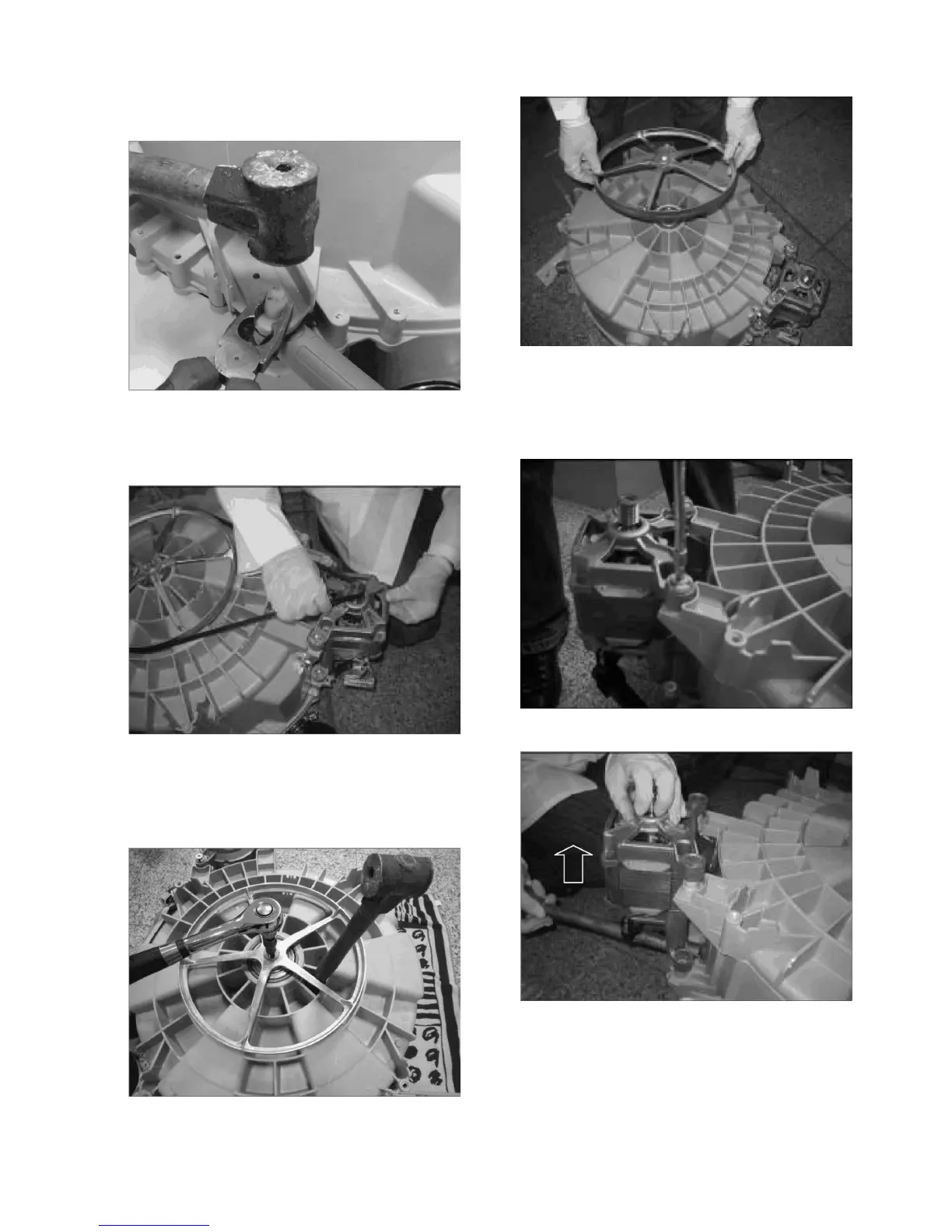

10.22. Shock Absorber PIN
1. Remove two pins fixing the shock absorber as shown in
the picture.
10.23. Belt
1. Remove the belt as it is shown the picture.
10.24. Driven Pulley
1. Remove the screw fixing driven pulley it is shown the pic-
ture (By using T40).
2. Remove the driven pulley it is shown the picture.
10.25. Motor
1. Remove the four screws fastening the motor under the
tub by using T40.
2. Pull the motor up for disassembly.
