Panasonic NA-F150A3

Important safety notice :
Components identifi ed by mark have special characteristics important for safety.
When replacing any of these components, use only manufacturer's specifi ed part.

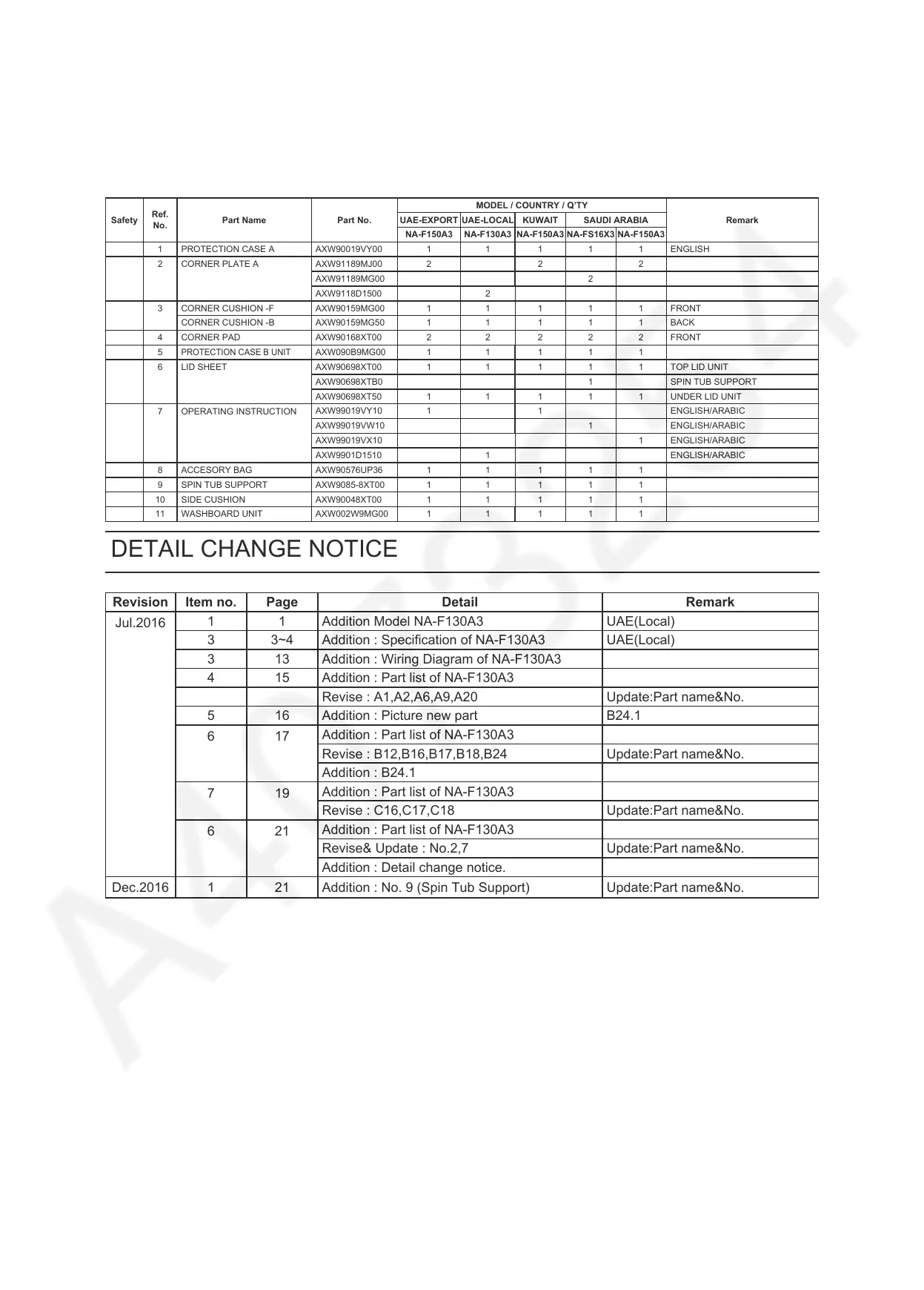

REPLACEMENT PARTS LIST
Part List : Packing
Safety
Ref.
No.
Part Name Part No.
MODEL / COUNTRY / Q’TY
RemarkUAE-EXPORT UAE-LOCAL KUWAIT SAUDI ARABIA
NA-F150A3 NA-F130A3 NA-F150A3 NA-FS16X3 NA-F150A3
1 PROTECTION CASE A AXW90019VY00 1 1 1 1 1 ENGLISH
2 CORNER PLATE A
AXW91189MJ00 2 2 2
AXW91189MG00 2
AXW9118D1500 2
3
CORNER CUSHION -F AXW90159MG00 1 1 1 1 1 FRONT
CORNER CUSHION -B AXW90159MG50 1 1 1 1 1 BACK
4 CORNER PAD AXW90168XT00 2 2 2 2 2 FRONT
5
PROTECTION CASE B UNIT AXW090B9MG00 1 1 1 1 1
6 LID SHEET
AXW90698XT00 1 1 1 1 1 TOP LID UNIT
AXW90698XTB0 1 SPIN TUB SUPPORT
AXW90698XT50 1 1 1 1 1 UNDER LID UNIT
7 OPERATING INSTRUCTION
AXW99019VY10 1 1 ENGLISH/ARABIC
AXW99019VW10 1 ENGLISH/ARABIC
AXW99019VX10 1 ENGLISH/ARABIC
AXW9901D1510 1 ENGLISH/ARABIC
8 ACCESORY BAG AXW90576UP36 1 1 1 1 1
9 SPIN TUB SUPPORT AXW9085-8XT00 1 1 1 1 1
10 SIDE CUSHION AXW90048XT00 1 1 1 1 1
11 WASHBOARD UNIT AXW002W9MG00 1 1 1 1 1
DETAIL CHANGE NOTICE
Revision Item no. Page Detail Remark
Jul.2016
1 1 Addition Model NA-F130A3 UAE(Local)
3 3~4 Addition : Specifi cation of NA-F130A3 UAE(Local)
3 13 Addition : Wiring Diagram of NA-F130A3
4 15 Addition : Part list of NA-F130A3
Revise : A1,A2,A6,A9,A20 Update:Part name&No.
5 16 Addition : Picture new part B24.1
617
Addition : Part list of NA-F130A3
Revise : B12,B16,B17,B18,B24 Update:Part name&No.
Addition : B24.1
719
Addition : Part list of NA-F130A3
Revise : C16,C17,C18 Update:Part name&No.
621
Addition : Part list of NA-F130A3
Revise& Update : No.2,7 Update:Part name&No.
Addition : Detail change notice.
Dec.2016 1 21
Addition : No. 9 (Spin Tub Support) Update:Part name&No.
- 21 -
