- 16 -
NC-BH30P, BH40P

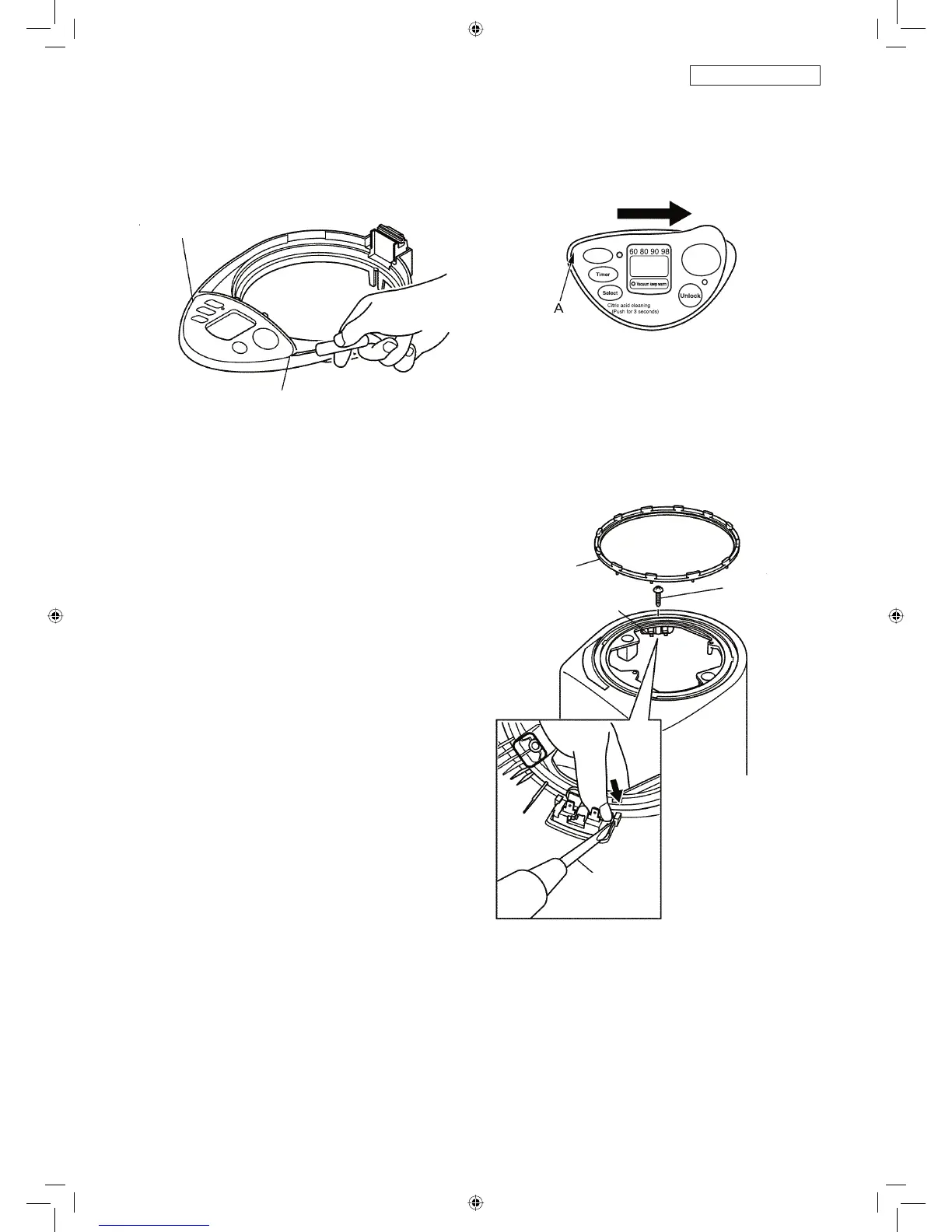

3.9. Name B (decorative panel)
1. Remove the name B panel by picking with a bladed
screwdriver or a pin at point “A”.
Name B
(decorative panel)
Point A
Points in reassembling
• Affi x name A in the direction of the arrow starting from
point A.
DISASSEMBLY-9
3.10. Peg Frame
1. Remove the bottom ring upward using a bladed
screwdriver or the like.
2. Remove the self- tapping screw.
3. Insert the bladed screwdriver between rib of the
peg frame and rib of the body. Then turn the bladed
screwdriver to the right hand direction and push
angle plate sharply to release it.
Point in Reassembling
• When the body or the bottom ring is replaced, apply a
friction reducing agent. It does not turn smoothly if the
volume of the friction deducing agent is insuffi cient.
Bottom ring
Peg frame
4x12 self-
tapping screw
Bladed
screw driver
DISASSEMBLY-10
Reboil
Pour
out
Long Boil
NC-BH40-30-22.indd 16NC-BH40-30-22.indd 16 14-08-07 16:48:0514-08-07 16:48:05
