NC-BH30P, BH40P

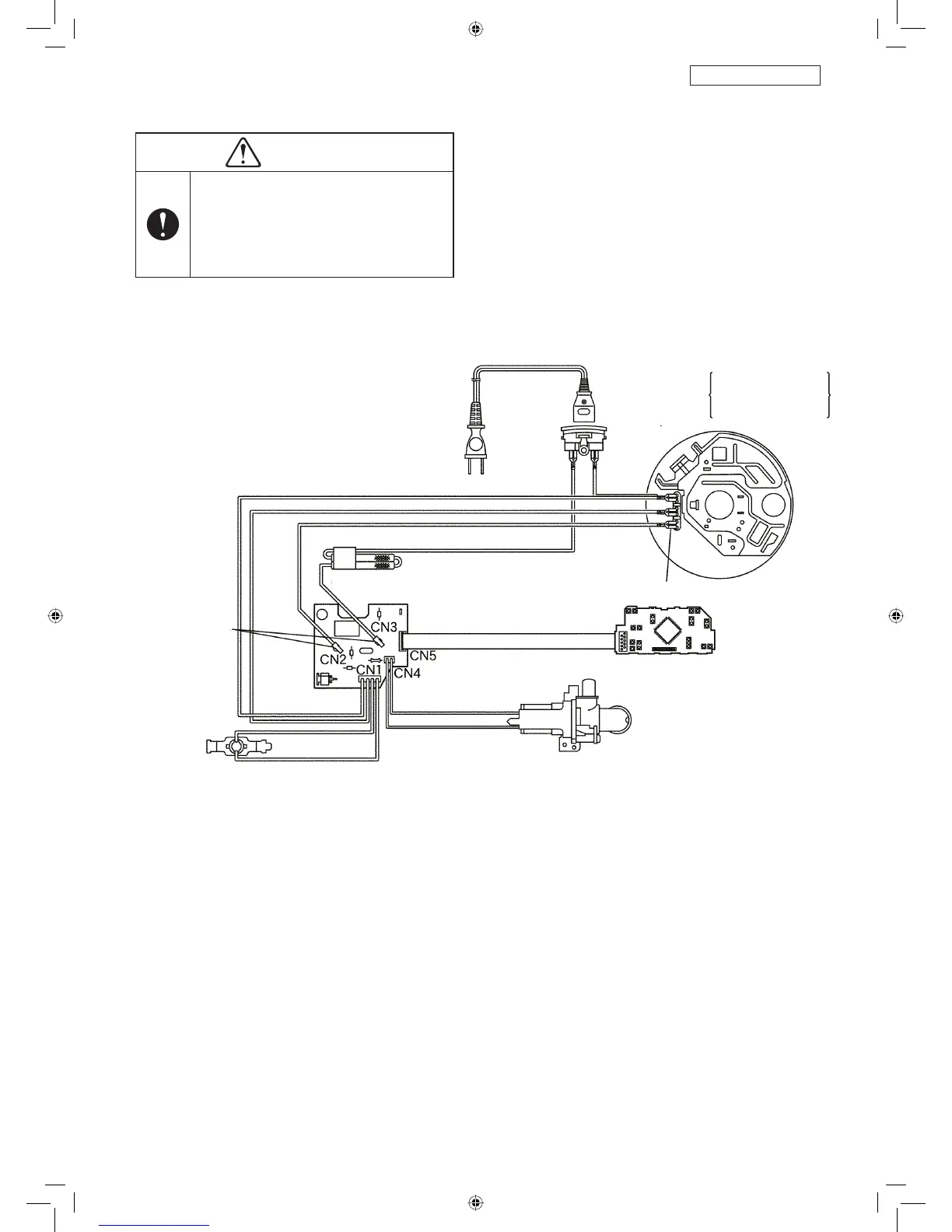

4.2. Basic wiring diagram
CAUTION
After the repair, replace the original
wiring layout.
Otherwise the lead wires may contact
adjacent components causing failure
or electric shock.
Power cord
Peg frame
with built-in boiling
and keep warm
heaters.
Container comp.
White
White
White
Yellow
Fasten terminals
with stopper
Red
Blue
Fasten terminals with stopper
Lead wire E comp.
Control unit A (Bottom)
Red
Control unit B (Operation)
Thermistor comp.
Blue
Motorized pump
Thermal Fuse Comp.
Orange
Blue
