NC-BH30P, BH40P

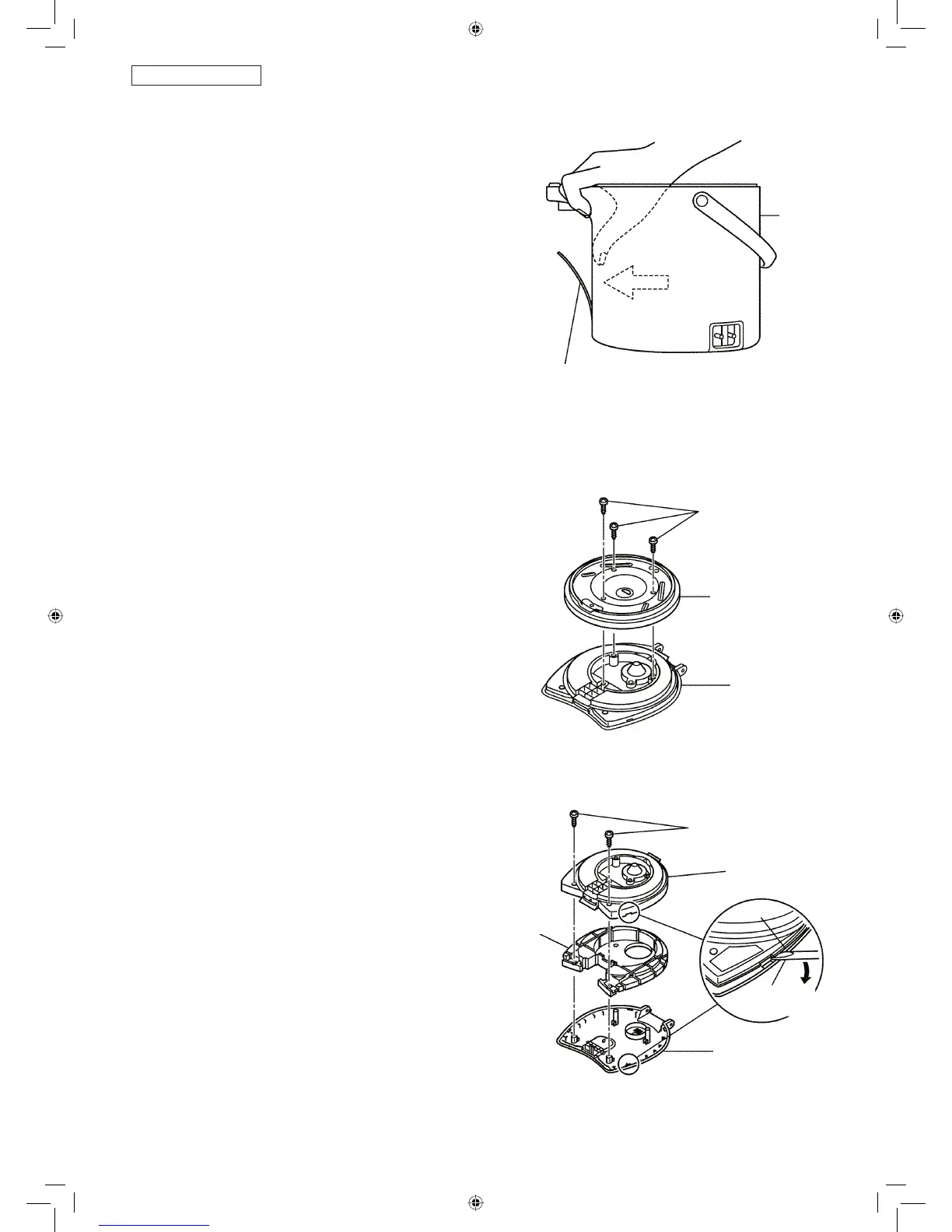

3.11. Name A
1. Push out transparent portion of water supply and
gauge cover from inside the body with the thumb.
Body
Push with
thumb
Name A with the water feed and
the water gauge cover
3.12. Lid comp. and Inner lid
1. Remove the 3 screws.
2. Remove the lnner lid.
4x20 self-tapping
screws (Stainless)
Inner lid
Lid comp.
3.13. Lid A and Lid cover comp.
1. Remove the 2 screws.
2. Put a thin bladed screwdriver or the like between
the lid and the lid cover comp., and lever it to
separate them.
3. Remove the thermal insulator B.
DISASSEMBLY-12
4x20 self-tapping
screws (Stainless)
Lid cover comp.
Thermal insulator B
DISASSEMBLY-11
Bladed
screwdriver
Lid A
DISASSEMBLY-13
Gap
