㈩✢࿑
 ⚿✢࿑
Relationship of LEDs and switches
on the control unit B (Operation)
and relevant indicators.
LED Indication Color
LED1 Reboil Red
LED2 Vacuum keep
warm
Orange
LED3 Unlock Red
Switch Indication
SW1 Reboil
SW2 Timer
SW3 Select
SW4 Unlock
SW5 Pour out
- 19 -
NC-BH30P, BH40P

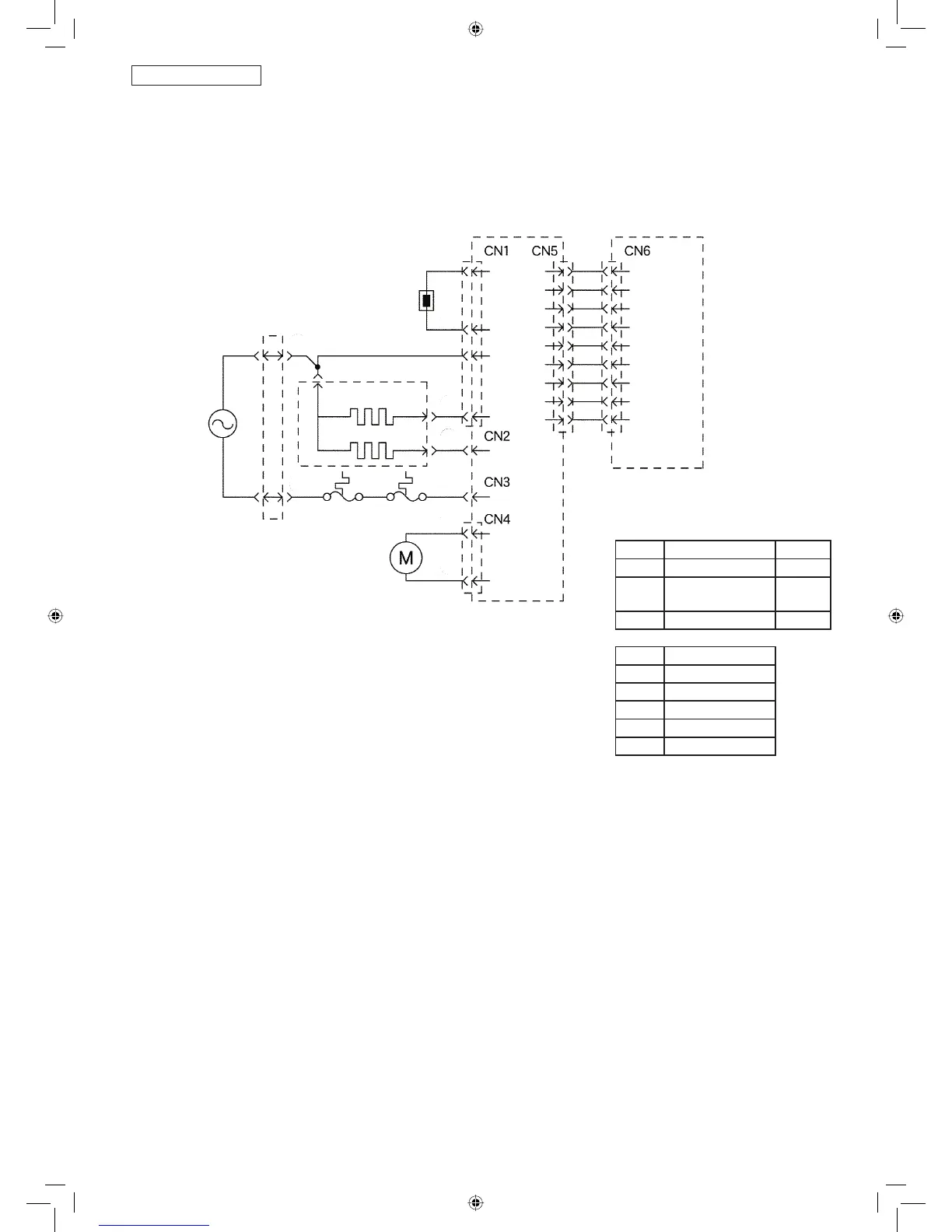

4 Schematic diagram
4.1. Wiring connection diagram
Control unit A
(Bottom)
Control unit B
(Operation)
Thermistor
comp.
Peg frame
Br
Container comp.
Keep warm heater 75W
Main heater 700W
White
Thermal fuse
comp.
Blue
White
White
Yellow
Red
Blue
Red
Orange
Motorized pump
NC-BH40-30-22.indd 19NC-BH40-30-22.indd 19 14-08-07 16:48:0714-08-07 16:48:07
